CATTABRIGA EFFE4 B - Disassembling the Parts in Contact with Product

EFFE4 B - EFFE6 B
- 26 -
EFFE4-6 B_EN - 2010/07 Ed. 05
4. Lower the hair saver cover tube by turning it clockwise and
placing it on the bottom.
Fig. 18
5. Remove the rod protection.
Fig. 17

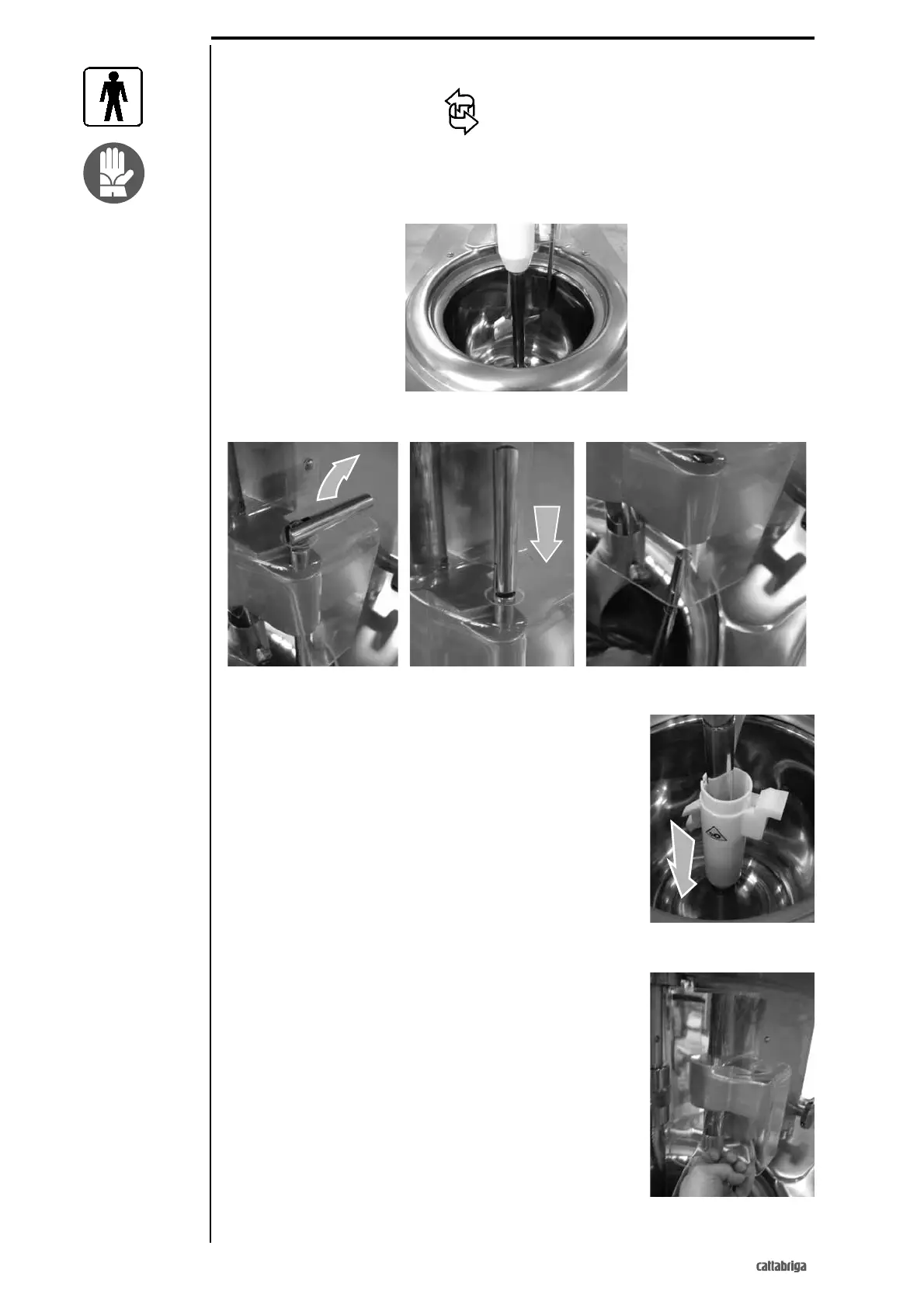

6.2 DISASSEMBLING PARTS IN CONTACT
WITH PRODUCT
1. Turn the selector switch to the position (MOTOGELATIERA function) to make the
spatula carrier rod rise to the top dead centre position; it is the highest point that the spatula
carrier shaft reaches. It is visualised just at the moment prior to the rotation of the spatula
towards the whipping chamber; at that point stop the machine.
2. Remove the transparent cover from the whipping chamber.
3. Remove the rod by turning the upper knob (refer to Fig. 16 A-B) and sliding it out downwards
(refer to Fig. 16 C).
Fig. 15
Fig. 16
ABC
