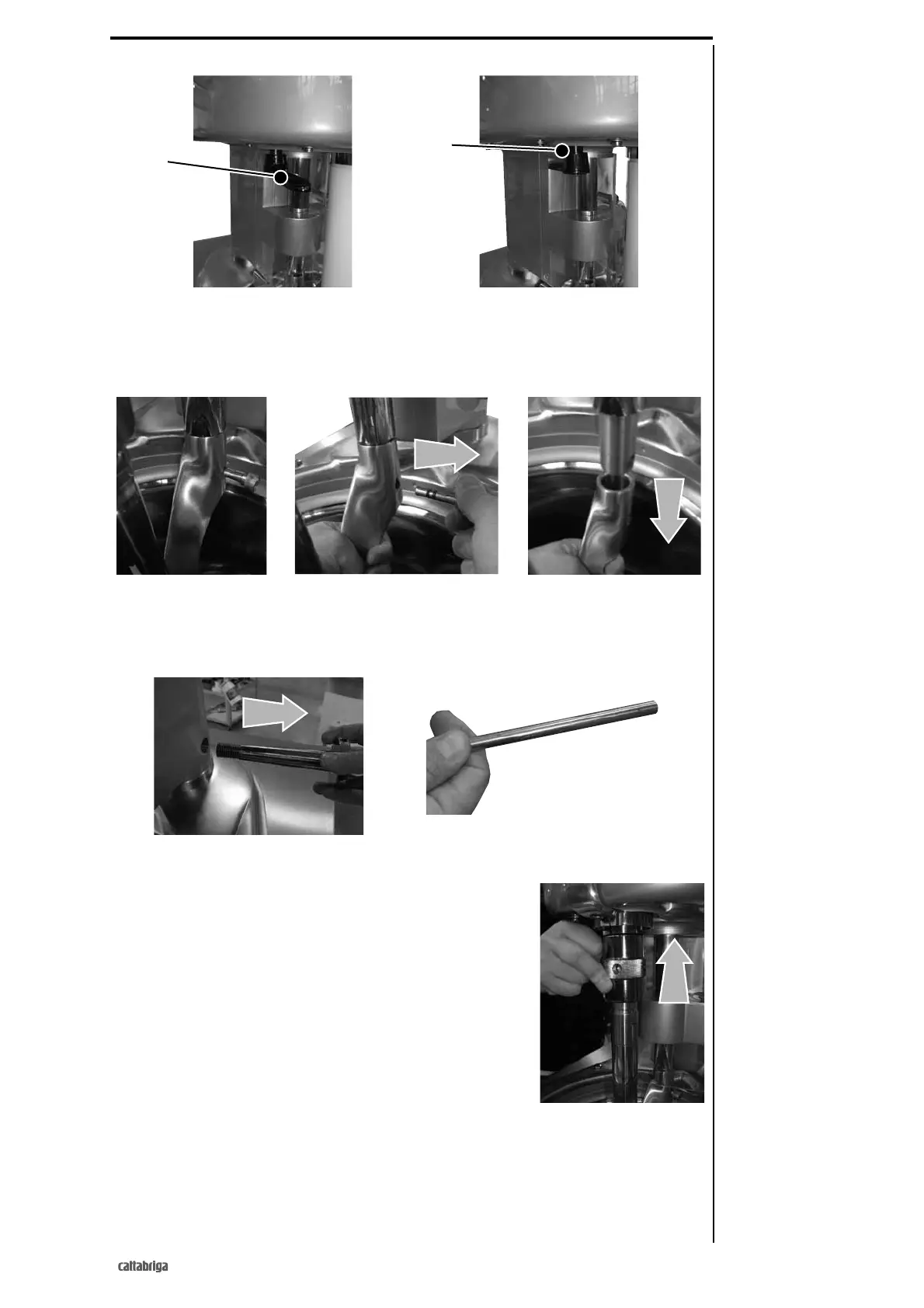

7. Slide out the small knob of the spatula, rotating and pulling it towards the right and simulta-
neously supporting the spatula. Remove the spatula by pulling it downwards.
6. Turn the black handle from position 1 (Fig. 19) to position 2 (Fig. 20).
1
2
Fig. 19 Fig. 20
Fig. 21
9. Lift the sliding sleeve to uncover the coupling joint between the
whipping chamber shaft and the motor shaft.
Fig. 24
8. Unscrew the conical fixing knob (Fig. 22) of the head utilising the appropriate tool (Fig. 23)
if it is excessively difficult to unscrew it.
Fig. 22 Fig. 23
