CATTABRIGA EFFE4 B - Room Necessary to the Machine Use; Positioning

EFFE4 B - EFFE6 B
EFFE4-6 B_EN - 2010/07 Ed. 05
- 15 -
3. INSTALLATION
The machine must be installed in conformity with relevant standards solely by technicians being
expert in this specific kind of machine.

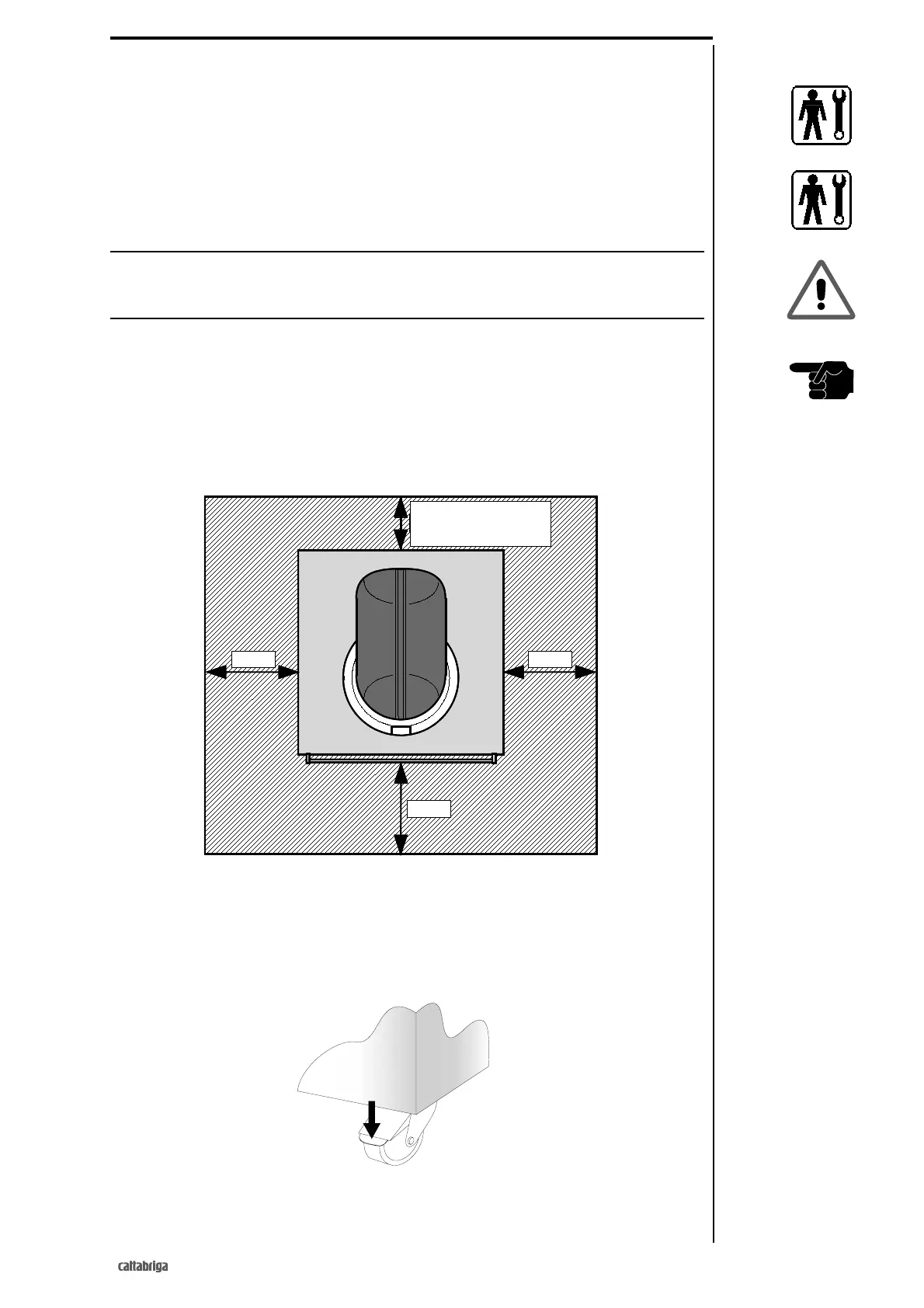

3.1 ROOM NECESSARY TO THE MACHINE USE
The machine must be installed in such a way that air can freely circulate allaround.
Rooms for the approach to the machine must be left free in order to enable the operator to act
without constraint and also to immediately leave working area, if need be.
Approach room to the machine operational area should be 150 cm at least.
CAUTION
Machines with aircooled condensers must be installed no closer than 50 cm to the rear
wall, in order to allow a free air circulation around the condenser.
NOTE:
An insufficient air circulation affects operation and output capacity of the machine.
150
150
150
min. 50 cm.
machines with
aircooled condenser
3.1.1 Positioning
For an easy location, the machine has been provided with castors having mechanical locks, which
once engaged, prevent the machine from moving, and so keeping it still.
Fig. 7
Fig. 8
