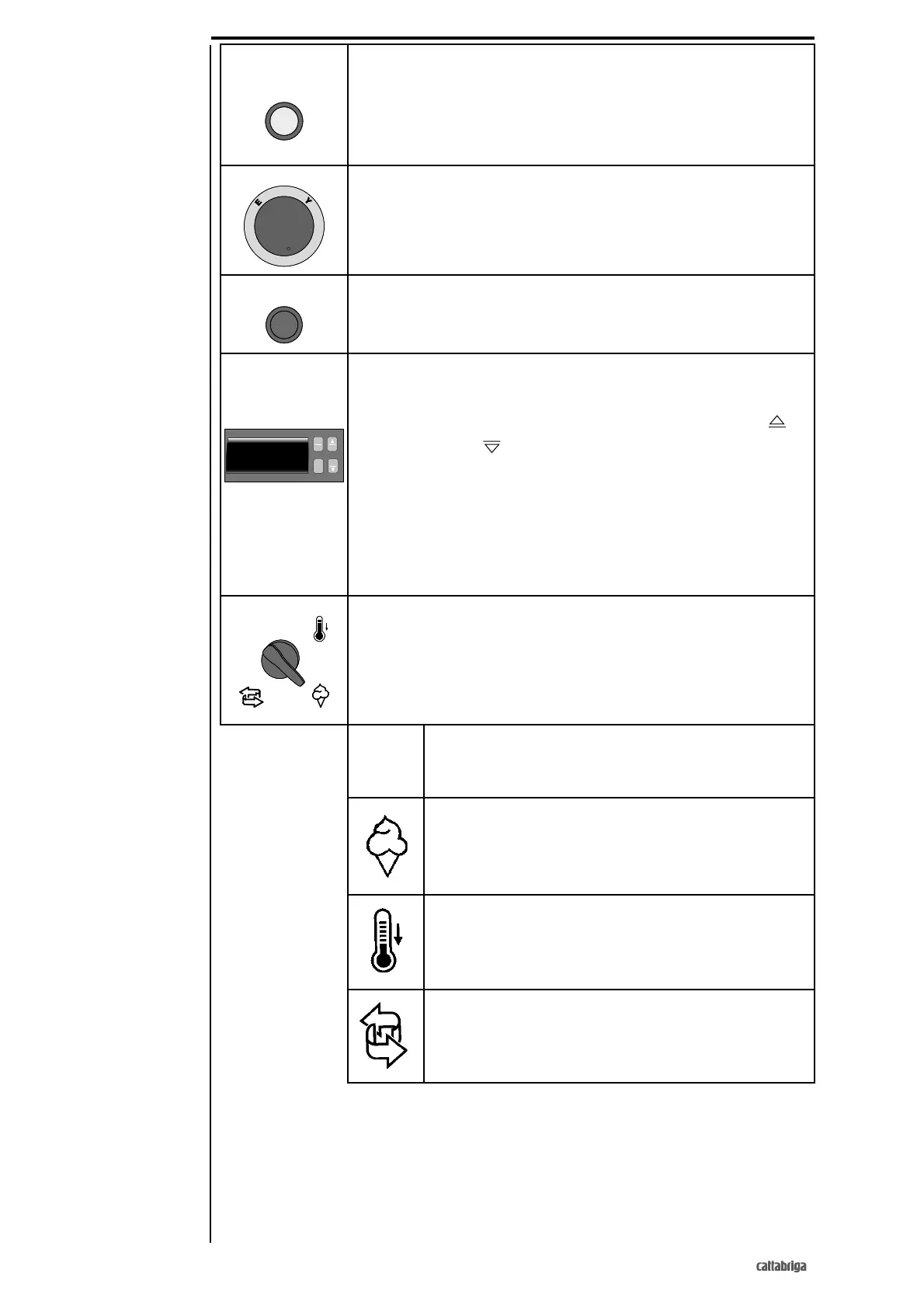

START PUSH-BUTTON
OThis push-button must be used ever time a safety device trips (emergency,
thermal relays, line drop) so making ALARM (Ref.3) to light on.
Press the push-button after releasing the emergency push-button (Ref.2) and
setting selector Ref. 5 at STOP; the green light of the same push-button will
light on and the machine will be ready to start again.
EMERGENCY BUTTON
When pressing this push-button through the safety bar, the machine will
immediately stop.
To reset machine operation it is necessary to follow procedure described in
instructions START PUSH-BUTTON (Ref.1)
ALARM WARNING LIGHT
It lights (Ref. 3) on every time a safety device trips (emergency buttons,
thermal relays, line drop, lid not closed).
REGULATION THERMOSTAT
This thermostat regulates the temperature of the anti-freeze fluid that cools the
whipping chamber. To regulate the temperature, press Set for 2 seconds.
A flashing temperature will appear that can be increased using the
aux
key
or reduced using the
def
key.
Regulate the temperature by adjusting the thermostat between the values
including -20°C and -23°C. For a good ice-cream consistency, our advice
is to keep temperature setting between -20 °C and -23 °C, because lower
temperatures may cause strong vibrations to the freezer and damage moving
spatula and related movements.
NOTE: do not push PROG button on temperature regulation, as it gives
access to programming table steps which are not to be used by customer.
4-WAY SWITCH
To be used when setting mixer programs (Ref. 5).
Following are its functions:
START
M
E
R
G
E
N
C
S
T
O
P
ALARM
Def
Set
Prug
mute
Aux
STOP
STOP
The unit is off and ready to operation (when START light is
on).
PRODUCTION
To start compressor and mixer; compressor is controlled by
regulation thermostat Ref.4.
COMPRESSOR STARTING
Only will the compressor run; using this function, you can
pre-cool the unit.
MIXER
Only does the mixer run; using this function, you can mix the
liquid mix before freezing and ice cream during extraction.
STOP
