CBS S1500 - Remote Alarm Wiring; Storage Unit Parameters

14
www.custombiogenics.com

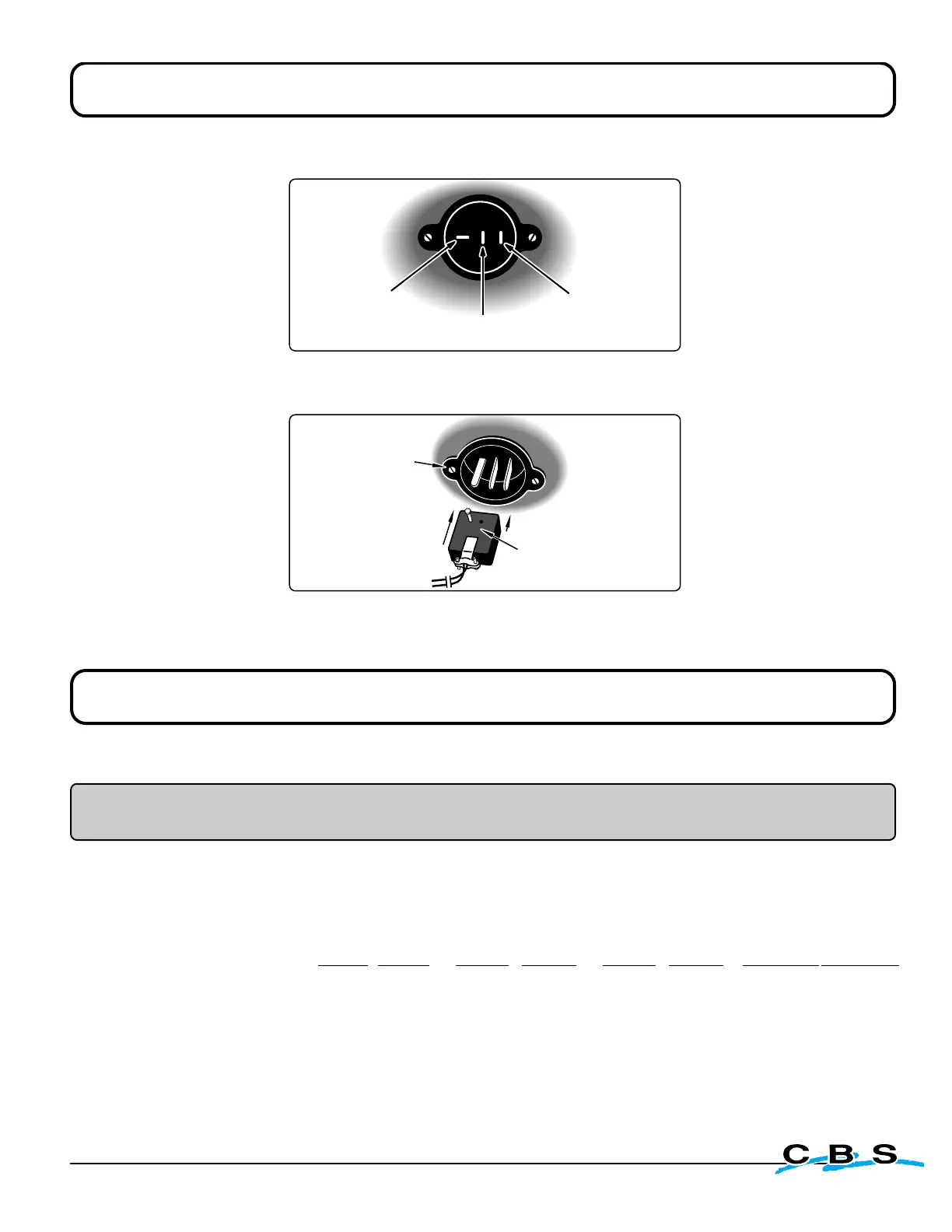

- Remote Alarm Wiring -
Locate the Remote Alarm Connector on the controller (#9 on page 7; #2 on page 8). This is
where the remote alarm or auto dialer will plug into the control unit.
First, wires from the remote alarm or auto dialer must be connected to the plug-end which
plugs in to the Remote Alarm Connector. Use the diagram to connect wires from the remote unit.
When unit goes into an alarm condition or loses power, the contacts will close, thereby
sending a signal to the remote alarm or auto dialer.
Normally
Closed
Normally
Open
Common
Remote Alarm
connector jack
on unit back panel
Push into place
(only goes one way)
Remote Alarm connector
(be sure to push in
side pin after wiring)
Remote Alarm
Connector
Remote Alarm
Connection
Procedure
Diagram shows connections
for wiring arrangement with
controller on and no alarm
present.
Cooling medium: Liquid nitrogen only (
supplied by a pressurized cryogenic transport vessel)
Operating Pressure: 22 p.s.i.
Power Supply Voltage: 120 Volts AC 60 Hz standard - 220 Volts AC 60/50 Hz optional
Amperage: 1 amp max
Fuse: 1 amp Slow Blow - 220 Volts AC (
automotive glass tube type fuse)
Operating levels for LN
2
: 0 to 28 inches (higher fill heights may be used, call factory for further info)
Specifications:
IMPORTANT: Operating pressure 22 p.s.i. max/18 p.s.i. min. If the pressure is greater or less,
the efficiency of your liquid nitrogen storage unit will be adversely affected.
Liquid Nitrogen Capacity (liters):
Static Evaporation Rate (liters/day):
Static Holding Time (days):
External Dimensions (inches/cm):
Width:
Depth:
Height:
Usable Interior Height (inches/cm):
Usable Interior Diameter (inches/cm):
Weight Empty (lbs/kg):
Weight Full (lbs/kg):
S1500
145
4
41
22/558
31/787
41/1041
29/736
20/508
156/70
414/188
V1500
30
5
6
26/660
37/939
45/1143
29/736
21/534
327/148
383/174
S3000
345
7
49
34/863
43/1092
42/1066
29/736
31/787
350/159
965/438
V3000
70
9
8
37/939
48/1219
47.5/1205
29/736
31/787
600/272
720/327
S5000
615
9
61
43/1092
50/1270
48/1219
29/736
40/1016
700/318
1794/815
V5000
93
11
8
47/1194
54/1371
52/1320
29/736
40/1016
936/425
1100/500
S5000EH
714
9
79
43/1092
50/1270
54/1371
34/864
40/1016
755
1984
V5000EH
140
11
12
47/1194
54/1371
58/1473
34/864
40/1016
997/453
1247/566
- Storage Unit Parameters -
