CBS S1500 - S1500 & S3000

25
15
23
16
17
21
22
9
4
6
2
7
8
8
8
18
1
2
1
1
6
19
20
8
13
4
10
14
11
12
10
5
5
3
2

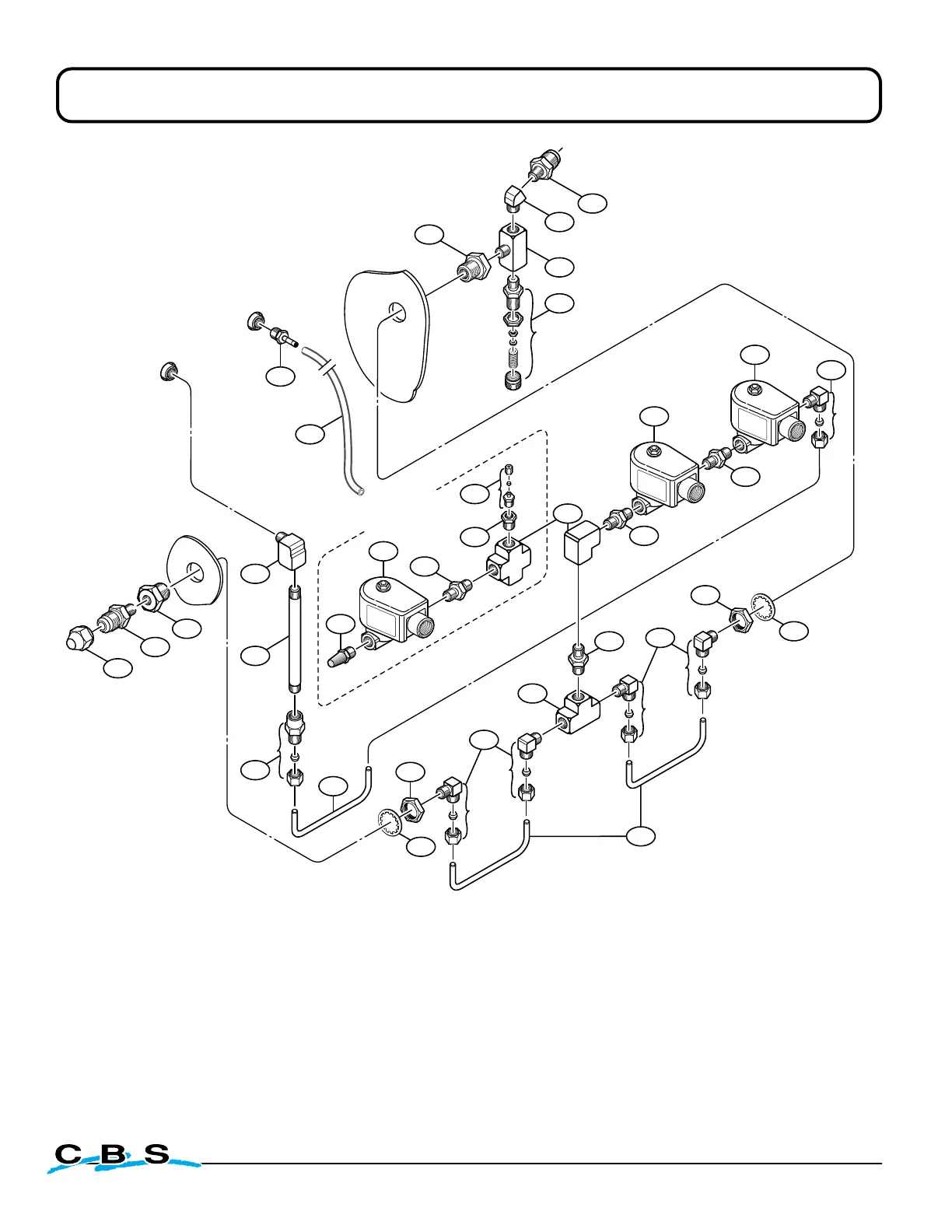

Solenoid Valve - 99506
90˚ 3/8" Flare Fitting - 269C-6-4
3/8" Copper "U" Tubing - CT-.375
Anchor Coupling - 207ACBHS-4
Lock Washer - " "
3/4" Nut - " "
1/2" 3-Way - 2203P-4
Hex Nipple - 216P-4
90˚ Elbow (Std Autofill) - 2200P-4-4
4-Way (w/Bypass) - 2205P-4
Male Connector - 48F-8-4
45˚ Street Elbow - 2214P-4-4
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
Male Branch Tee - 2224P-4-4
Relief Valve - RV-60 PSI
Cap Nut - 640F-8
90˚ Street Elbow - 2202PA-4-4
Long Nipple - 215PNL-4-35
Male Connector - 68C-6-4
Hose Barb - 125HB-3-4
3/8" Copper "U" Tubing - CT-.375
Brass Vent - 4450K2
Thermocouple Fitting - 68C-2-2
Bushing - 209P-4-2
Sensing Hose - SH-PVC-3/16
12)
13)
14)
15)
16)
17)
18)
19)
20)
21)
22)
23)
These parts
present only with
bypass option
- S1500 & S3000 LN
2
Manifold Assembly -
