Technical manual Tild v1.0QC

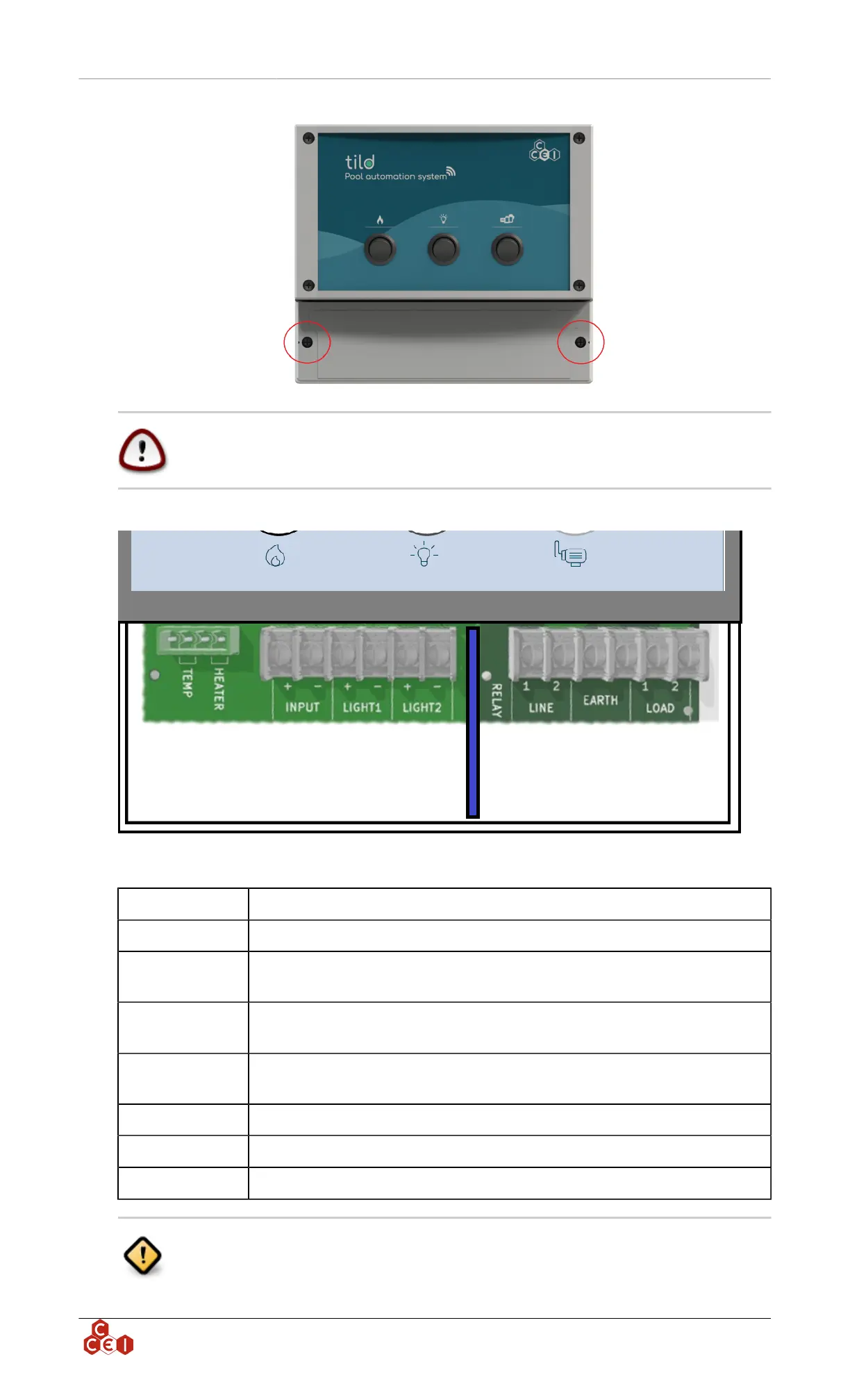

When you put back the lower cover, use a torque of 1.2 Nm to tighen the screws
and ensure watertightness.
While the lower cover has been removed you will have access to the following wiring terminal blocks:
TEMP Connect the temperature probe (no polarity)
HEATER Connect the dry contact from you swimming pool heater (no polarity).
INPUT
Terminal block for the 12VAC or 24VDC power supply (pay attention to the
polarity for DC input)
LIGHT1
Out put for a 12 VAC or 24VDC CCEI LED light(s). (pay attention to the po-
larity for DC input)
LIGHT2
Second out put for 12 VAC or 24VDC CCEI LED light(s) (pay attention to the
polarity for DC input)
LINE Connect the power supply of your filtration pump (110 / 240 VAC)
EARTH Connect the EARTH wire of the pump cable (if there is one)
LOAD Connect the filtration pump (110 or 240 VAC)
Tild can be supplied in 12VAC or 24VDC depending the model. To select the good
voltage you have to refer to the light that your are using and the P/N (extension /12
ccei.ca
4
