4. Wall mounting
For safety reasons and in accordance with the local directives and NEC, the case
must be installed in either:
• more than 3.5 m (11,5 ft) away (or even further if so required by the local legis-
lation) from the edge of the pool. This distance is measured taking into account
any workaround obstacles. If the case is installed behind a wall, the measured
necessary distance would be measured by the distance to go around the wall and
reach the box
• or in an underground room in close proximity to the pool. In this case, the room
must be accessible by a trap door which requires the use of a tool to be opened
Before proceeding to the mounting, verify the Wi-Fi signal presence where the product will be placed.

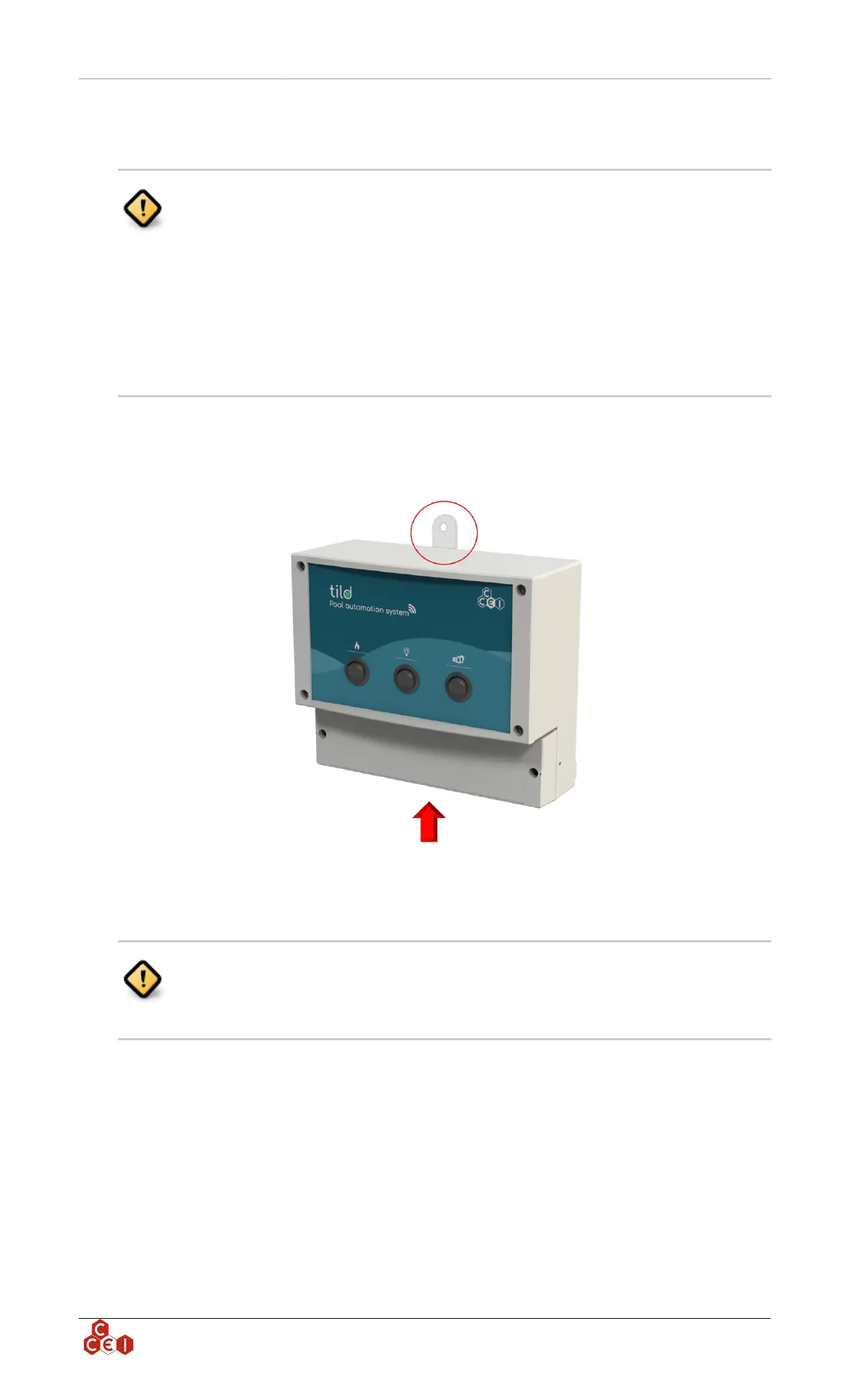

Using the 2 pre-mounted wall fastening lug and the provided screws, fix the Tild on a flat and stable
portion.
5. Electrical wiring
Installation of this product involves a hazard of electric shock. We strongly rec-
ommend you contract a professional installer. Incorrect installation places you in
danger and may irreversibly damaged the product and the equipment connected
to it.
Open the bottom of the case by removing the 2 screws on the bottom of the case:
