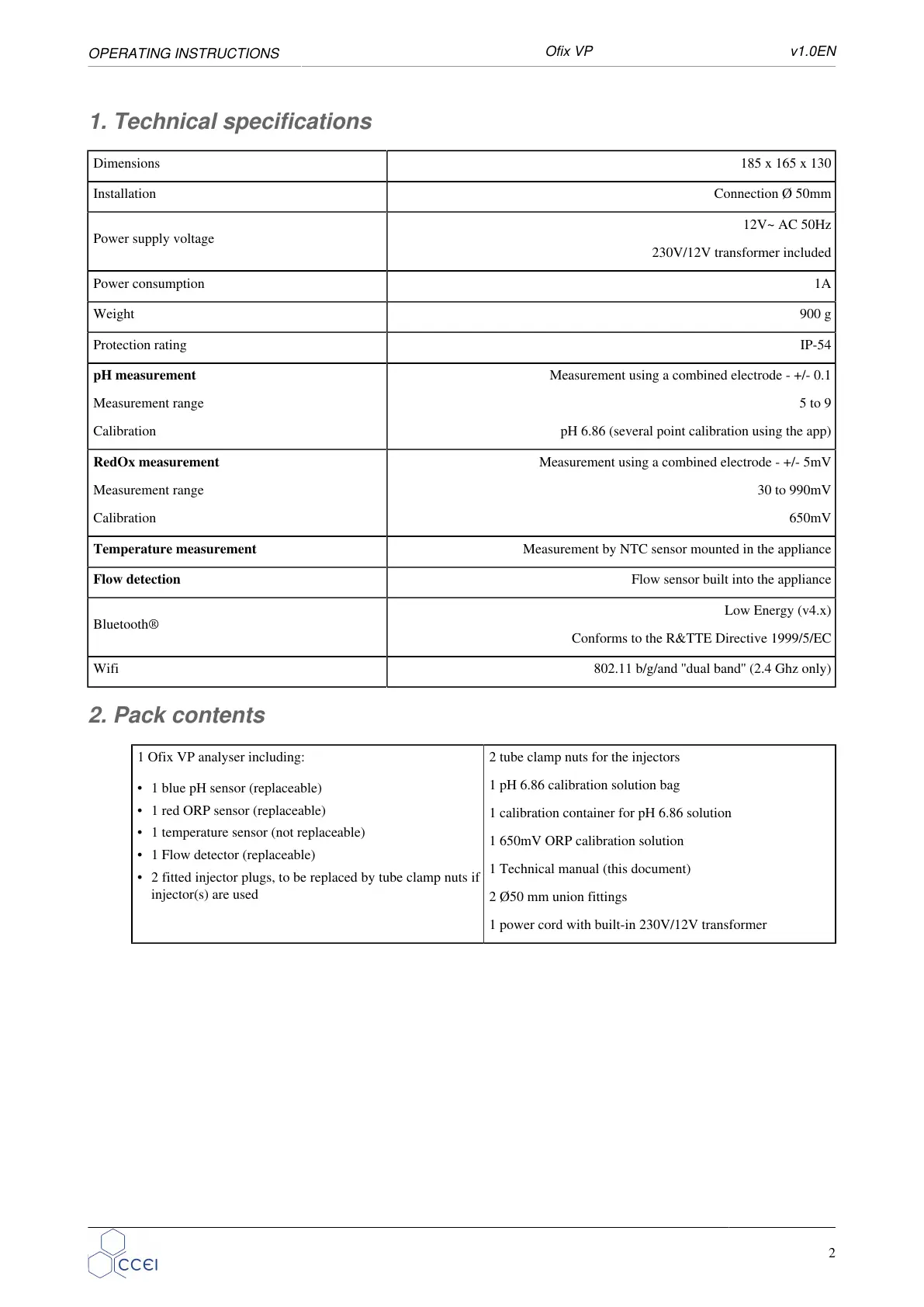

OPERATING INSTRUCTIONS
Ofix VP v1.0EN
1. Technical specifications
Dimensions 185 x 165 x 130
Installation Connection Ø 50mm
Power supply voltage
12V~ AC 50Hz
230V/12V transformer included
Power consumption 1A
Weight 900 g
Protection rating IP-54
pH measurement
Measurement range
Calibration
Measurement using a combined electrode - +/- 0.1
5 to 9
pH 6.86 (several point calibration using the app)
RedOx measurement
Measurement range
Calibration
Measurement using a combined electrode - +/- 5mV
30 to 990mV
650mV
Temperature measurement Measurement by NTC sensor mounted in the appliance
Flow detection Flow sensor built into the appliance
Bluetooth®
Low Energy (v4.x)
Conforms to the R&TTE Directive 1999/5/EC
Wifi 802.11 b/g/and ''dual band'' (2.4 Ghz only)
2. Pack contents
1 Ofix VP analyser including:
• 1 blue pH sensor (replaceable)
• 1 red ORP sensor (replaceable)
• 1 temperature sensor (not replaceable)
• 1 Flow detector (replaceable)
• 2 fitted injector plugs, to be replaced by tube clamp nuts if
injector(s) are used
2 tube clamp nuts for the injectors
1 pH 6.86 calibration solution bag
1 calibration container for pH 6.86 solution
1 650mV ORP calibration solution
1 Technical manual (this document)
2 Ø50 mm union fittings
1 power cord with built-in 230V/12V transformer
2
