OPERATING INSTRUCTIONS
Ofix VP v1.0EN

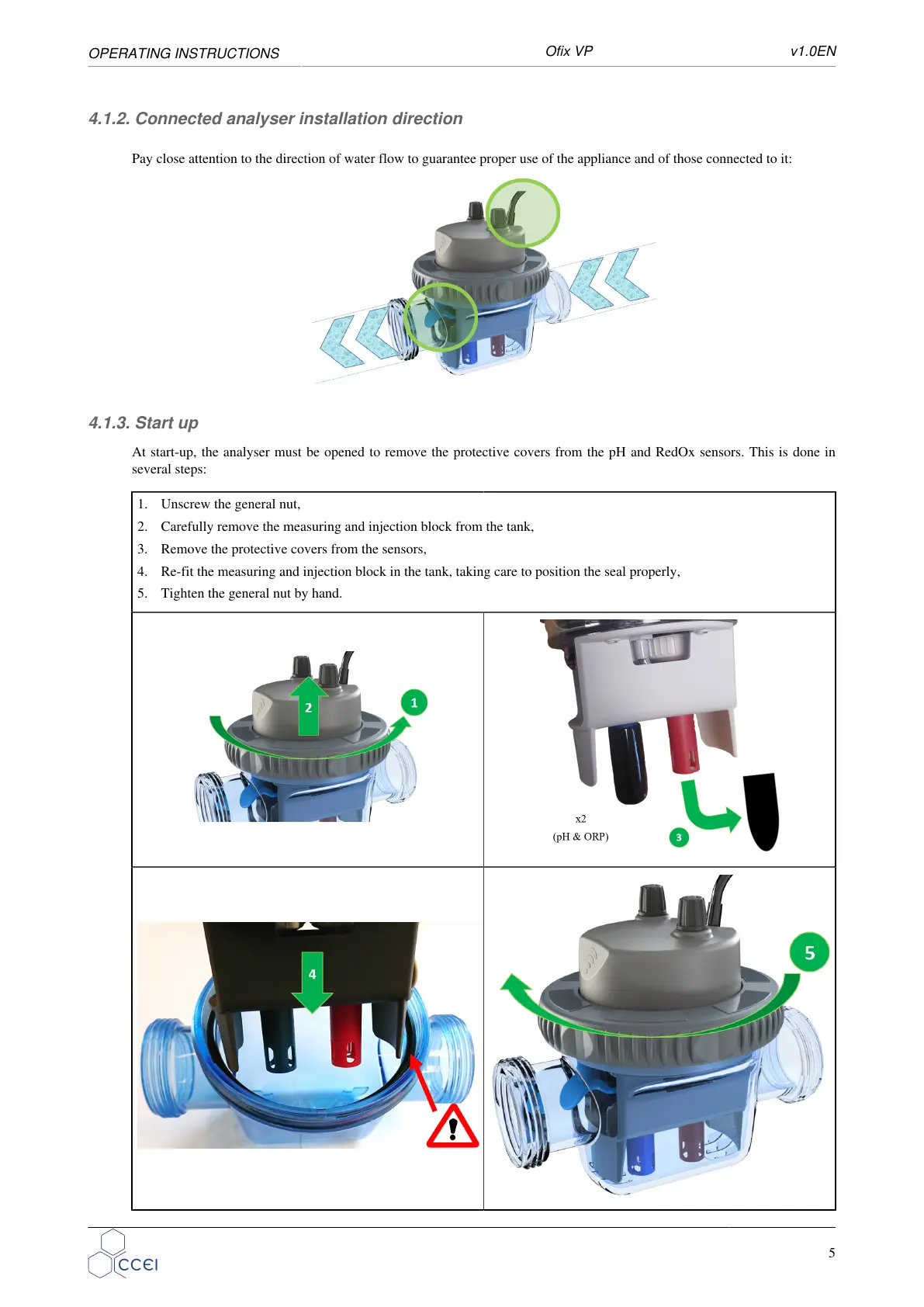

4.1.2. Connected analyser installation direction
Pay close attention to the direction of water flow to guarantee proper use of the appliance and of those connected to it:
4.1.3. Start up
At start-up, the analyser must be opened to remove the protective covers from the pH and RedOx sensors. This is done in
several steps:
1. Unscrew the general nut,
2. Carefully remove the measuring and injection block from the tank,
3. Remove the protective covers from the sensors,
4. Re-fit the measuring and injection block in the tank, taking care to position the seal properly,
5. Tighten the general nut by hand.
5
