connection box.
• As the appliance is not tted with an accessible plug, a means of
disconnection from the power supply must be must be included in
the fixed insatllation, in accordance with the installation regulations.
• The inlet cable must be positioned so that it does not touch any of
the hot parts of the hob or oven.
Caution
• This appliance must only be connected to a 230V ~ 50Hz network.
• Observe the connection diagram (below).
• The connection box is located underneath at the back of the hob
casing. To open the cover use a medium screwdriver. Insert it in the
slits to open the cover.

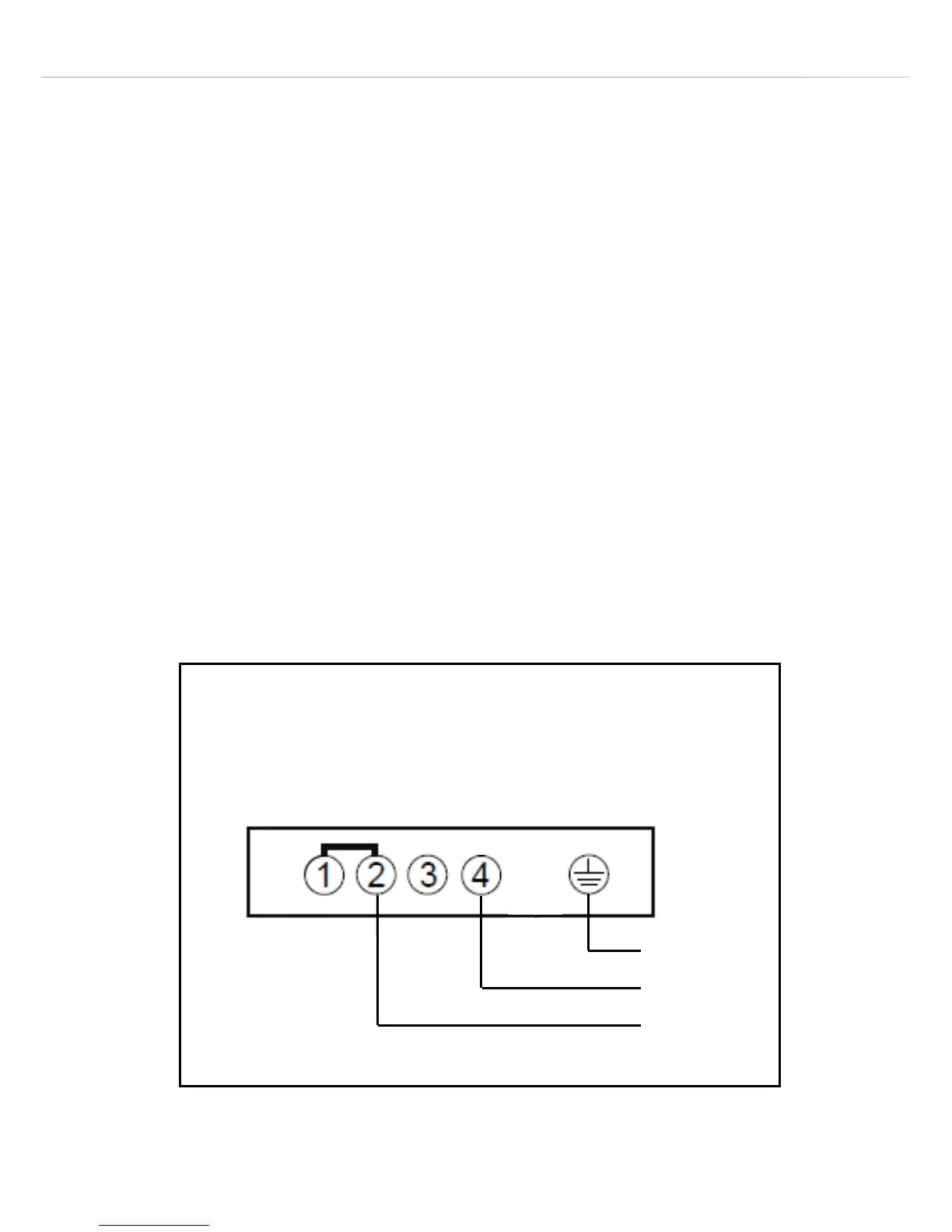

The following diagram shows the mains connection:
* Calculated using the diversity factor following the standard EN 60
335-2-6/1990.
Fig.6
AC 220-240V 50/60Hz 25A*
E
N
L
