CDVI DGA - General Information

EN EN
DGA
Keypad DGA
2 cdvigroup.com
120
98
25
Construction: Zamak
®
cast alloy
Self-contained
Surface mount
Capacity of 100 user codes
of 4 to 6 digits
Stored in EEPROM memory
Buzzer audible signal
Backlit keys
Strong construction
2 dry contact relay outputs
Adjustable time output:
1 to 99 seconds and toggle mode
Operating voltage:
12-24Vac and 12-48Vdc
Consumption: 25 to 80mA
Mounting with Torx
®
screws

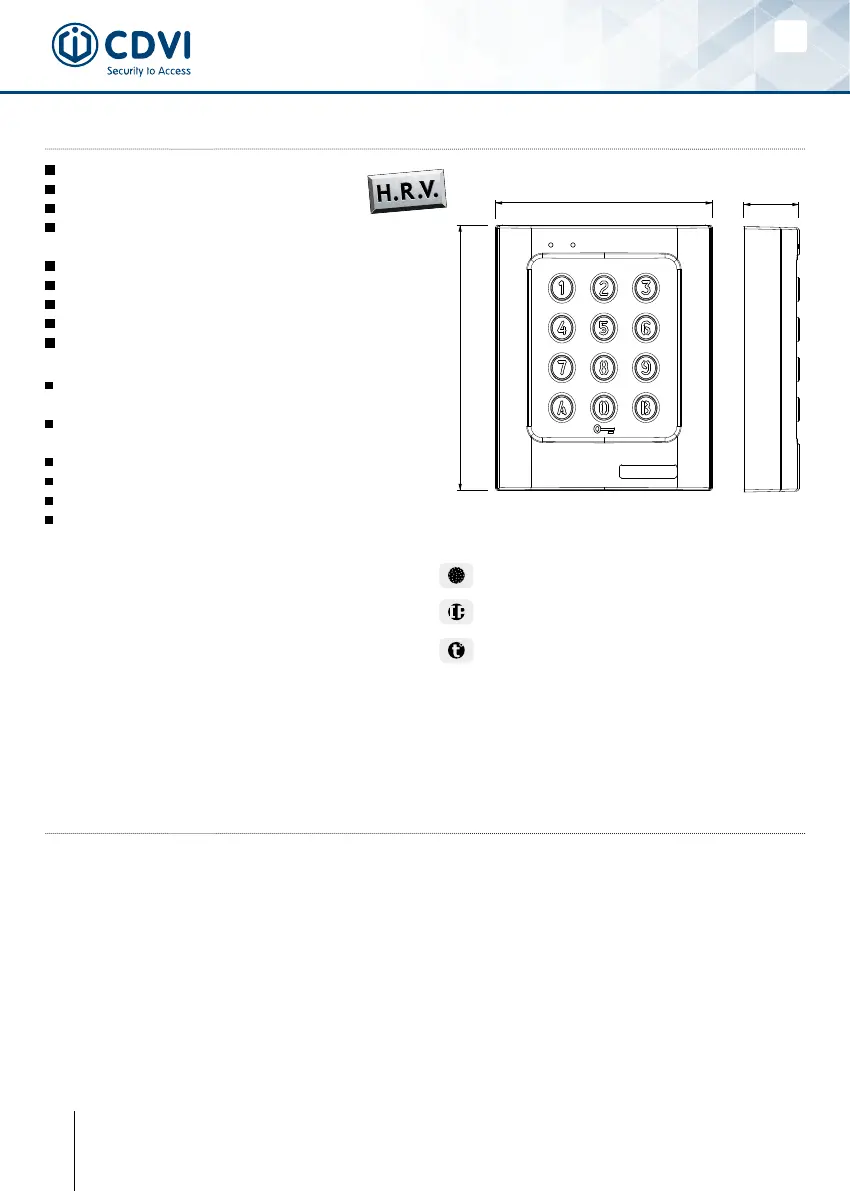

Dimensions (L x W x D): 120 x 98 x 25 mm
 Usermodicationofcodes
1] GENERAL INFORMATION
IP64
Environmental tests
Salt spray
-25°C à +70°C
HIGH RESISTANCE TO
VANDALISM
Recommended power supplies.
- ADC335 (230V input), BS60 (230V input).
-Separatepowersupplyforthecontrolelements.
Wiring reminder
Make sure to insulate any unused wires.
Mounting recommendations
Mountthekeypadonaatsurfacetoavoid
any vandalism and to insure the best mounting.
Security advice
Forsecurityadvicereasons,changethefactory
defaultmastercode.Whenselectingamastercode
and user code avoid simple codes
(example : 3 4 5 6 7).
Back EMF protection
Tosecurethesystemfrombackelectromagnetic
eldsdonotforgettomountthevaristor
in parallel on the lock.
2] 2] NOTES & RECOMMENDATIONS
