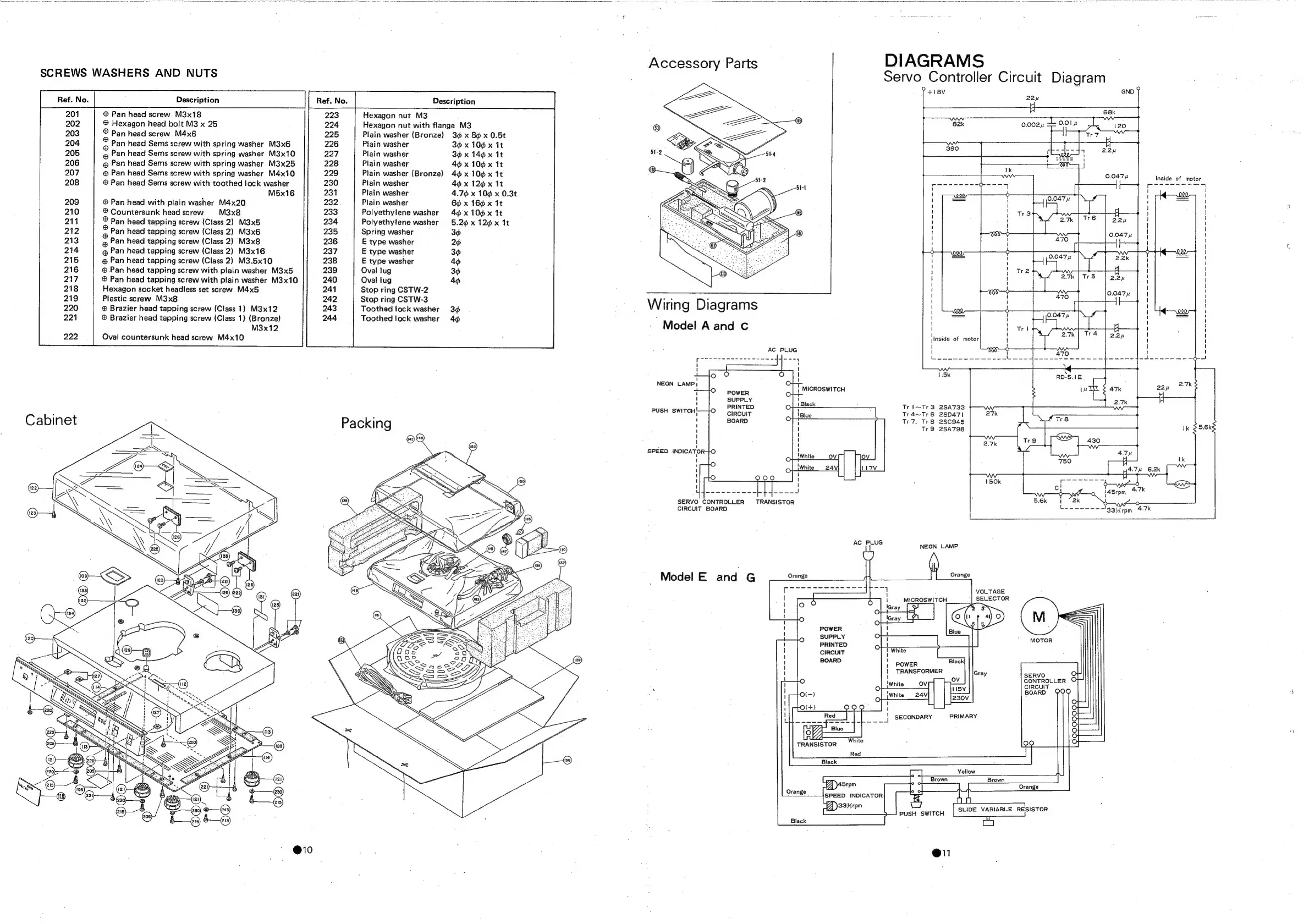

cec DD-8200 - 8 DIAGRAMS: Sceedsedeiscuratesoe Pein a a Bee 11; Servo Controller Circuit Diagram; Wiring Diagrams

SCREWS WASHERS AND NUTS
Cabinet
® Pan head screw M3x18
® Hexagon head bolt M3 x 25
® Pan head screw M4x6
Pan head Sems screw with spring washer M3x6
® Pan head Sems screw with spring washer M3x10
@ Pan head Sems screw with spring washer M3x25
® Pan head Sems screw with spring washer M4x10
® Pan head Sems screw with toothed lock washer
M5x16
® Pan head with plain washer M4x20
® Countersunk head screw M3x8
© Pan head tapping screw (Class 2) M3x5
Pan head tapping screw (Class 2} M3x6
® Pan head tapping screw (Class 2) M3x8
@ Pan head tapping screw (Class 2) M3x16
@ Pan head tapping screw (Class 2) M3.5x10
® Pan head tapping screw with plain washer M3x5
® Pan head tapping screw with plain washer M3x10
Hexagon socket headless set screw M4x5
Plastic screw M3x8
® Brazier head tapping screw (Class 1) M3x12
® Brazier head tapping screw (Class 1} (Bronze)
M3x12
Oval countersunk head screw M4x10
@10
Packing
Hexagon nut M3
Hexagon nut with flange M3
Plain washer (Bronze)
Plain washer
Plain washer
Plain washer
Plain washer (Bronze)
Plain washer
Plain washer
Plain washer
Polyethylene washer
Polyethy!ene washer
Spring washer
E type washer
E type washer
E type washer
Oval lug
Oval jug
Stop ring CSTW-2
Stop ring CSTW-3
Toothed tock washer
Toothed lock washer
3¢ x 86 x 0.5t
3@ x 10¢ x it
36 x 146 x It
46 x 10¢ x It
4 x 10@ x It
46 x 126 x it
4.76 x 10¢ x 0.3t
6¢ x 166 x 1t
4g x 10 x 1t
5.26 x 126 x It
3¢
2¢
3¢
49
3¢
4¢
3¢
4¢
DIAGRAMS
Servo Controller Circuit Diagram
P+1av
22p
Inside of motor
Wiring Diagrams
Model A and c
AC PLUG
POWER
! SUPPLY
PRINTED Trl~Tr3 2SA733
PUSH
SWITCHt
CIRCUIT
Tr4~Tr6
2SD471
Tr7, Tr8 290945
Tr 2SA798
BOARD
'
'
t
!
!
1
SPEED INDICATOR
a
1
1
4
1
i}
1
TRANSISTOR
SERVO CONTROLLER
CIRCUIT BOARD
NEON LAMP
Orange
Orange
Model E and G
VOLTAGE
SELECTOR
SERVO
CONTROLLER ©
CIRCUIT
BOARD ©
@11
