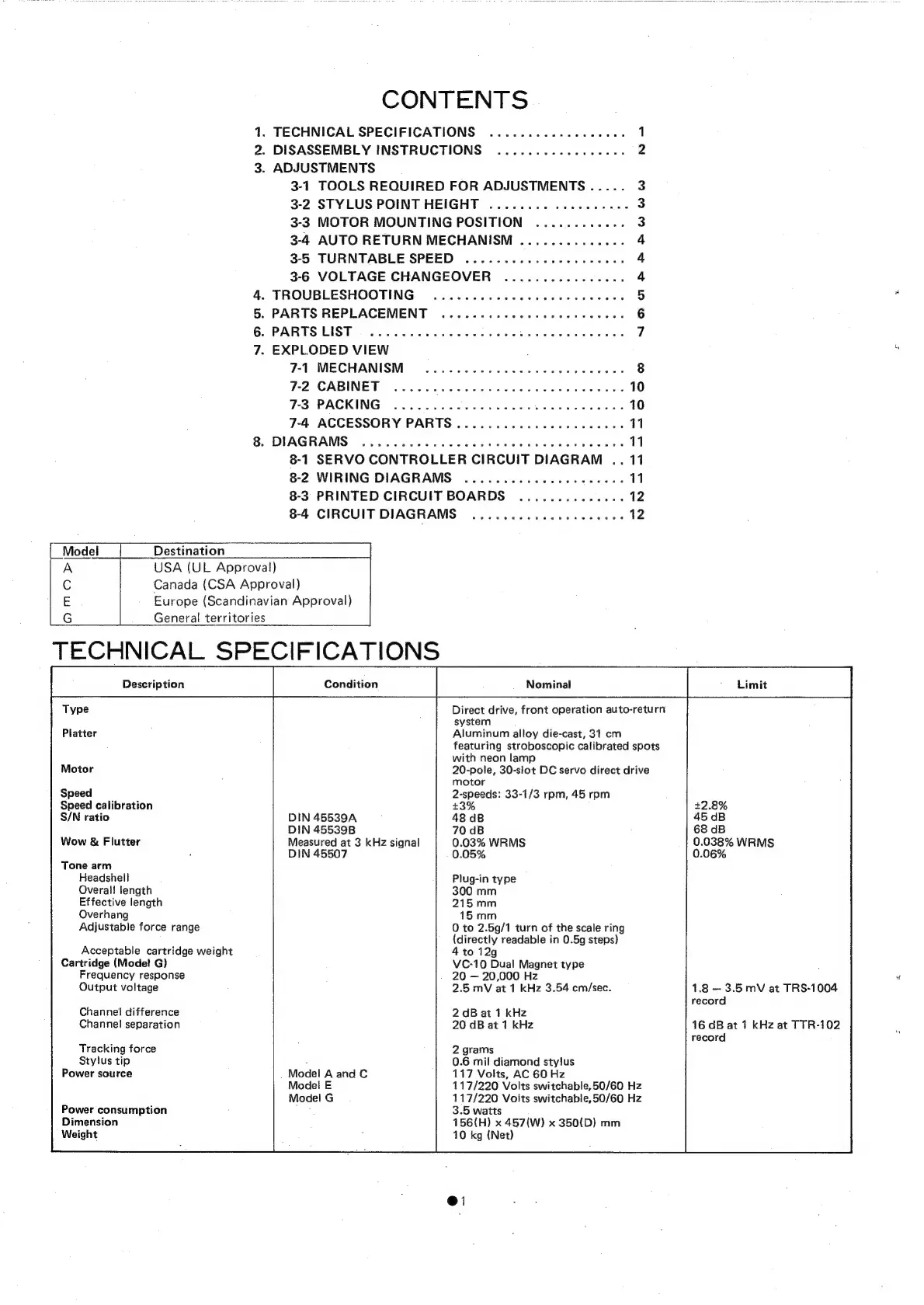

CONTENTS
1. TECHNICAL SPECIFICATIONS ............000005 1
2. DISASSEMBLY INSTRUCTIONS ................: 2
3. ADJUSTMENTS
3-1 TOOLS REQUIRED FOR ADJUSTMENTS ..... 3
3-2 STYLUS POINT HEIGHT ........ 0.0.0. -05- 3
3-3 MOTOR MOUNTING POSITION ............ 3
3-4 AUTO RETURN MECHANISM .............- 4
3-5 TURNTABLE SPEED ........... cece eeees 4
3-6 VOLTAGE CHANGEOVER ................ 4
4. TROUBLESHOOTING... eee eee eee 5
5. PARTS REPLACEMENT ...... cece cece eee ee eens 6
G.KPARTSI LIST « icssdeeis eye a5 8 ie Wine teceie alone lone ood ohesoat 7
7. EXPLODED VIEW :
7-1 MECHANISM — oo. eee cee eee 8
Te2 CABINED. sed.csencene oie sitpsis did areis euaiora aie ais sts 10
TS. PACKING® ised Sc aie sand Tees erardreleeh aed 10
7-4 ACCESSORY PARTS ............02-22 eee 11
8. DIAGRAMS: «sce eds edeis curate soe Pein a a bee 11
8-1 SERVO CONTROLLER CIRCUIT DIAGRAM .. 11
8-2 WIRING DIAGRAMS ..............--0005- 11
8-3 PRINTED CIRCUIT BOARDS .............. 12
8-4 CIRCUIT DIAGRAMS .................06- 12
Destination
USA (UL Approval)
Canada (CSA Approval)
Europe (Scandinavian Approval)
General territories
TECHNICAL SPECIFICATIONS
eee eee tn ie
Type Direct drive, front operation auto-return
system
Aluminum alloy die-cast, 31 cm
featuring stroboscopic calibrated spots
with neon lamp
20-pole, 30-siot DC servo direct drive
Platter
Motor
motor
Speed 2-speeds: 33-1/3 rpm, 45 rpm
Speed calibration +3% +2.8%
S/N ratio DIN 45539A 48 dB 45 dB
DIN 45539B 70 dB 68 dB
Wow & Flutter Measured at 3 kHz signal 0.03% WRMS 0.038% WRMS
: DIN 45507 0.05% 0.06%
Tone arm
Headshell Plug-in type
Overal! length 300 mm
Effective length 215mm
Overhang 15mm
Adjustable force range 0 to 2.5g/1 turn of the scale ring
(directly readable in 0.5g steps)
4 to 12g
VC-10 Dual Magnet type
20 — 20,000 Hz
2.5 mV at 1 kHz 3.54 cm/sec. 1.8 —3.5 mV at TRS-1004
record
Acceptable cartridge weight
Cartridge (Mode! G)
Frequency response
Output voltage
Channel difference 2 dB at 1 kHz
Channel separation 20 dB at 1 kHz 16 dB at 1 kHz at TTR-102
record
Tracking force 2 grams
Stylus tip 0.6 mil diamond stylus
Power source . Model A and C 117 Volts, AC 60 Hz
Model E 117/220 Volts switchable, 50/60 Hz
Model G 117/220 Voits switchable,50/60 Hz
Power consumption
Dimension
Weight
3.5 watts
156(H) x 457(W) x 350{D) mm
10 kg (Net)
