cabinet

(Fig.

4).

(3)

Remove

the

terminal

plate

2

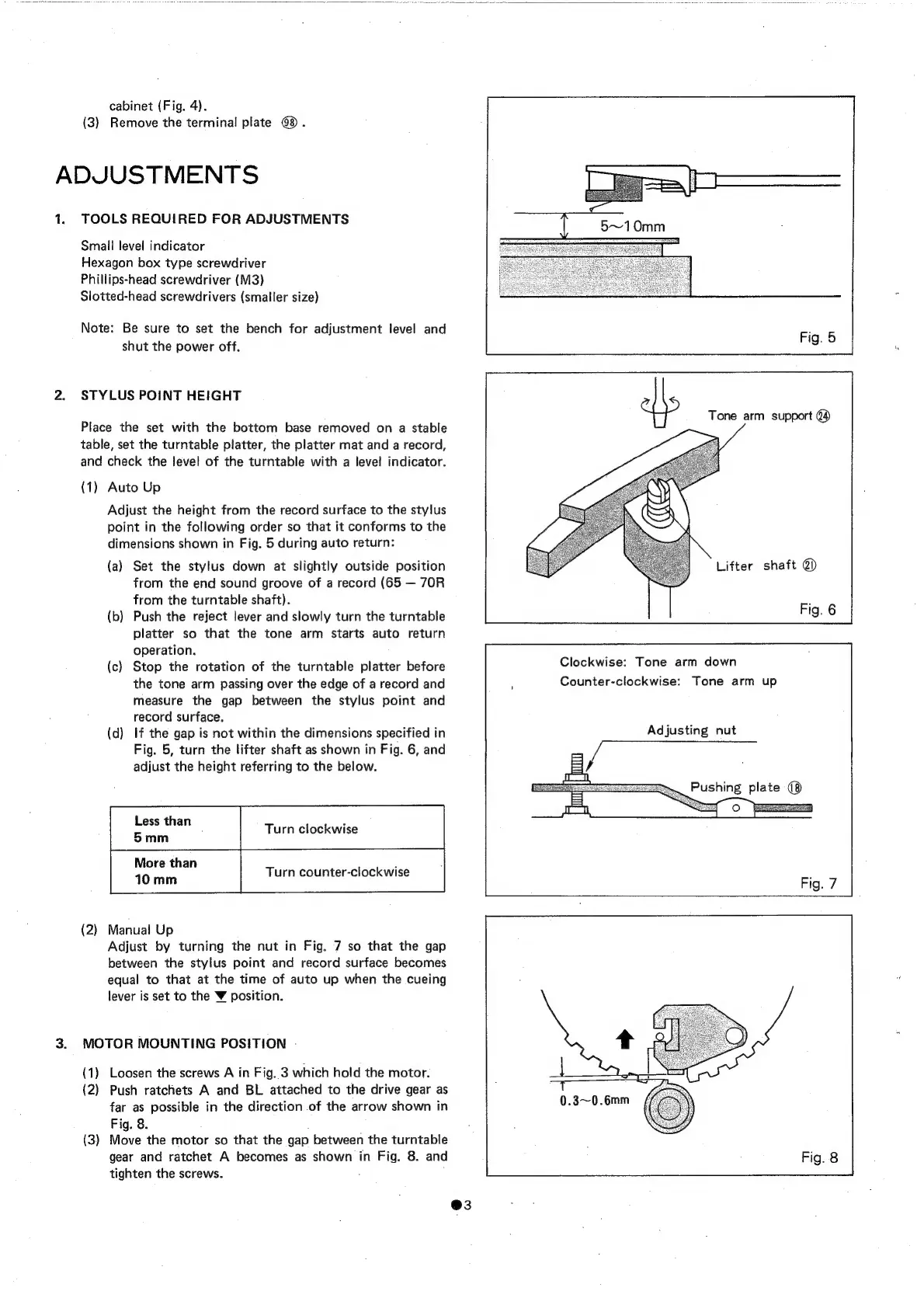

ADJUSTMENTS

1.

TOOLS

REQUIRED

FOR

ADJUSTMENTS

Small

level

indicator

Hexagon

box

type

screwdriver

Phillips-head

screwdriver

(M3)

Slotted-head

screwdrivers

(smaller

size)

Note:

Be

sure

to

set

the

bench

for

adjustment

level

and

shut

the

power

off.

2.

STYLUS

POINT

HEIGHT

Tone

arm

support

@

Place

the

set

with

the

bottom

base

removed

on

a

stable

table,

set

the

turntable

platter,

the

platter

mat

and

a

record,

and

check

the

level

of

the

turntable

with

a

level

indicator.

(1)

Auto

Up

Adjust

the

height

from

the

record

surface

to

the

stylus

point

in

the

following

order

so

that

it

conforms

to

the

dimensions

shown

in

Fig.

5

during

auto

return:

(a)

Set

the

stylus

down

at

slightly

outside

position

Lifter

shaft

@)

from

the

end

sound

groove

of

a

record

(65

—

70R

Bey

from

the

turntable

shaft).

;

(b)

Push

the

reject

lever

and

slowly

turn

the

turntable

Fig.

6

platter

so

that

the

tone

arm

starts

auto

return

operation.

.

(c)

Stop

the

rotation

of

the

turntable

platter

before

Clockwise:

Tone

arm

down

the

tone

arm

passing

over

the

edge

of

a

record

and

Counter-clockwise:

Tone

arm

up

measure

the

gap

between

the

stylus

point

and

record

surface.

(d)

If

the

gap

is

not

within

the

dimensions

specified

in

Adjusting

nut

Fig.

5,

turn

the

lifter

shaft

as

shown

in

Fig.

6,

and

adjust

the

height

referring

to

the

below.

Pushing

plate

(8

one

Less

than

Turn

clockwise

5mm

More

than

10

mm

Turn

counter-clockwise

(2)

Manual

Up

Adjust

by

turning

the

nut

in

Fig.

7

so

that

the

gap

between

the

stylus

point

and

record

surface

becomes

equal

to

that

at

the

time

of

auto

up

when

the

cueing

lever

is

set

to

the

W

position.

3.

MOTOR

MOUNTING

POSITION

-

(1)

Loosen

the

screws

A

in

Fig.

3

which

hold

the

motor.

(2)

Push

ratchets

A

and

BL

attached

to

the

drive

gear

as

far

as

possible

in

the

direction

of

the

arrow

shown

in

Fig.

8.

(3)

Move

the

motor

so

that

the

gap

between

the

turntable

gear

and

ratchet

A

becomes

as

shown

in

Fig.

8.

and

tighten

the

screws.

:

@3
