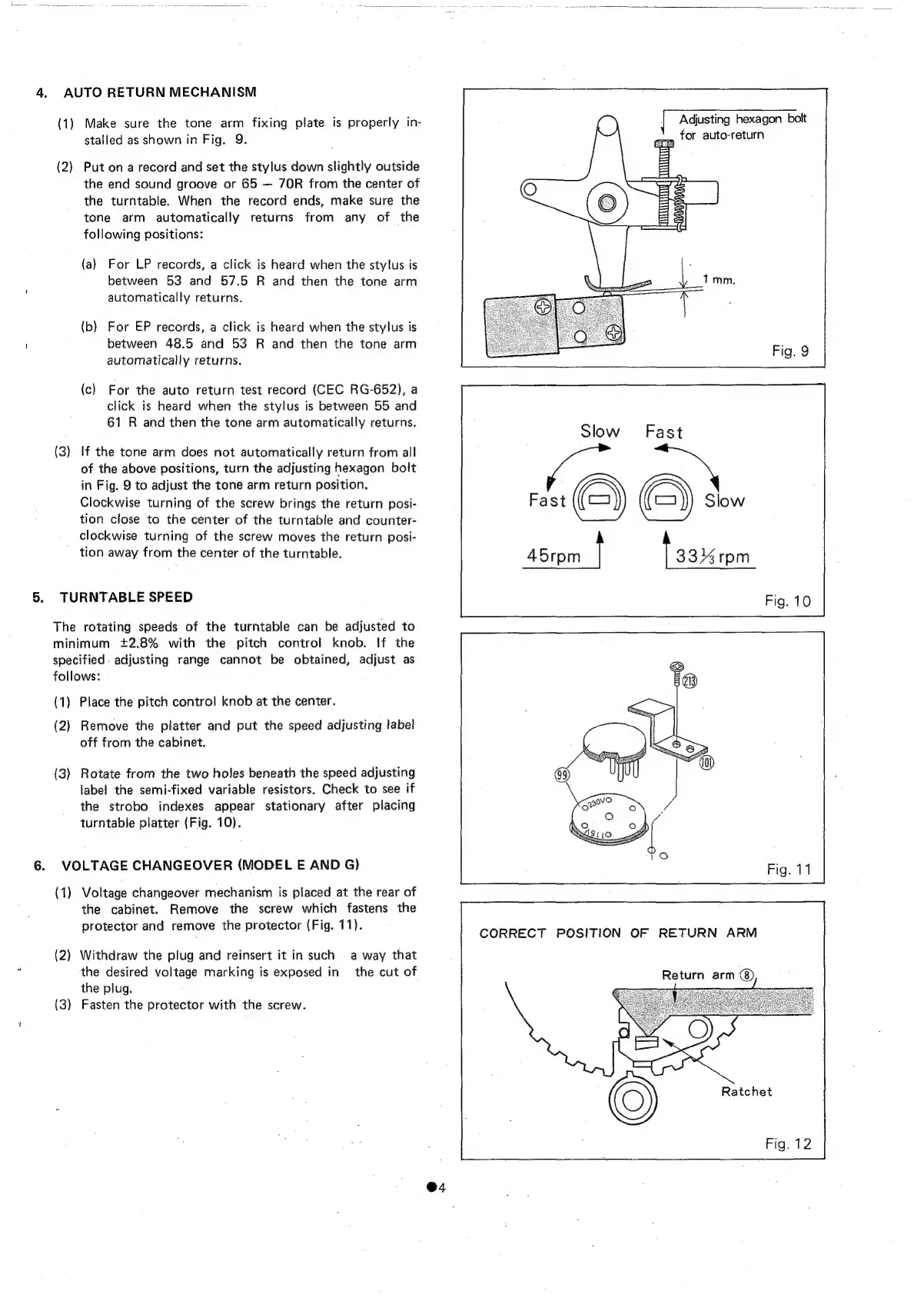

4.
AUTO
RETURN
MECHANISM
>a
(1)
Make
sure
the
tone
arm
fixing
plate
is
properly
in-
Adjusting
hexagon
bolt
stalled
as
shown
in
Fig.
9.
for
auto-return
(2)
Put
ona
record
and
set
the
stylus
down
slightly
outside
the
end
sound
groove
or
65
70R
from
the
center
of
the
turntable.
When
the
record
ends,
make
sure
the
tone
arm
automatically
returns
from
any
of
the
following
positions:
(a)
For
LP
records,
a
click
is
heard
when
the
stylus
is
between
53
and
57.5
R
and
then
the
tone
arm
automatically
returns.
(b)
For
EP
records,
a
click
is
heard
when
the
stylus
is
between
48.5
and
53
R
and
then
the
tone
arm
automatically
returns.
(c)
For
the
auto
return
test
record
(CEC
RG-652),
a
click
is
heard
when
the
stylus
is
between
55
and
61
R
and
then
the
tone
arm
automatically
returns.
(3)
If
the
tone
arm
does
not
automatically
return
from
all
of
the
above
positions,
turn
the
adjusting
hexagon
bolt
in
Fig.
9
to
adjust
the
tone
arm
return
position,
Clockwise
turning
of
the
screw
brings
the
return
posi-
tion
close
to
the
center
of
the
turntable
and
counter-
clockwise
turning
of
the
screw
moves
the
return
posi-
tion
away
from
the
center
of
the
turntable.
5.
TURNTABLE
SPEED
The
rotating
speeds
of
the
turntable
can
be
adjusted
to
minimum
+2.8%
with
the
pitch
control
knob.
If
the
specified.
adjusting
range
cannot
be
obtained,
adjust
as
follows:
(1)
Place
the
pitch
control
knob
at
the
center.
(2)
Remove
the
platter
and
put
the
speed
adjusting
label
off
from
the
cabinet.
(3)
Rotate
from
the
two
holes
beneath
the
speed
adjusting
label
the
semi-fixed
variable
resistors.
Check
to
see
if
the
strobo
indexes
appear
stationary
after
placing
turntable
platter
(Fig.
10).
6.
VOLTAGE
CHANGEOVER
(MODEL
E
AND
G)
(1)
Voltage
changeover
mechanism
is
placed
at
the
rear
of
the
cabinet.
Remove
the
screw
which
fastens
the
h
ig.
11).
protector
and
remove
the
protector
(Fig
)
CORRECT
POSITION
OF
RETURN
ARM
(2)
Withdraw
the
plug
and
reinsert
it
in
such
a
way
that
the
desired
voltage
marking
is
exposed
in
the
cut
of
Return
arm.
the
plug.
(3)
Fasten
the
protector
with
the
screw.
Ratchet
Fig.
12
e4
