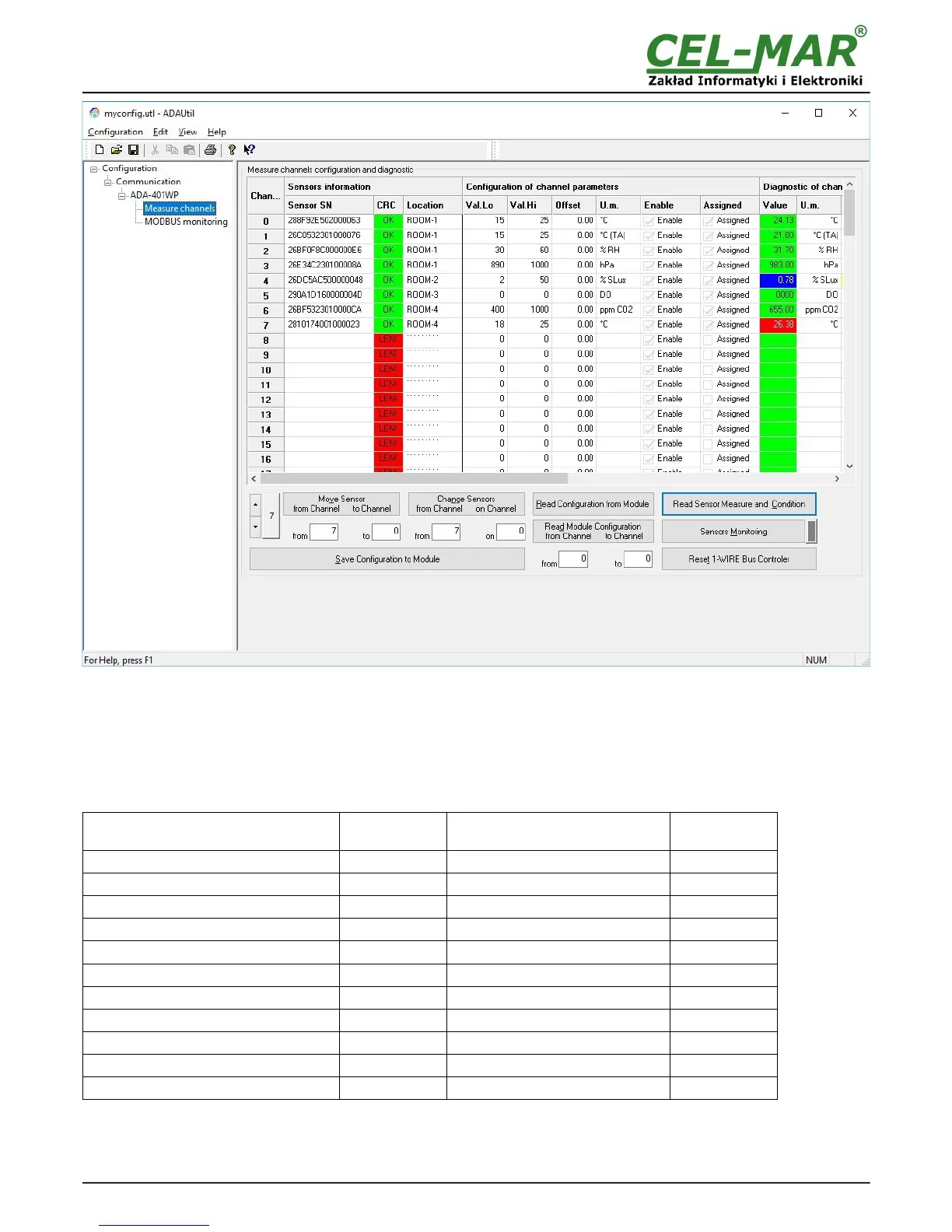

Fig 8. View of ADAUtil measuring channel configuration window
After readout the configuration of measurement channels, serial numbers of all searched sensors will be presented in the column
Sensor SN.
The numbers of channel are assigned in order of search by the module.
Correctly identified sensor is assigned the appropriate unit of measure in column [U.m.] as in the table below.
Table indications of sensors
Sensor
Unit of
measurement
Sensor
Unit of
measurement
Temperature °C voltage converter 0-10V DC V U10
Relative humidity %RH current converter 0-2mA DC mA A20
Atmospheric pressure hPa DS2401 circuit serial number S/N
Lighting (natural or unnatural) %Lux Unrecognised sensor ???
Sunlight %SLux
Temperature adjuster (TA)°C
Percentage adjuster (PA)%
CO2 concentration (in preparation) CO2 ppm
Sensor transducer PT100 to 1-WIRE °C PT100
Sensor transducer PT500 to 1-WIRE °C PT500
Sensor transducer PT1000 to 1-WIRE °C PT1000
