NOTE: When Z-Vent must be extended above
the roof line more than six (6) feet the Guy
Band must be used to support the system.
1. Install the Guy Band below the Rain Cap
using the 10-24 screw and nut provided.
2. Attach stainless steel or galvanized cable
with a minimum rated capacity of 500 lbs
(227 kgf) to each of the four anchor holes.
3. Anchor the cables to a rigid building
member using an appropriate fastening
method.

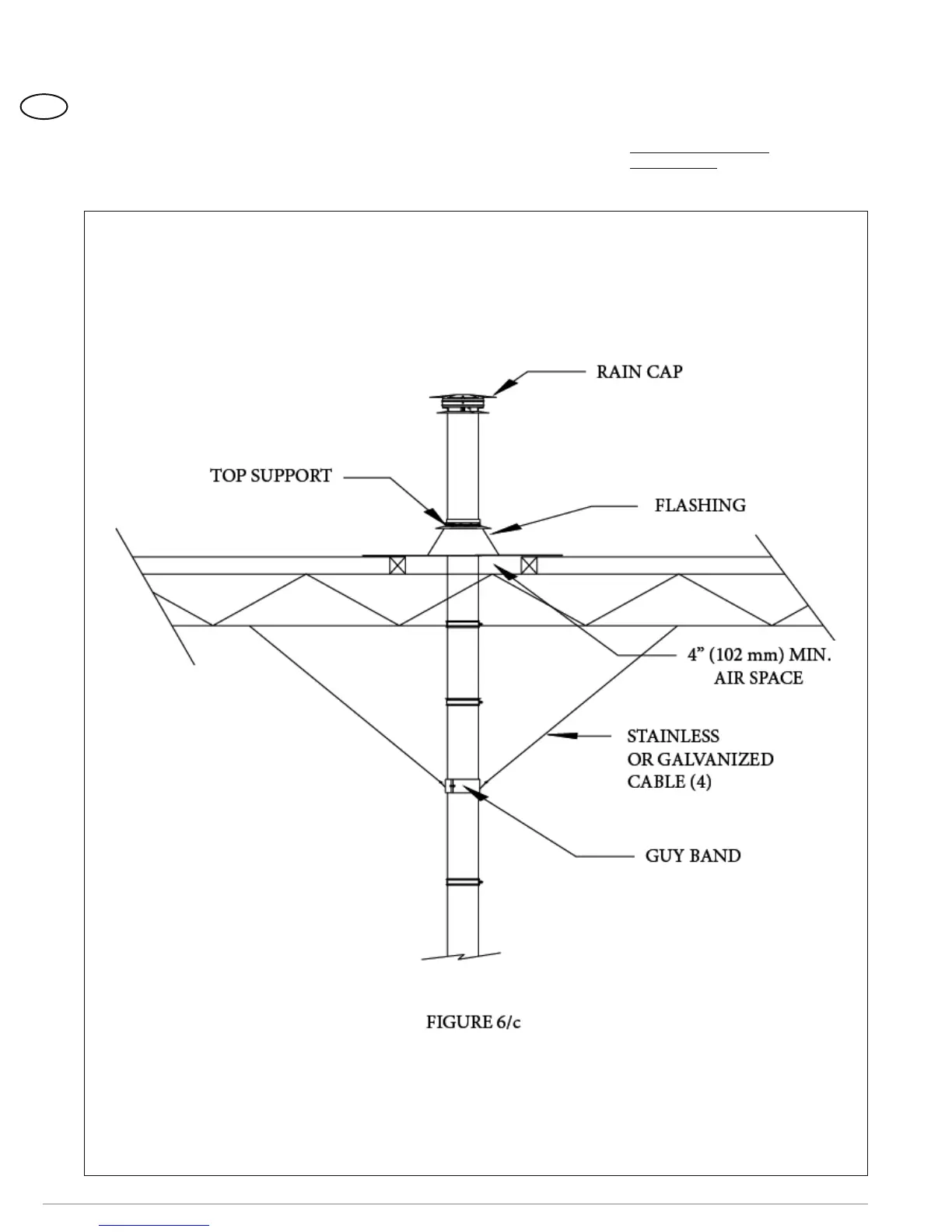

Existing masonry chimney
(See figure 6/e)
