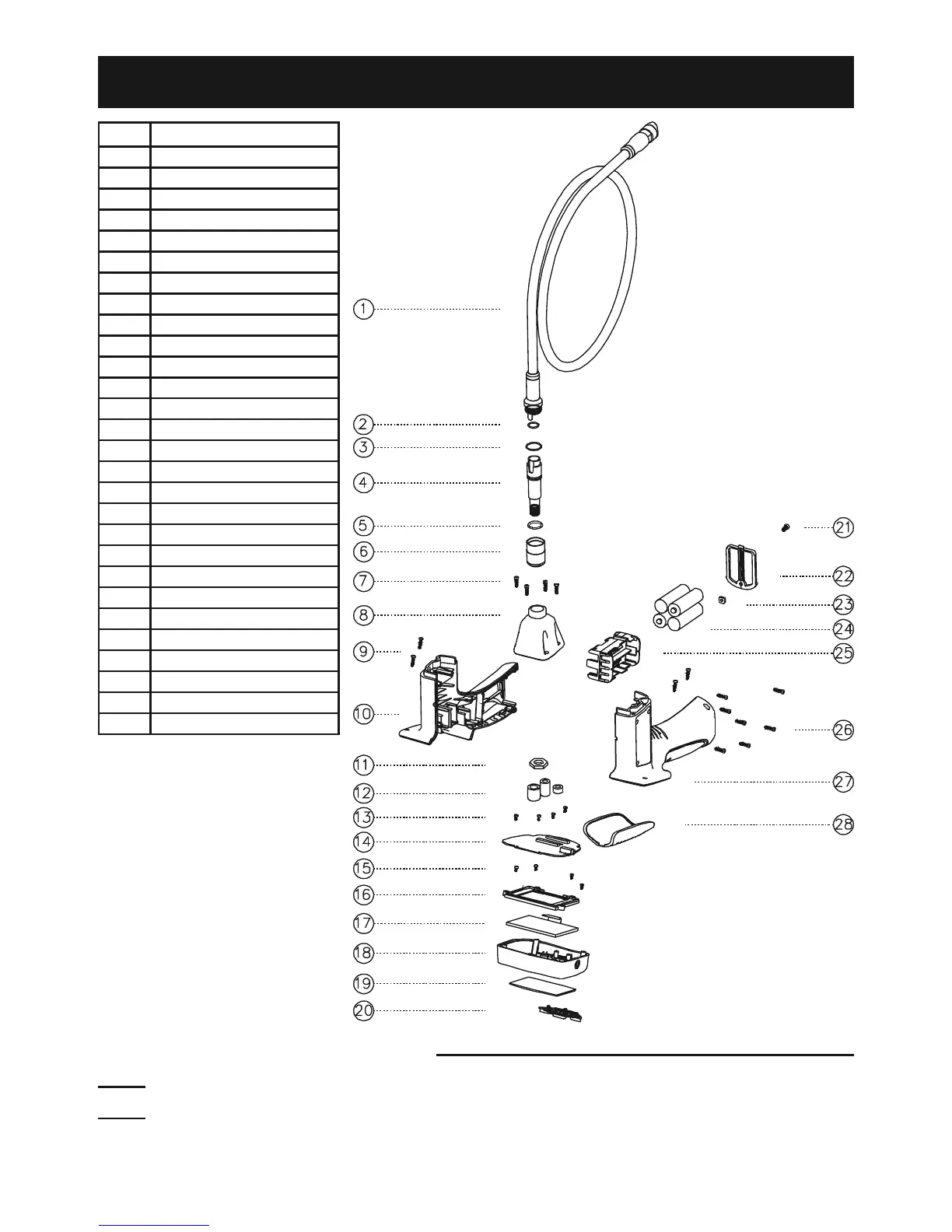

Parts List and Diagram
Part Description
1 Imager Head and Cable
2 Ring
3 Ring
4 Female Connector
5 Ring
6 Cable Connector
7 Screw
8 Cover
9 Screw
10 Front Shell
11 Hex Nut
12 Magnet Ring
13 Screw
14 PCB
15 Screw
16 LCD Back-up
17 LCD
18 Display Shell
19 Lens
20 Button
21 Screw
22 Battery Cover
23 Square Gasket
24 Battery
25 Battery Compartment
26 Screw
27 Back Shell
28 Handheld Display Unit
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
