Page 4 For technical questions, please call 1-888-866-5797. Item 67979
Tool Components
The Camera comes with the 16mm diameter imager head and its
matching accessories -- magnet, hook and cable, shown below.
Note: Because of continuing improvements, actual product
may differ slightly from photos and/or illustrations.

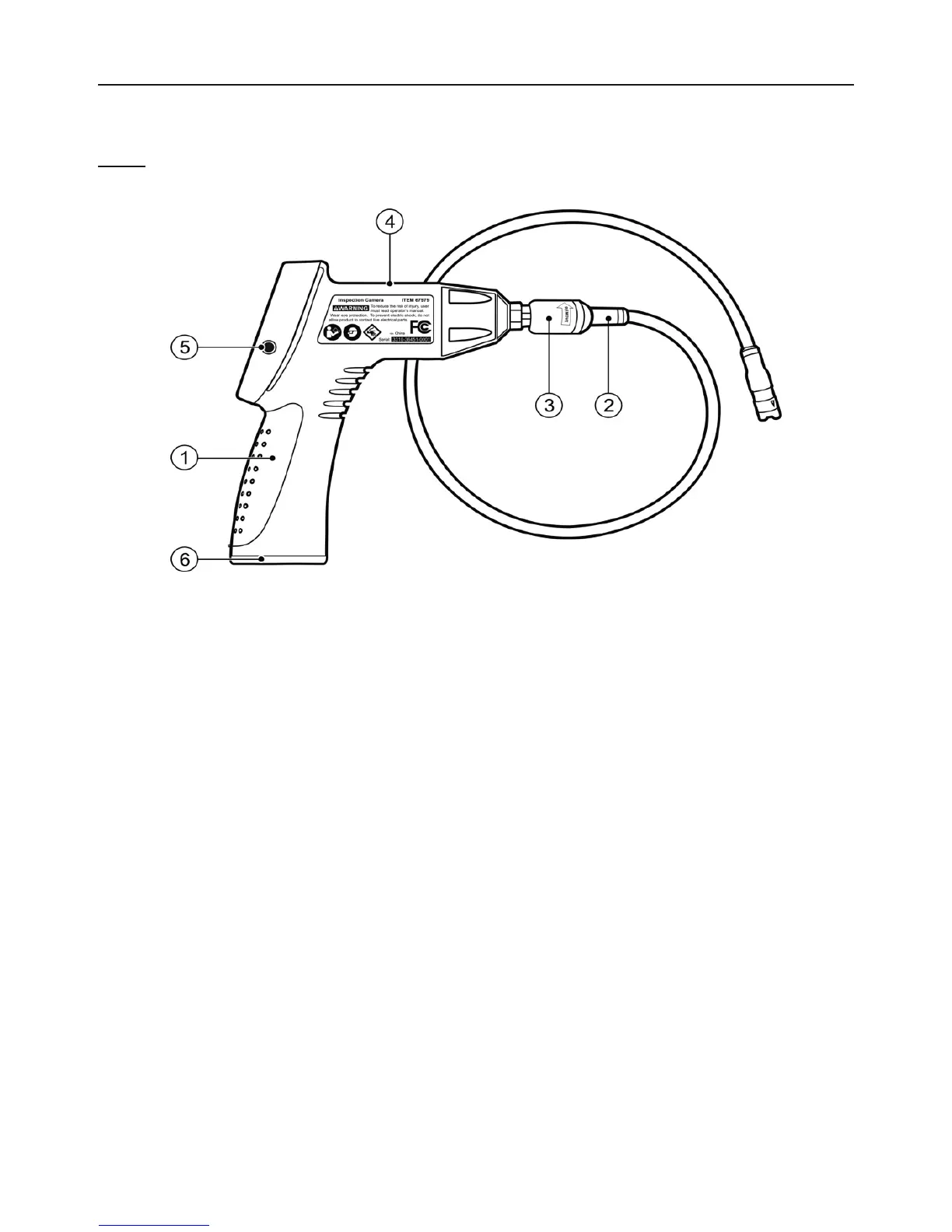

Figure A
1. Handheld Display Unit – Ergonomic tool with comfortable pistol grip design.
2. Imager Head and Cable – Connects to the tool while in use to view images and videos.
3. Cable Connector – Connects the handheld display unit to the imager head and cable.
4. Power Indicator Light – Illuminates green once turning the tool on.
5. Video-Out Port – Connects the tool to a TV with the supplied
video-out cable to view real-time images.
6. Battery Compartment Cap – Covers Battery Compartment.
