Center 232 - Voltage Measurement

6
600V
PEAK ZERO
HOLD
OFF
KW
V
V
A
A
600V CAT
600AIII
4.2 Voltage Measurement:
Switch the main function selector to “ACV” or “DCV” range.
Connect red test lead to “+” terminal and black one to the “ COM ”
terminal. Measure the voltage by touch the test lead tips to the test
circuit where the value of voltage is needed.
Read the result from the LCD panel.

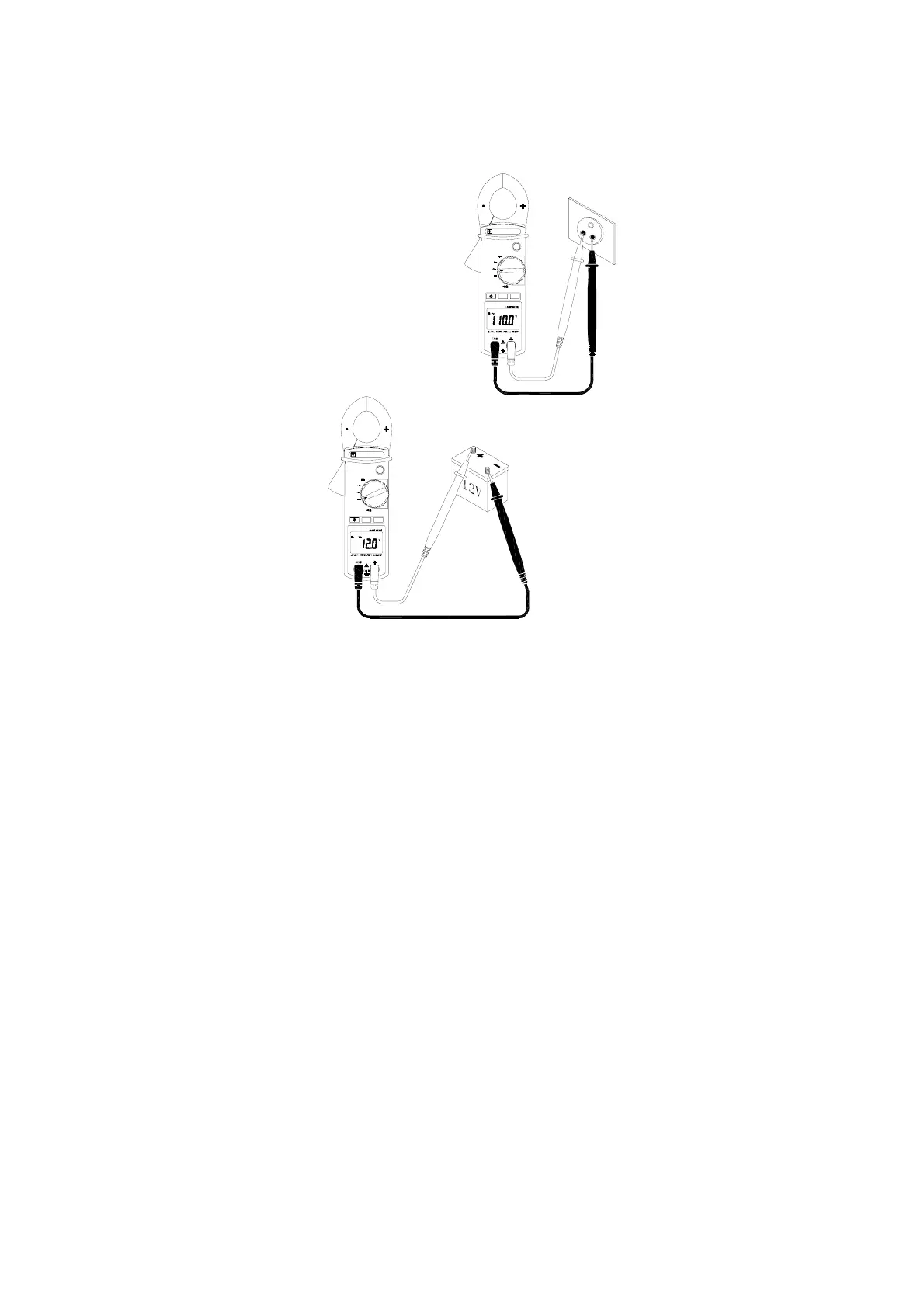

DCV measurement
ACV measurement
PEAK ZERO
600V
CAT III
V
KW
A
V
A
OFF
HOLD
600V CAT
600AIII
