Page 5For technical questions, please call 1-800-444-3353.Item 56101
Specifications
Pump Two stage
Air Outlet Size 1/2″- NPT female
Air Pressure
Auto Shut-Off @ 180 PSI
Restart @ 140 PSI
Air Tank Capacity 30 Gallons
Air Flow Capacity
18 CFM @ 90 PSI
19.5 CFM @ 40 PSI
Oil Capacity 61 oz. (1.8L)
Oil Type
SAE 30W non-detergent
Air Compressor Oil
(SKU 95048, sold separately)
Required Rotation
Counterclockwise viewed from
PTO (Power TakeOff - the output shaft)
Required Engine
Idle Speed
2100 RPM ± 100 RPM
Note: Engine specifications are found in the engine manual supplied with this equipment.

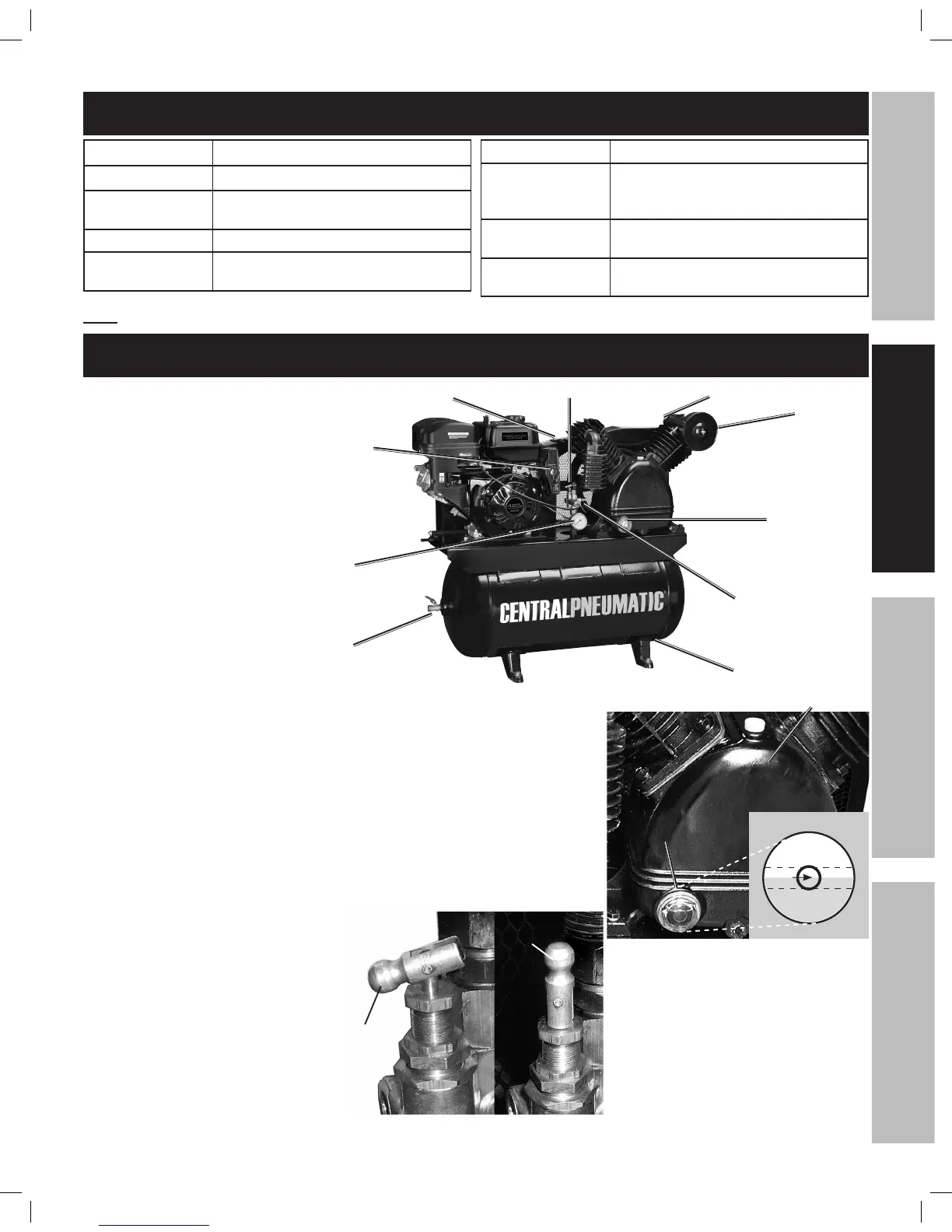

Engine Controls
1. Belt Guard - The Belt
Guard encloses the pulleys
and drive belts. It protects
the user from the moving
parts and allows the large
pulley to direct cooling
air to the Air Pump.
2. Oil Sight Glass - The
oil sight glass shows
proper level of the oil.
Oil level should be at
center of Sight Glass.
3. Tank Drain Valve - The
Air Tank Drain Valve allows
moisture to be removed from
the tank to prevent corrosion.
4. Safety Valve - The Safety Valve automatically releases air if the Air
Tank pressure exceeds the preset maximum. In an emergency, the
ring can be pulled to relieve tank air pressure. There is one
safety valve on the pump and one on the tank.
5. Air Outlet - An air hose attaches to this valve. Air pressure required by
tools is set by an air pressure regulator.
6. Air Storage Tank - The Air Tank is where air pressurized
by the Air Pump is stored for use.
7. Tank Pressure Gauge - The Air Tank Pressure Gauge
displays the air pressure in the tank.
8. Pilot Valve - Open the Pilot Valve
before starting the engine.
It relieves resistance on the engine
to make starting possible.
Rotate the pin so it is vertical to
open it. Once the engine is running,
close the Pilot Valve so the
Compressor can build up pressure.
Oil Sight Glass (19)
Crankcase (16)
OVERFILL
LOW
FULL
OIL LEVEL
Closed
Pilot
Valve
Opened
Pilot Valve
ON/OFF
Switch
Tank
Pressure
Gauge (97)
Tank Safety
Valve (98)
Pilot Valve
Air
Outlet
(105)
Drain Valve (137)
Pump Safety Valve (91)
Oil
Sight
Glass
(19)
Belt Guard Frame (121) &
Belt Guard Cover (129)
Air Filter
Assembly (84)
SAFETYOPERATIONMAINTENANCE SETUP
