Page 18 For technical questions, please call 1-800-444-3353. Item 60328
NOTICE
Clean the Airbrush IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Airbrush.
SAFETY OPERATION MAINTENANCESETUP
Parts List and Diagram

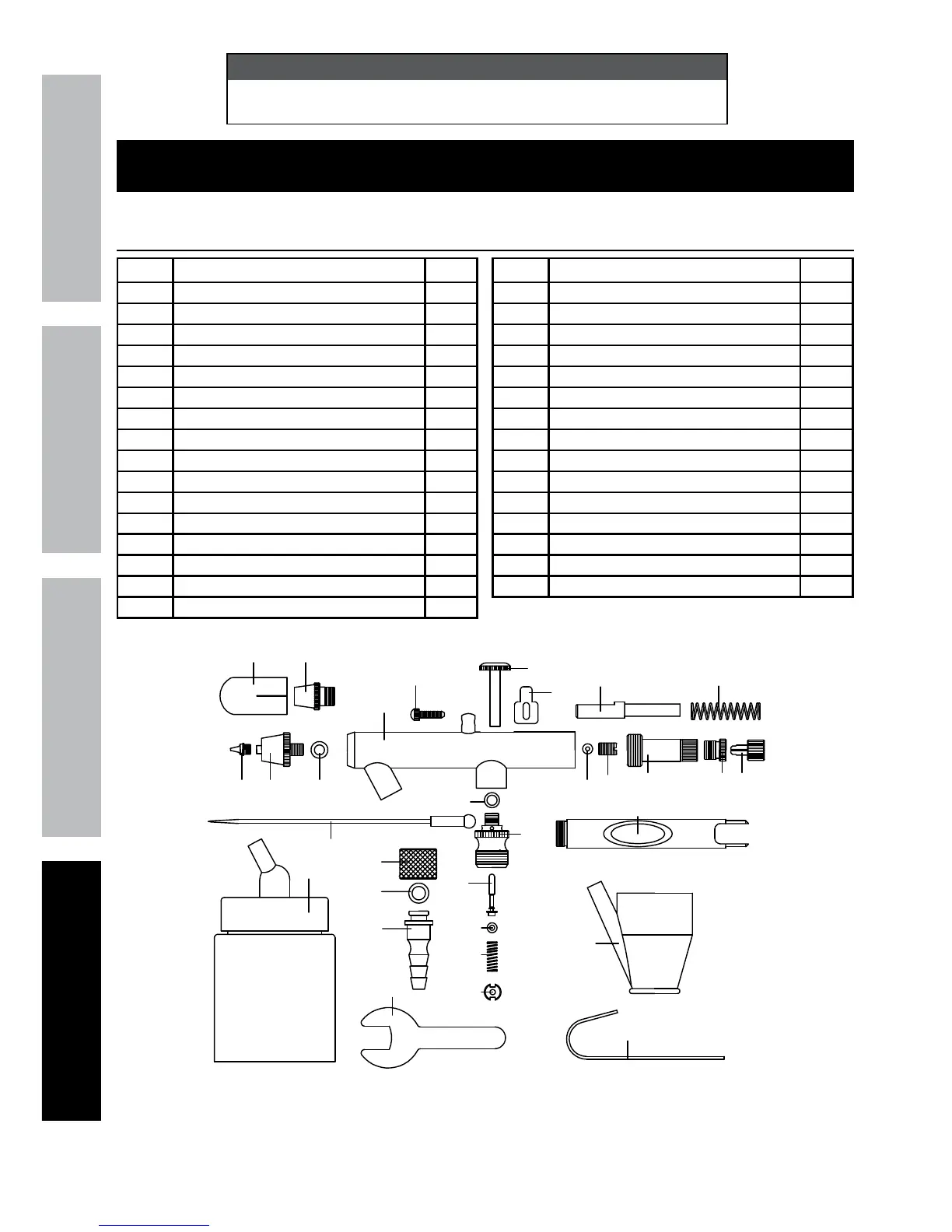

Airbrush Parts List and Assembly Diagram
Part Description Qty
1 Protective Cap 1
2 Air Cap 1
3 Nozzle 1
4 Air Cap Body 1
5 O-Ring 1
6 Packing 1
7 Packing Nut 1
8 Body 1
9 Adjustment Screw 1
10 Trigger 1
11 Rocker 1
12 Needle Adjusting Sleeve 1
13 Needle Chucking Guide 1
14 Valve Screw 1
15 Needle Chucking Nut 1
16 Needle Cover (Handle) 1
Part Description Qty
17 Needle Spring 1
18 Needle 1
19 O-Ring 1
20 Valve Rod 1
21 O-Ring 1
22 Spring 1
23 Valve Screw 1
24 Valve Body 1
25 Hose Connector Nut 1
26 O-Ring for Hose Connector 1
27 Hose Connector 1
28 Metal Cup 1
29 7mm Wrench 1
30 Metal Hanger 1
31 Glass Jar Assembly 1
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
43
6
2
1
19
7
9
10
8
11
13
17
15
12
14
16
21
20
22
23
18
31
28
29
30
5
24
25
26
27
25.
27.
26.
