NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.

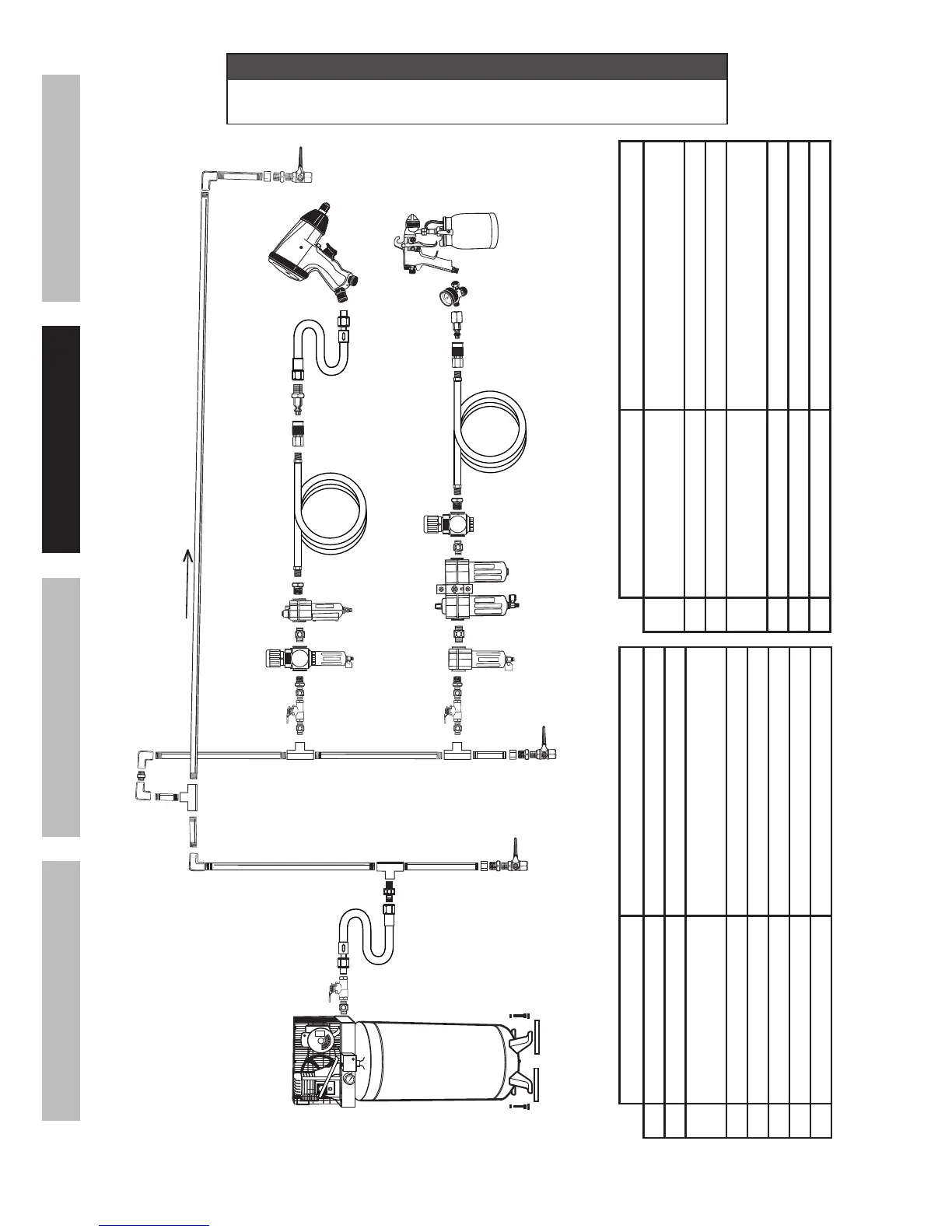

Figure B: Stationary Air Supply Setup
N
L
L O
M
C
C
Non-lubricated
Lubricated
Tools
H
I
I
J
J
K
H
F
G
E
Slope
F
F
B B
A A
C
D
Description Function
A Vibration Pads For noise and vibration reduction
B Anchor Bolts Secures air compressor in place
C Ball Valve
Isolates sections of system
for maintenance
D Isolation Hose For vibration reduction
E Main Air Line - 3/4″ min. Distributes air to branch lines
F Ball Valve To drain moisture from system
G Branch Air Line -1/2″ min. Brings air to point of use
H Air Hose Connects air to tool
Description Function
I Filter
Prevents dirt and condensation
contamination
J Regulator Adjusts air pressure to tool
K Lubricator* For air tool lubrication
L Coupler and Plug
Provides quick connection
and release
M Leader Hose* Increases coupler life
N Air Cleaner / Dryer* Prevents moisture contamination
O Air Adjusting Valve* For fine tuning airflow at tool
*Optional components.
