NOTICE
Clean the Spray Gun IMMEDIATELY after use.
Delayed or inadequate cleaning will permanently clog the Spray Gun.
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this
product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
Workpiece and Work Area Set Up
1. Designate a work area that is clean
and well-lit. The work area must not
allow access by children or pets to
prevent distraction and injury.
2. Route the air hose along a safe
path to reach the work area without
creating a tripping hazard or exposing
the air hose to possible damage.
The air hose must be long enough to reach
the work area with enough extra length
to allow free movement while working.
3. Before spraying, mask nearby
objects not being sprayed and lay
cloths (not included) on the floors.
Nozzle
Trigger
Lock Ring
Fluid
Knob
Air Inlet
Cup

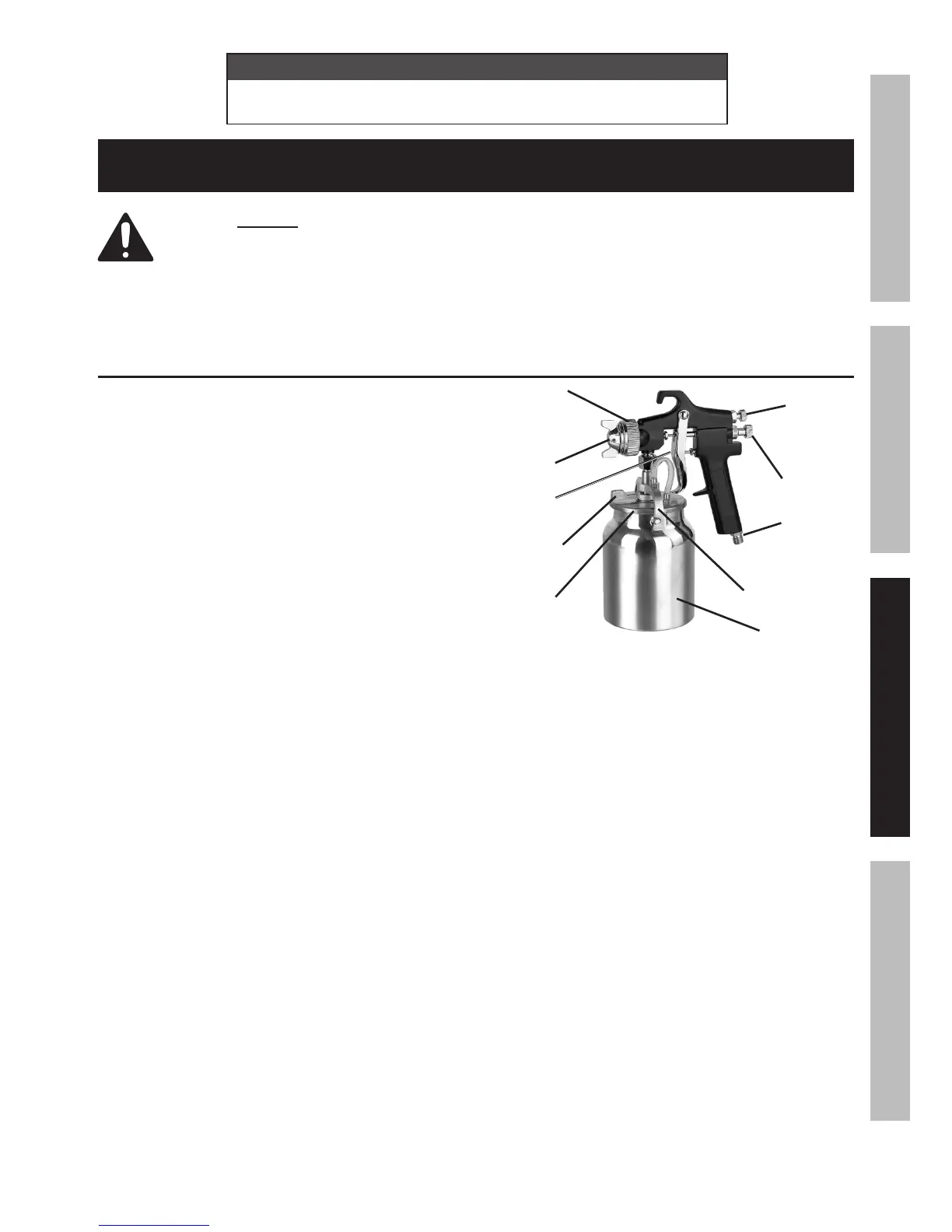

Figure C: Components and Controls
Cup Locking
Lever
Cup Cover
Cup Mounting
Yoke
Pattern
Adjustment
Knob
