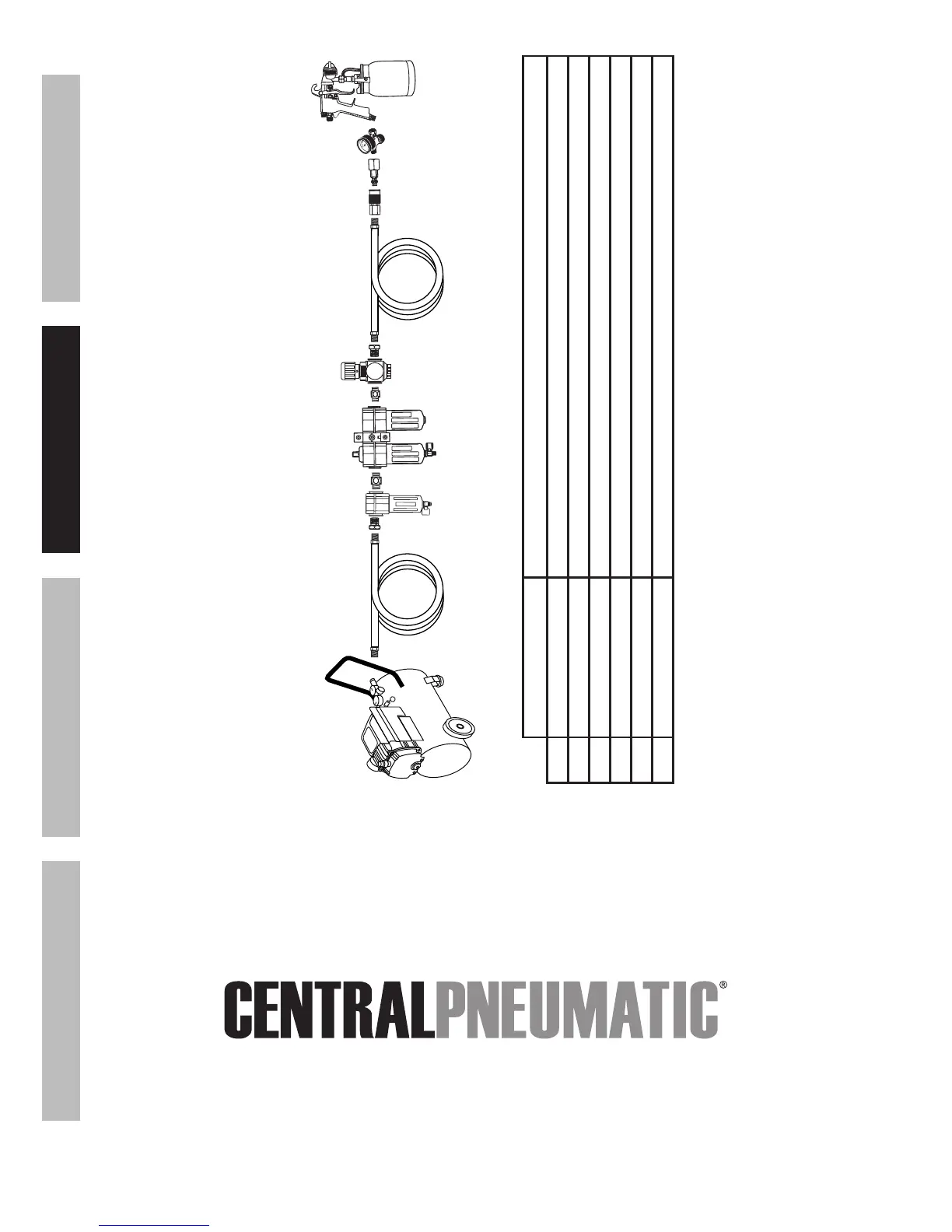

Figure A: Portable Air Supply Setup
C
A
E F
A
B
D
Description Function
A Air Hose Connects air to tool
B Filter Prevents dirt and condensation from damaging tool or workpiece
D Regulator Adjusts air pressure to tool
E Coupler and Plug Provides quick connection and release
C Air Cleaner / Dryer* Prevents water vapor from damaging workpiece
F Air Adjusting Valve* For fine tuning airflow at tool
*Optional components.
