5-5. Moving the Clamp Module
The tube clamp module is detachable and users can change its mounting place either to
the left or to the right side of the mixer.
(1) Turn power switch off.

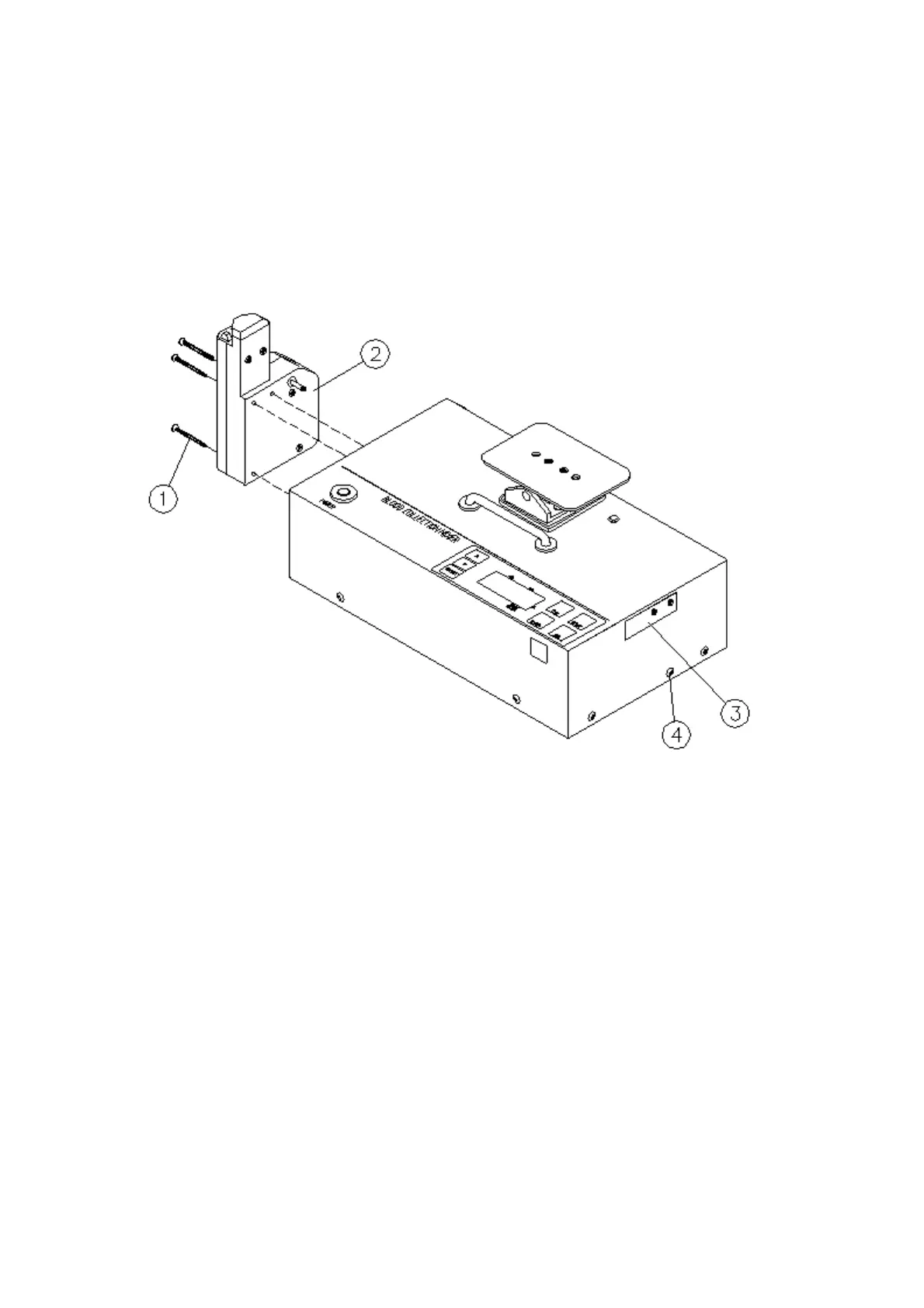

(2) Remove the three screws (# 1), and pull out the clamp module (# 2).
(3) Remove the two screws on the side panel (# 3) and the one screw (# 4).
(4) Install the clamp module with three screws.
(5) Assemble the side panel and screws.
