Centurion Auto-Mate - Page 13

"S4"
Figure 1
Figure 2
+/- 180mm
"S5"
NOTE: GEARBOX JUST CLEARS
THE GATE IN THE FULLY OPEN
POSITION
PILLAR
W
A
L
L

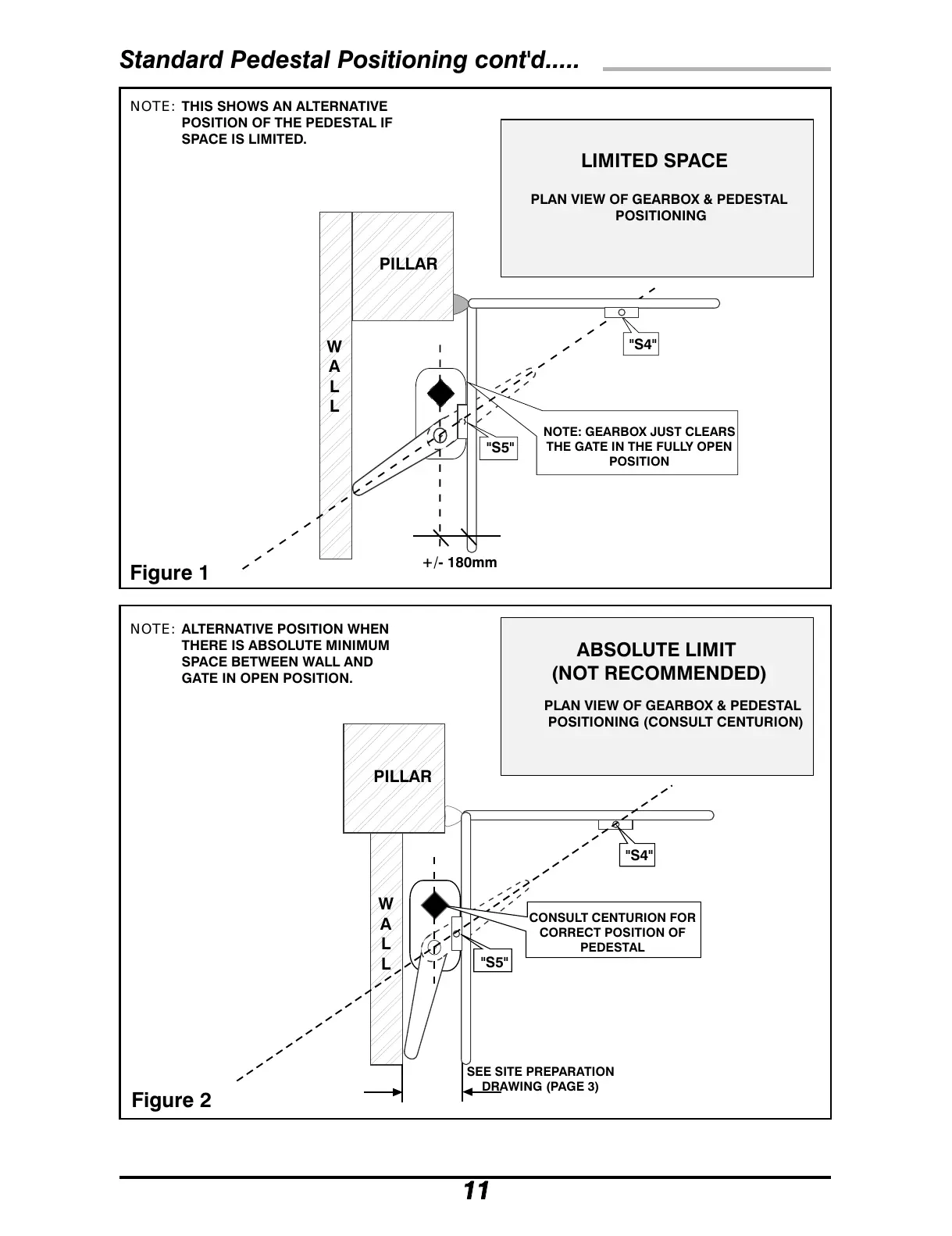

Standard Pedestal Positioning cont'd.....
PILLAR
"S4"
"S5"
SEE SITE PREPARATION
DRAWING (PAGE 3)
1111
CONSULT CENTURION FOR
CORRECT POSITION OF
PEDESTAL
PLAN VIEW OF GEARBOX & PEDESTAL
POSITIONING
NOTE:
THIS SHOWS AN ALTERNATIVE
POSITION OF THE PEDESTAL IF
SPACE IS LIMITED.
NOTE:
ALTERNATIVE POSITION WHEN
THERE IS ABSOLUTE MINIMUM
SPACE BETWEEN WALL AND
GATE IN OPEN POSITION.
LIMITED SPACE
PLAN VIEW OF GEARBOX & PEDESTAL
POSITIONING (CONSULT CENTURION)
ABSOLUTE LIMIT
(NOT RECOMMENDED)
W
A
L
L
