Centurion Auto-Mate - Outward Swing Pedestal Positioning; Wall Mount Pedestals

GATE SHOWN
CLOSED
1212
STEPS 9 & 10
- WHEN CONCRETE IS DRY, BOLT GEARBOX
ONTO PEDESTAL WITH 4 BOLTS M10 x 20,
AND WASHERS.
- LOOSELY FIT DRIVE ARM TO OUTPUT SHAFT
(USING M12 x 25 CAP SCREW) .
- CUT CONNECTING ARM TO FIT INSIDE
ADAPTOR PIECE, DEEPER THAN THE
FIXING HOLE.
CONNECTING
ARM
DRIVE ARM
FIXING HOLE
M12 x 25 CAP SCREW
M10 x 20
BOLTS
MOUNT GEARBOX ONTO
PEDESTAL AND BOLT
INTO PLACE
108 - 120mm
CONCRETE
BEND OUT
TABS
CONDUIT FOR MOTOR & LIMIT SWITCH CABLES
500mm
MIN
300mm
MIN
Standard Pedestal Positioning cont'd.....

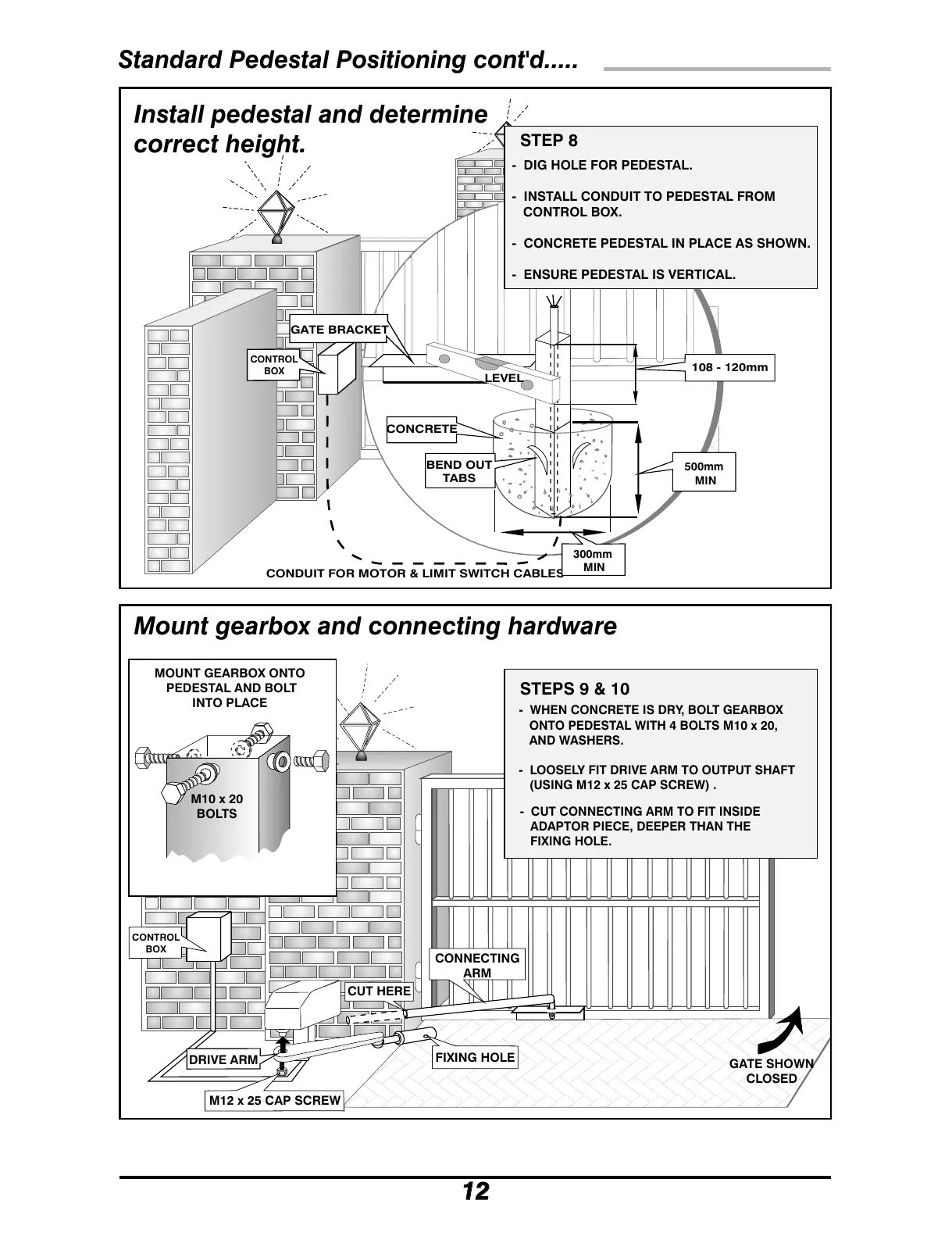

- DIG HOLE FOR PEDESTAL.
- INSTALL CONDUIT TO PEDESTAL FROM
CONTROL BOX.
- CONCRETE PEDESTAL IN PLACE AS SHOWN.
- ENSURE PEDESTAL IS VERTICAL.
STEP 8
GATE BRACKET
CONTROL
BOX
CUT HERE
Install pedestal and determine
correct height.
Mount gearbox and connecting hardware
LEVEL
CONTROL
BOX
