NUT
FIXING
HOLE
M8 x 40 SET SCREW
ADAPTOR
PIECE
CONNECTING
ARM
SETUP
LINE
SETUP
LINE
ROTATE CONNECTING ARMS
AND ADAPTOR PIECES TO GET
GATE END POINTS TO ALIGN
MOTOR
ALIGN GATE
END POINTS
180
o
180
o
THE CORRECT ARC
FOR LHS DRIVE ARM
THE CORRECT ARC
FOR RHS DRIVE ARM
CONNECTING
ARM
ADAPTOR PIECE
BALL JOINT
LOCK NUT
DRIVE ARM
MOTOR
1313

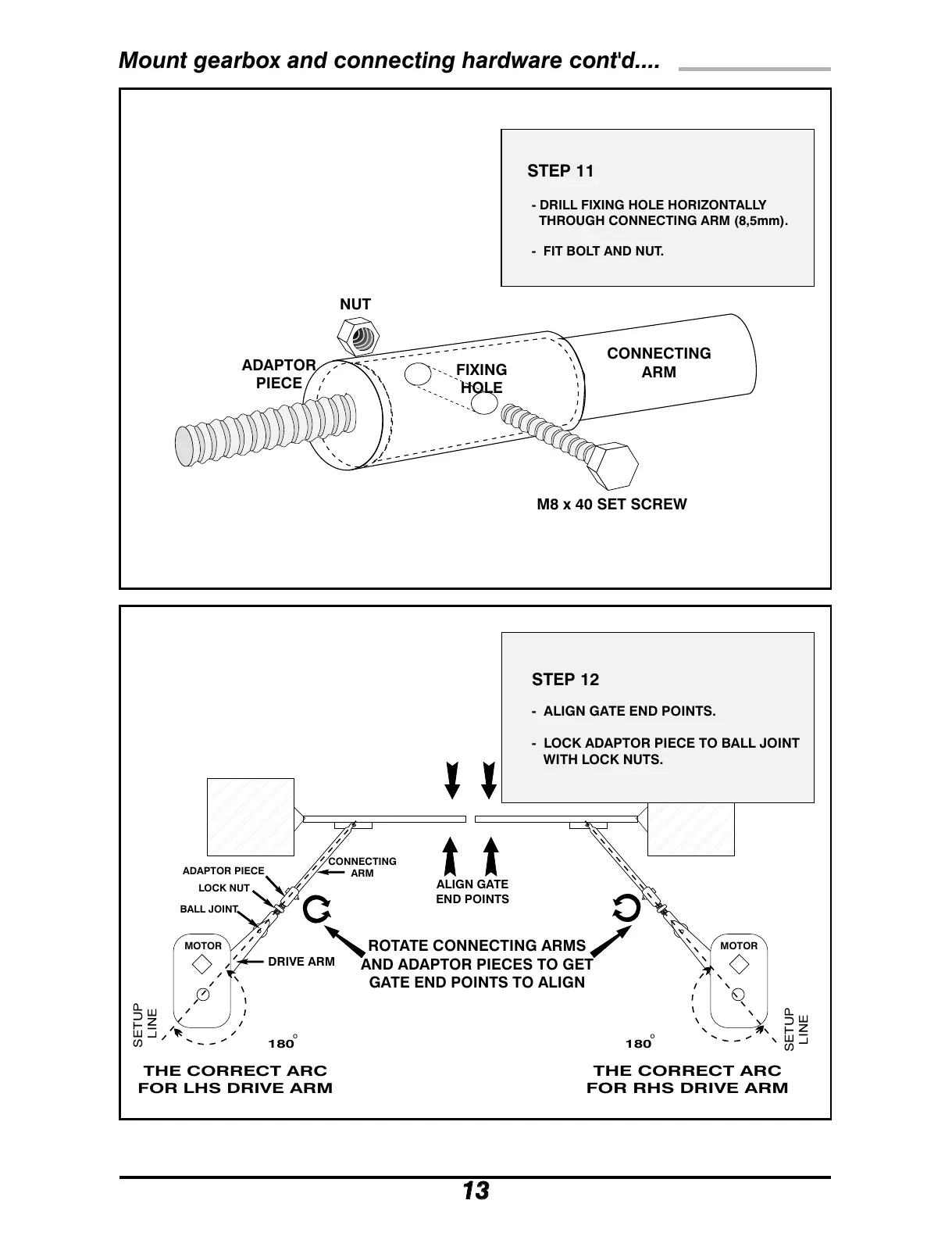

STEP 12
- ALIGN GATE END POINTS.
- LOCK ADAPTOR PIECE TO BALL JOINT
WITH LOCK NUTS.
STEP 11
- DRILL FIXING HOLE HORIZONTALLY
THROUGH CONNECTING ARM (8,5mm).
- FIT BOLT AND NUT.
Mount gearbox and connecting hardware cont'd....
