XX
S5
XX
SETUP LINE
GATE SHOWN
OPEN
PLUMB BOB
S4

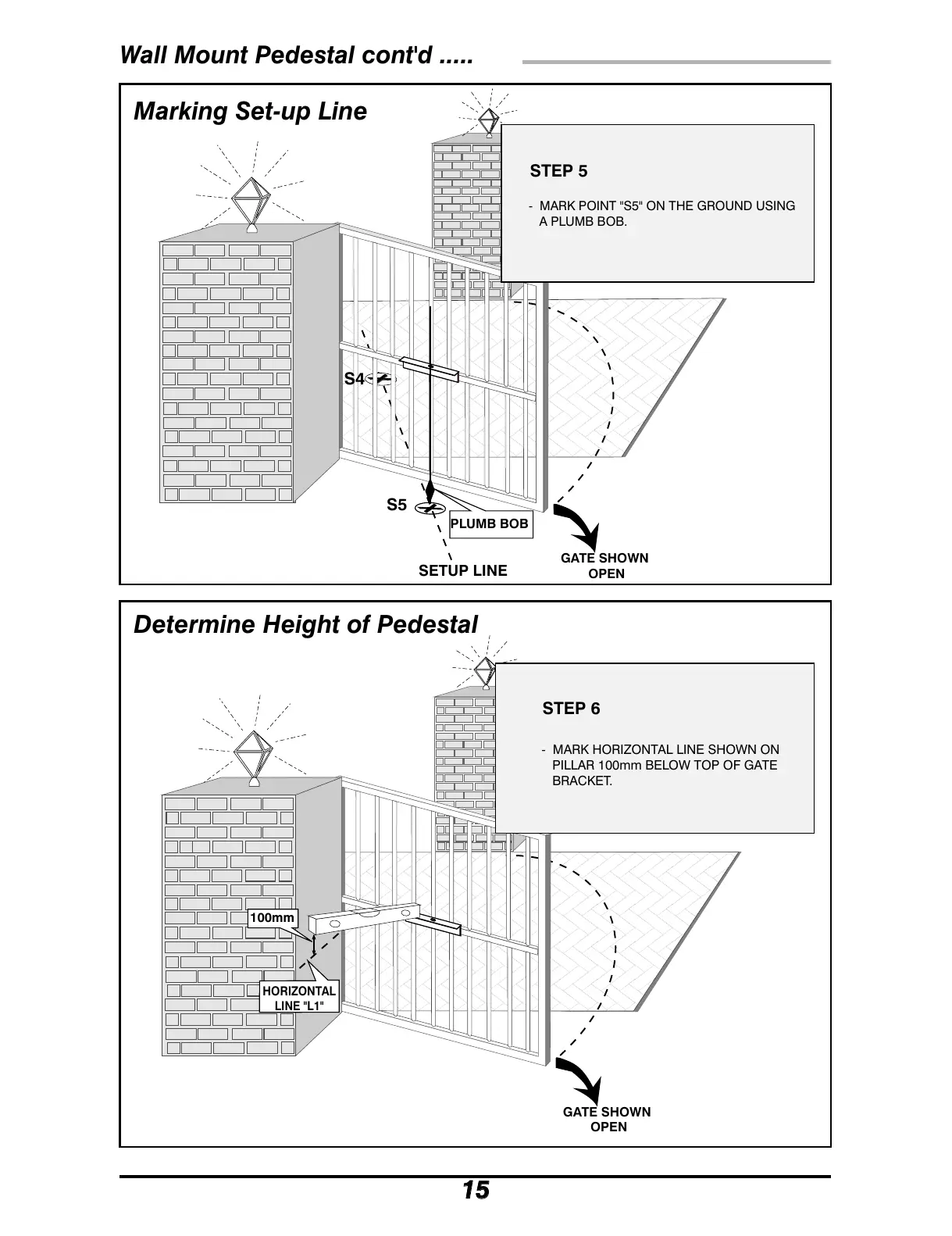

Wall Mount Pedestal cont'd .....
1515
GATE SHOWN
OPEN
HORIZONTAL
LINE "L1"
100mm
STEP 6
- MARK HORIZONTAL LINE SHOWN ON
PILLAR 100mm BELOW TOP OF GATE
BRACKET.
STEP 5
- MARK POINT "S5" ON THE GROUND USING
A PLUMB BOB.
Marking Set-up Line
Determine Height of Pedestal
