CONTROL
BOX
STEP 8
- INSTALL CABLE.
- BOLT WALL BRACKET TO WALL
USING AT LEAST M12 RAWL BOLTS.
GATE SHOWN
CLOSED
1616
GATE SHOWN
CLOSED
- MOVE WALL BRACKET LEFT OR RIGHT ALONG
LINE L1 UNTIL PLUM-BOB IS 60mm BACK FROM
SETUP LINE.
STEP 7
90
L1L1
o
USE M12
RAWLBOLTS
97mm
74.5mm
60mm
PLUMB-BOB
59mm
L1
T
N
SE
U
P
LI E
S4
S5
XX
XX

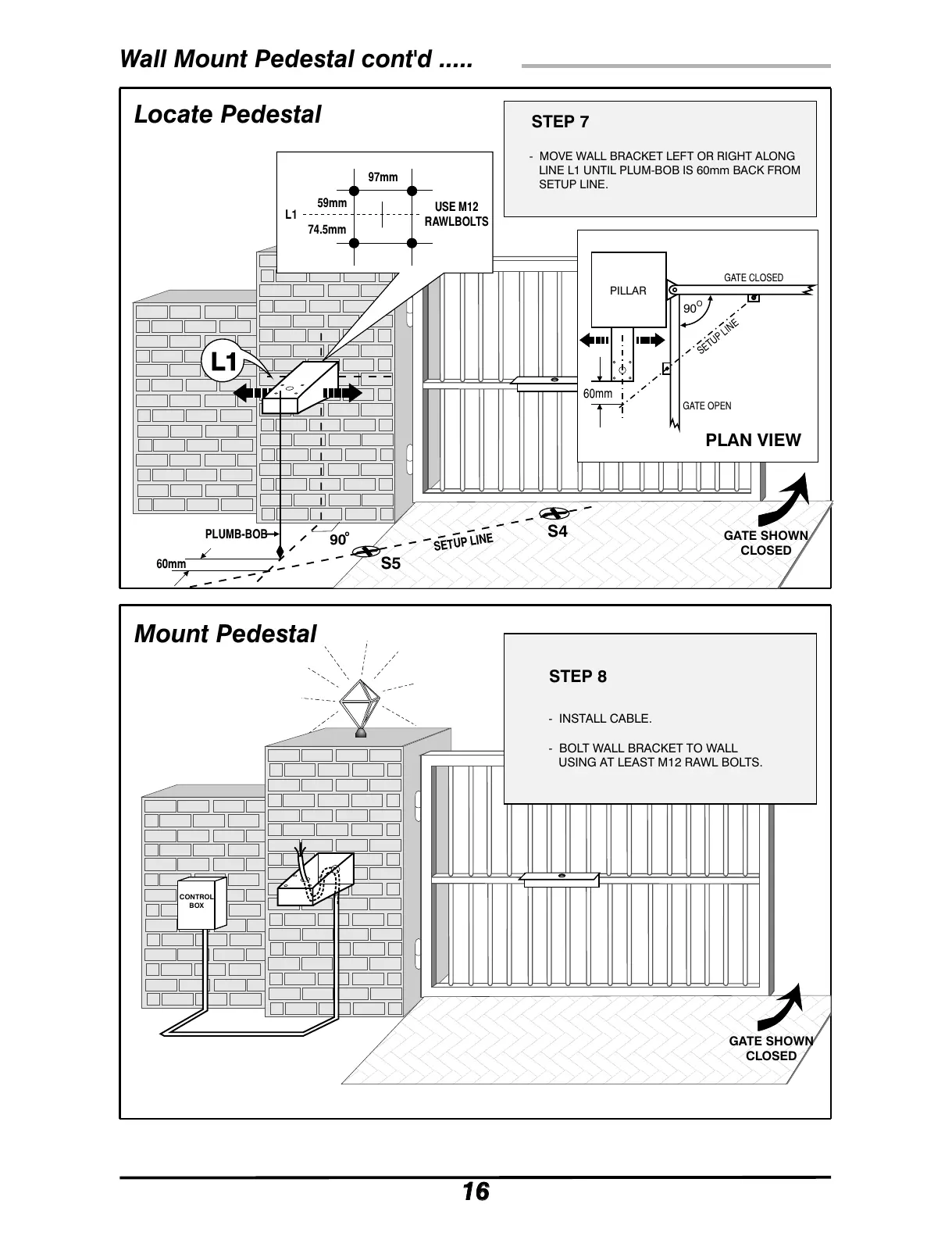

Wall Mount Pedestal cont'd .....
PILLAR
O
90
60mm
GATE OPEN
GATE CLOSED
E
TUP LI
N
S E
PLAN VIEW
Locate Pedestal
Mount Pedestal
