Centurion Auto-Mate - Motor and Limit Switch Connections

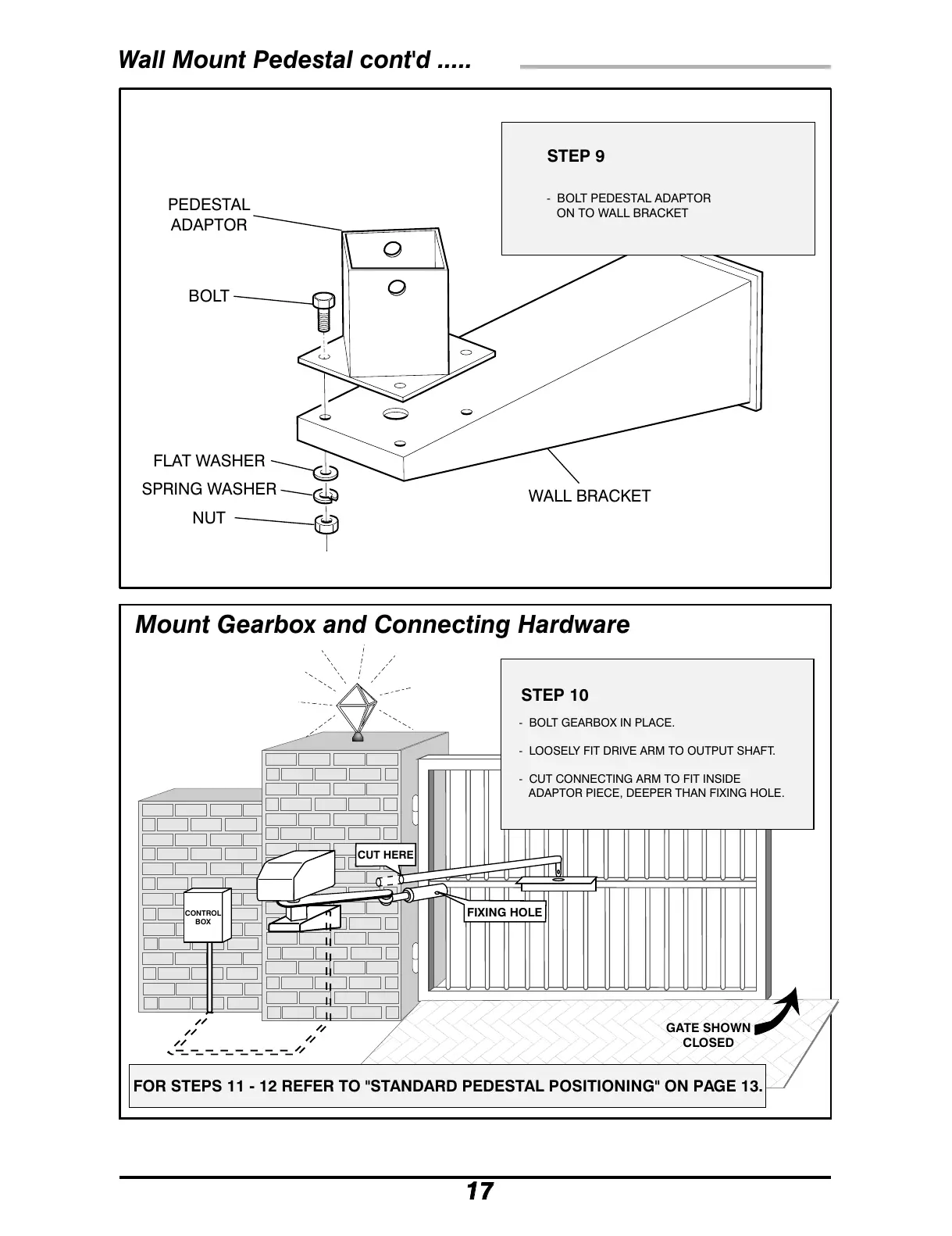

Wall Mount Pedestal cont'd .....
1717
GATE SHOWN
CLOSED
FIXING HOLE
FOR STEPS 11 - 12 REFER TO "STANDARD PEDESTAL POSITIONING" ON PAGE 13.
CUT HERE
STEP 10
- BOLT GEARBOX IN PLACE.
- LOOSELY FIT DRIVE ARM TO OUTPUT SHAFT.
- CUT CONNECTING ARM TO FIT INSIDE
ADAPTOR PIECE, DEEPER THAN FIXING HOLE.
CONTROL
BOX
STEP 9
- BOLT PEDESTAL ADAPTOR
ON TO WALL BRACKET
BOLT
PEDESTAL
ADAPTOR
WALL BRACKET
FLAT WASHER
SPRING WASHER
NUT
Mount Gearbox and Connecting Hardware
