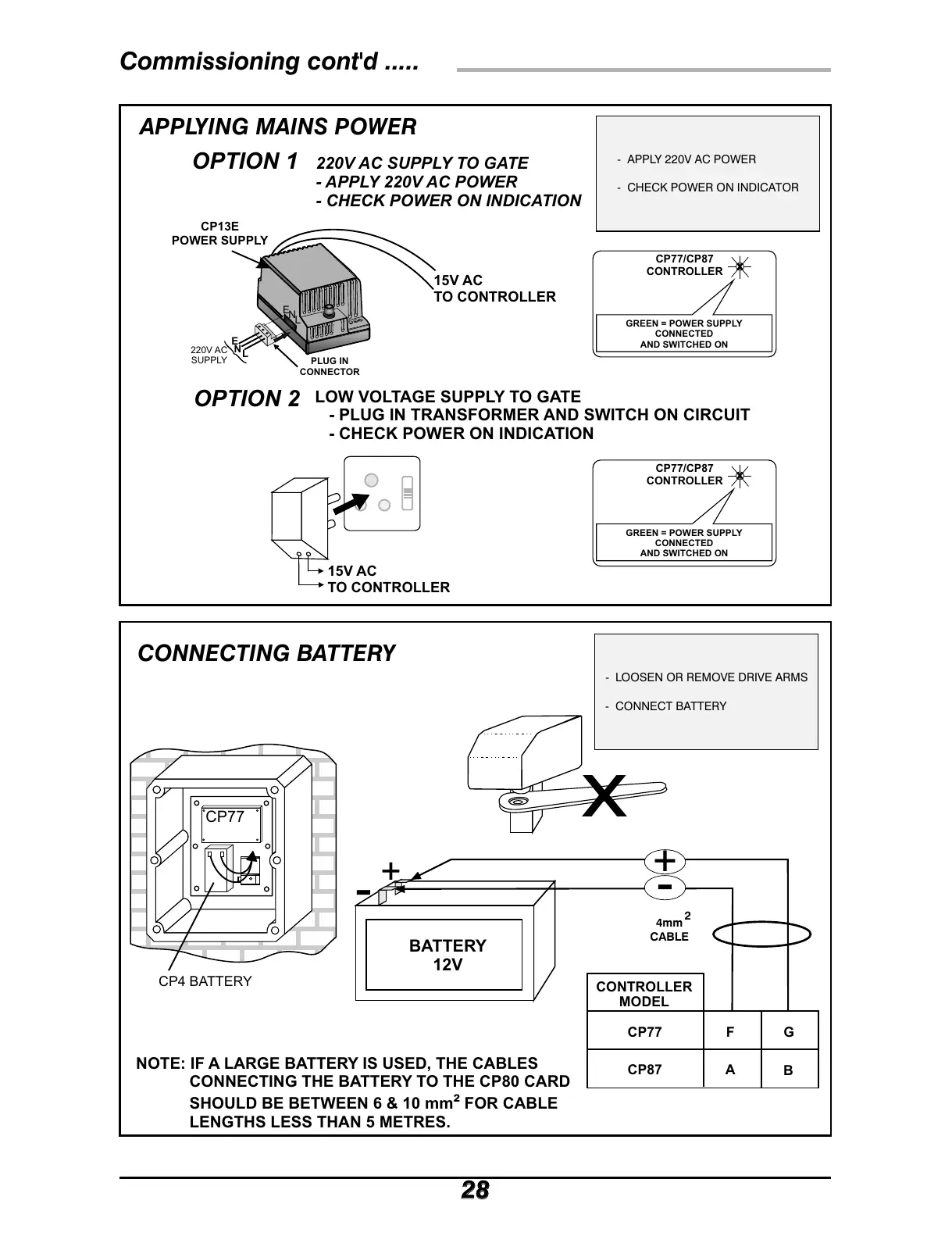

Commissioning cont'd .....
2828
x
APPLYING MAINS POWER
CONNECTING BATTERY
OPTION 1 220V AC SUPPLY TO GATE
- APPLY 220V AC POWER
- CHECK POWER ON INDICATION
OPTION 2
LOW VOLTAGE SUPPLY TO GATE
- PLUG IN TRANSFORMER AND SWITCH ON CIRCUIT
- CHECK POWER ON INDICATION
15V AC
TO CONTROLLER
15V AC
TO CONTROLLER
xx
CP77/CP87
CONTROLLER
GREEN = POWER SUPPLY
CONNECTED
AND SWITCHED ON
xx
CP77/CP87
CONTROLLER
GREEN = POWER SUPPLY
CONNECTED
AND SWITCHED ON
L
N
E
L
N
E
220V AC
SUPPLY
PLUG IN
CONNECTOR
CP13E
POWER SUPPLY
4mm
CABLE
2
CONTROLLER
MODEL
CP77
CP87
F
A
G
B
+
-
-
BATTERY
12V
NOTE: IF A LARGE BATTERY IS USED, THE CABLES
CONNECTING THE BATTERY TO THE CP80 CARD
SHOULD BE BETWEEN 6 & 10 mm² FOR CABLE
LENGTHS LESS THAN 5 METRES.
+
CP4 BATTERY
CP77
- APPLY 220V AC POWER
- CHECK POWER ON INDICATOR
- LOOSEN OR REMOVE DRIVE ARMS
- CONNECT BATTERY
