Commissioning cont'd .....
2929
ARROW SHOWS
CORRECT DIRECTION(S)
TO CLOSE GATE(S)
(VIEWED FROM INSIDE
THE PROPERTY)
L.H.S. GATE MOTOR R.H.S. GATE MOTOR
}
PE
N
O
OPE
N
CLOSED
S
CLO ED
COMMON
COMMON
SWOP MOTOR POLARITY TO
CHANGE MOTOR DIRECTION
MOTOR
MOTOR
EARTH
WIRE
EARTH
WIRE
TRIGGER CONTROL CARD
MAKE SURE MOTOR DIRECTION(S) CORRESPOND(S) WITH STATUS LED.
(COMPARE FIG 1 AND FIG 2 BELOW).
SWOP MOTOR WIRES TO GIVE CORRECT MOTOR ROTATION (IF NECESSARY). (SEE FIG 3a BELOW).
TEST THAT MOTOR STOPS WHEN IT HITS THE LIMIT SWITCH.
SWOP LIMIT SWITCH WIRES IF MOTOR DOES NOT STOP ON LIMIT SWITCH (SEE FIG 3b BELOW).
SWOP TO STOP MOTOR(S) ON LIMIT(S) (IF NECESSARY)
--
--
--
--
--
}
}

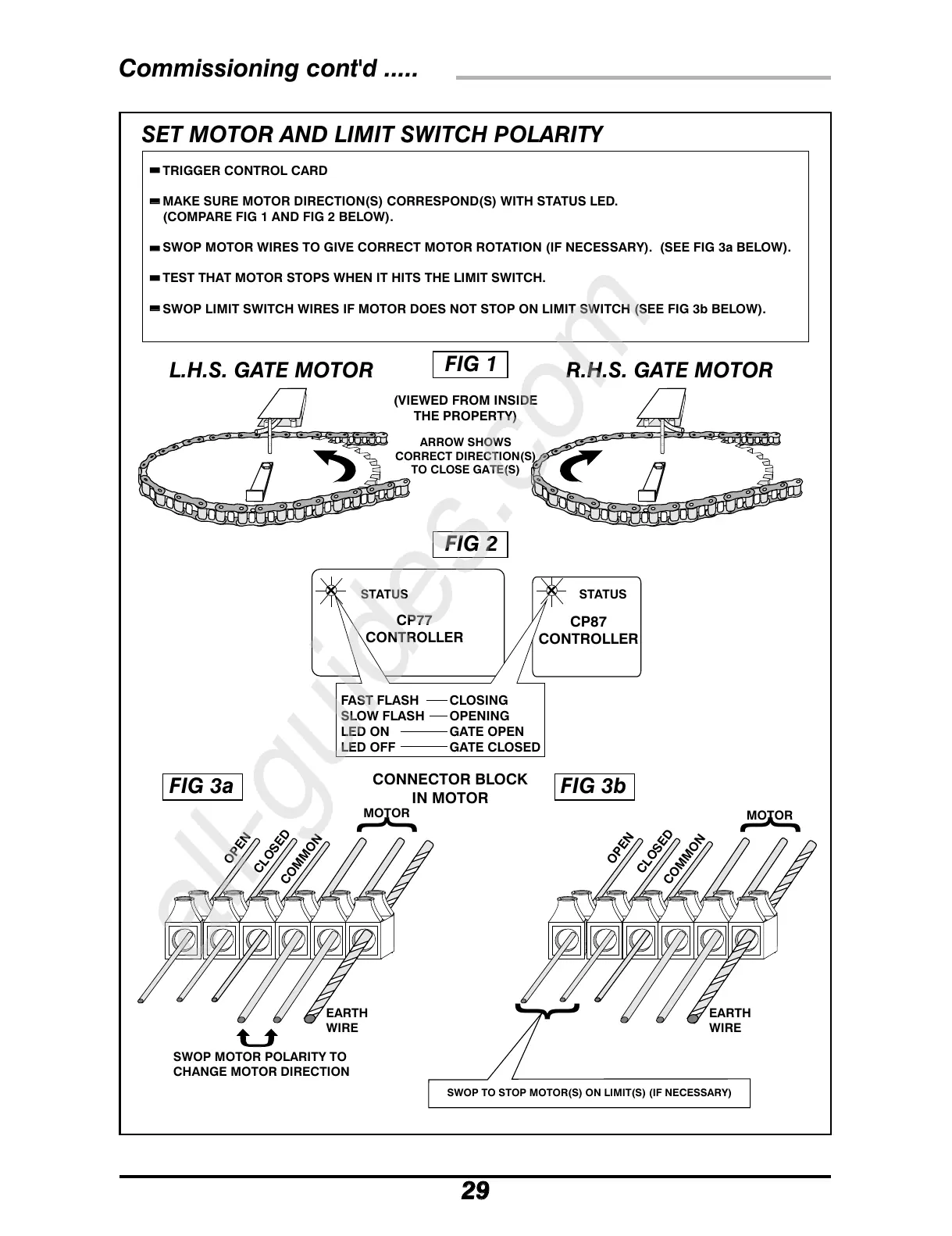

SET MOTOR AND LIMIT SWITCH POLARITY
FIG 1
FIG 2
FIG 3a
CONNECTOR BLOCK
IN MOTOR
FIG 3b
xx xx
CP77
CONTROLLER
CP87
CONTROLLER
FAST FLASH
SLOW FLASH
LED ON
LED OFF
CLOSING
OPENING
GATE OPEN
GATE CLOSED
STATUS STATUS
