Centurion D10 - Technical Specifications; Preparation of Site; General Considerations for the Installation

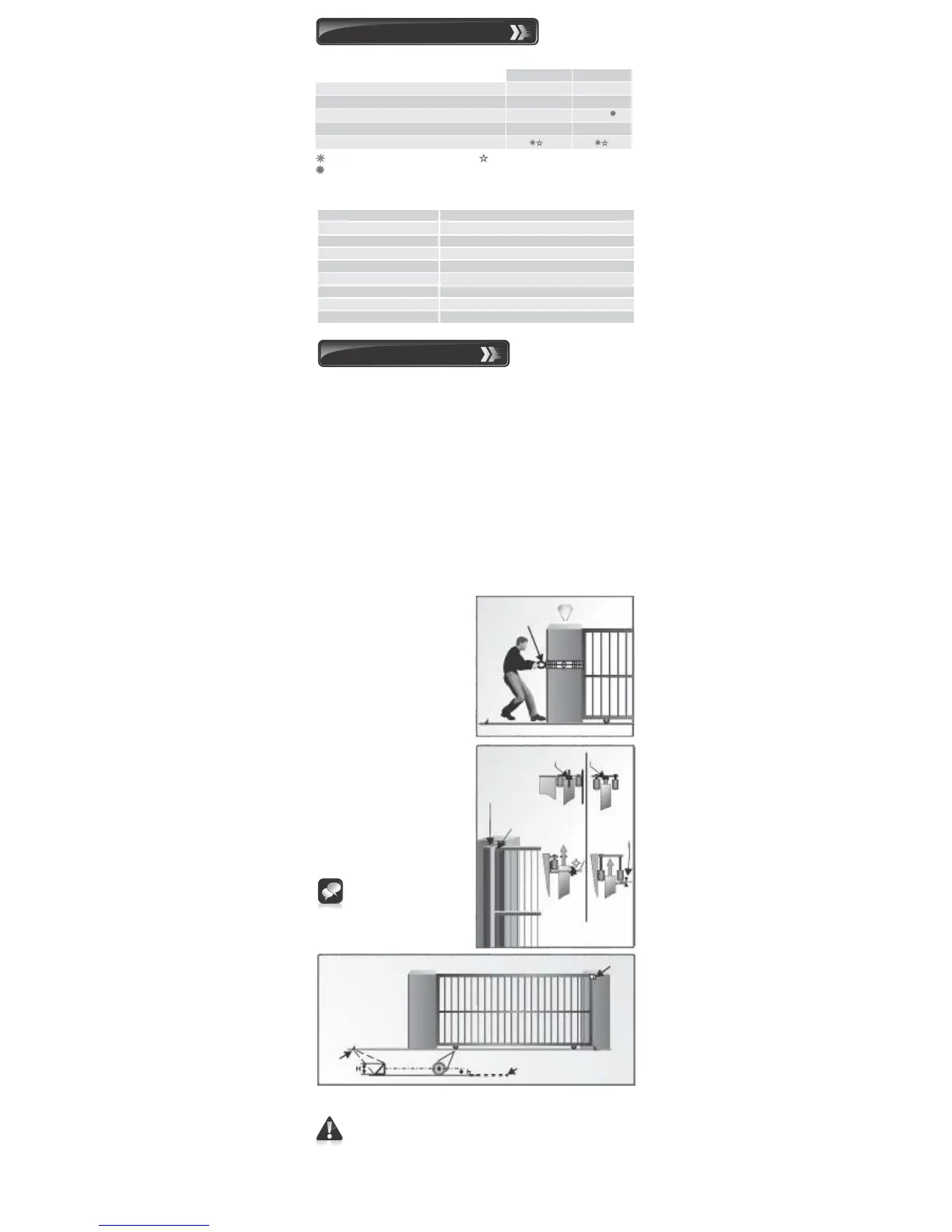

6. Technical Specifications
Based on a push force of less than 50% of rated With a brush replacement interval of two years
It is a 24V DC battery-operated unit with the following limitations:
D10 D10 Turbo
Operator push force - starting 40kgf 20kgf
Operator push force - rated 30kgf 15kgf
Gate mass – maximum 1000kg 1000kg
Gate length – maximum 100m 50m
Maximum numbers of operations per day 750 750
Depends on speed setting
Fit endstops capable of stopping the gate at rated speed.
Make H>h to ensure gate will not jump over endstop as shown
above
Ø16mm
Endstop
Endstop
Endstops
7. Preparation of site
General considerations for the installation
For comprehensive information, please refer to the full installation
manual available for download on www.centsys.com.au
Install the gate operator only if:

It will not pose a hazard to the public

There is sufficient clearance to a roadway and/or public
thoroughfares

The installation will meet all municipal and/or local authority
requirements once completed

The gate mass, length and application is within the operator
specifications

The gate is in good working order, meaning:

That it moves freely

Does not move on its own if left in any position

It can be installed to have sufficient clearance between
moving parts when opening and closing to reduce the risk of
personal injury and entrapment

Pushbuttons or keyswitches, when required, can be positioned
so that the gate is in line of sight of the operator
Make sure the gate mass,
starting - and rated-pull-force
limitations are not exceeded.
Guide-rollers must ensure that
the gate is held vertically through
the entire length of the gate
travel. For improved safety fit
additional support posts to
prevent gate from falling over
if guide rollers fail.
Ensure that the gate
cannot be lifted off the
motor pinion with the
anti-lift bracket fitted
Pull scale
Guide-rollers
Additional
support post
GAP<5mm
GAP<5mm
GAP<5mm
GAP<5mm
Typical anti-lift
arrangements
Since the D10 Turbo operates at exceptionally high speeds, it is
mandatory to install the following additional safety equipment in order
to ensure the safest possible installation:

Opening safety beams, which will prevent the gate from moving
should anyone be in the path of the gate while opening
D10 Turbo maximum operating speed for corresponding gate mass
Gate mass (kg) Operator max. running speed (m/min)
240 50
300 42
400 36
500 32
600 29
700 27
800 25
900 24
1000 23
