Centurion Maxi-Mate - Outward Swing, Pedestal Positioning; Wall Mount Pedestals (Gate Inward Opening); Position Gate Bracket

O

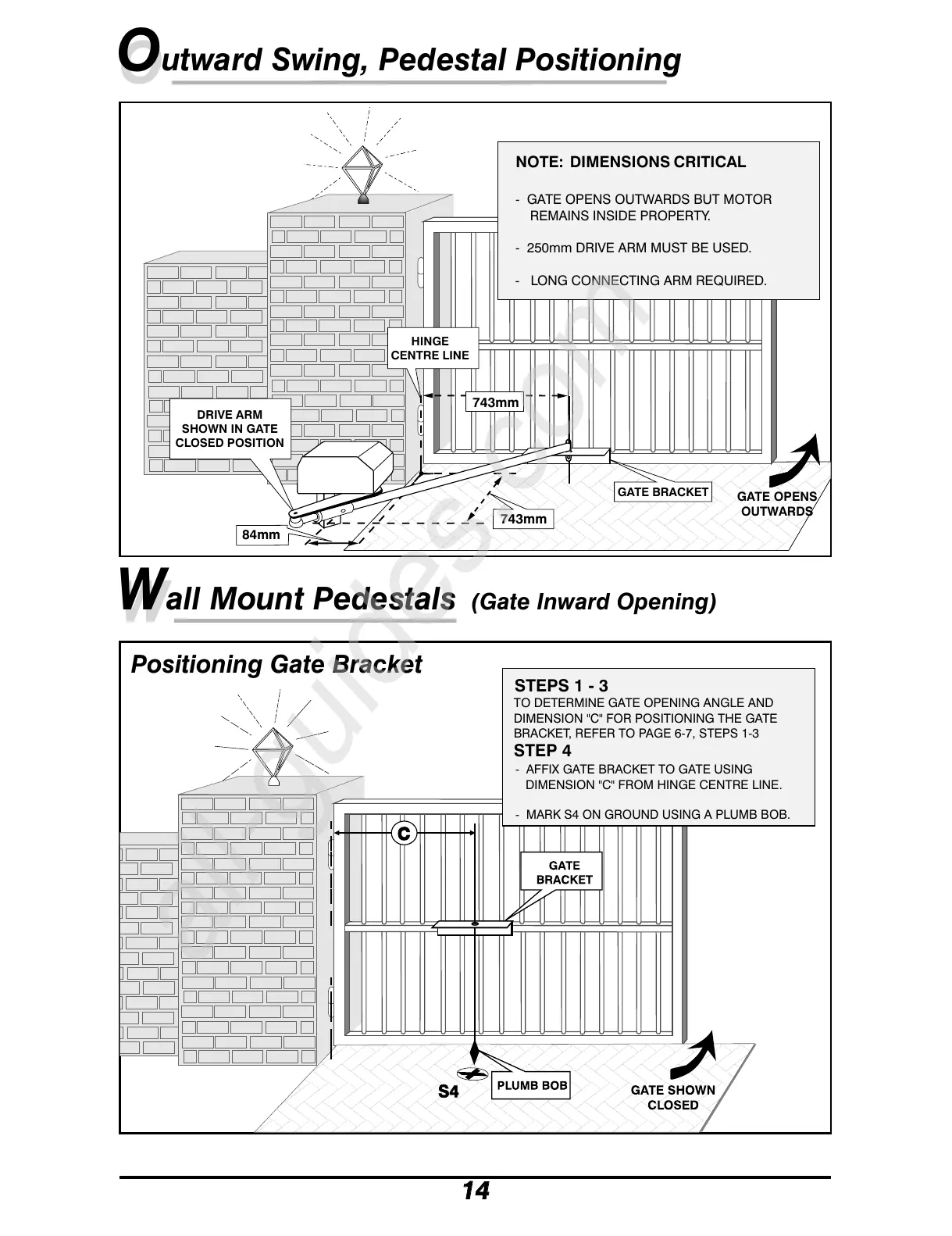

Outward Swing, Pedestal Positioning
GATE OPENS
OUTWARDS
Positioning Gate Bracket
W
Wall Mount Pedestals
(Gate Inward Opening)
GATE BRACKET
HINGE
CENTRE LINE
743mm
84mm
743mm
O
NOTE: DIMENSIONS CRITICAL
- GATE OPENS OUTWARDS BUT MOTOR
REMAINS INSIDE PROPERTY.
- 250mm DRIVE ARM MUST BE USED.
- LONG CONNECTING ARM REQUIRED.
DRIVE ARM
SHOWN IN GATE
CLOSED POSITION
1414
STEP 4
- AFFIX GATE BRACKET TO GATE USING
DIMENSION "C" FROM HINGE CENTRE LINE.
- MARK S4 ON GROUND USING A PLUMB BOB.
STEPS 1 - 3
TO DETERMINE GATE OPENING ANGLE AND
DIMENSION "C" FOR POSITIONING THE GATE
BRACKET, REFER TO PAGE 6-7, STEPS 1-3
