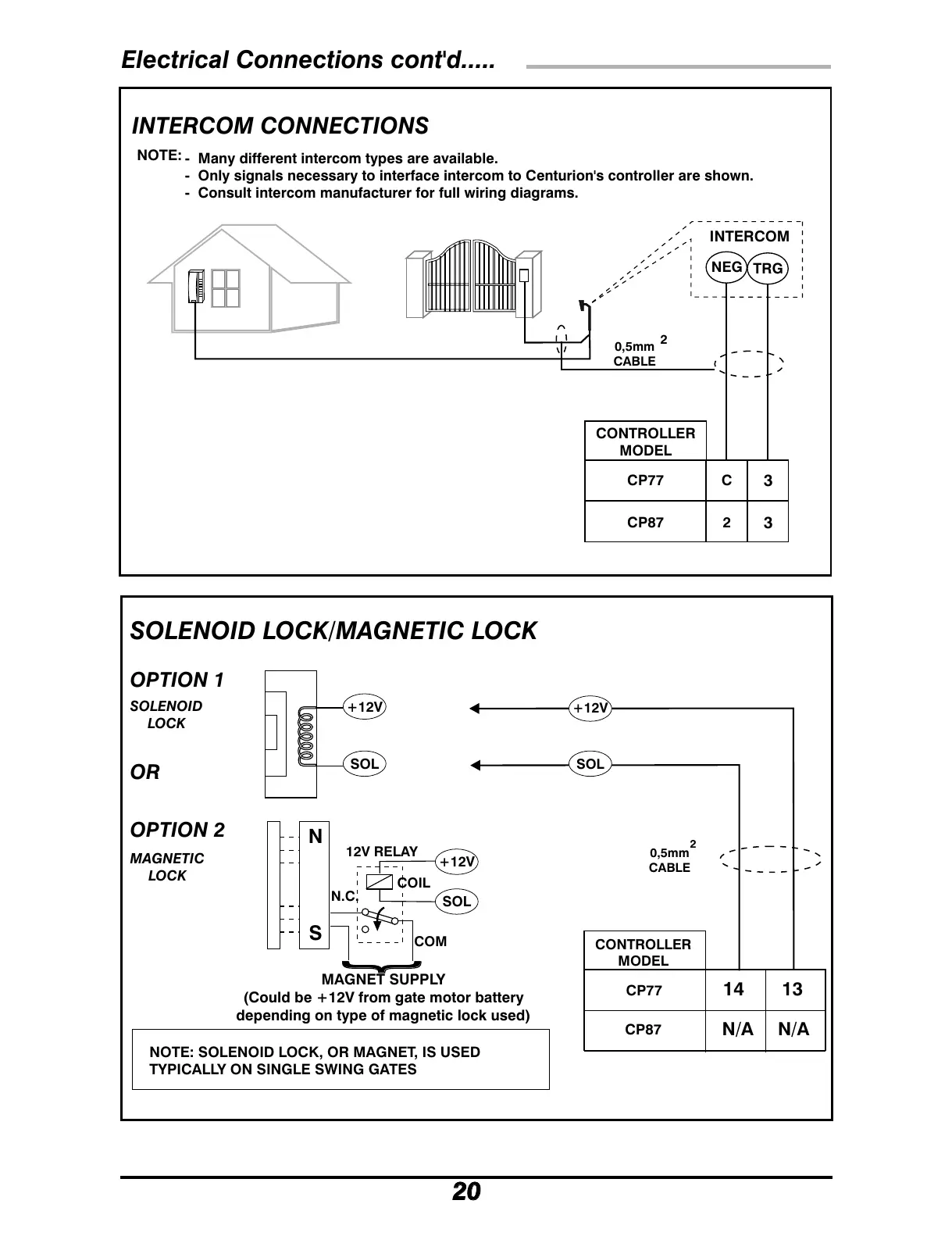

Centurion Maxi-Mate - Accessory Connections

Electrical Connections cont'd.....
2020
NOTE:
- Many different intercom types are available.
- Only signals necessary to interface intercom to Centurion's controller are shown.
- Consult intercom manufacturer for full wiring diagrams.
0,5mm
CABLE
INTERCOM
2
CONTROLLER
MODEL
CP77
CP87
C
2
3
3
NEG
TRG
INTERCOM CONNECTIONS
NOTE: SOLENOID LOCK, OR MAGNET, IS USED
TYPICALLY ON SINGLE SWING GATES
OPTION 1
SOLENOID
LOCK
MAGNETIC
LOCK
OR
OPTION 2
0,5mm
CABLE
2
CONTROLLER
MODEL
CP77
MAGNET SUPPLY
(Could be +12V from gate motor battery
depending on type of magnetic lock used)
14 13
N/AN/A
CP87
SOLENOID LOCK/MAGNETIC LOCK
SOL
+12V
SOL
12V RELAY
COIL
COM
N.C.
SOL
+12V
+12V
N
S
}}
