page 15
www.centsys.com

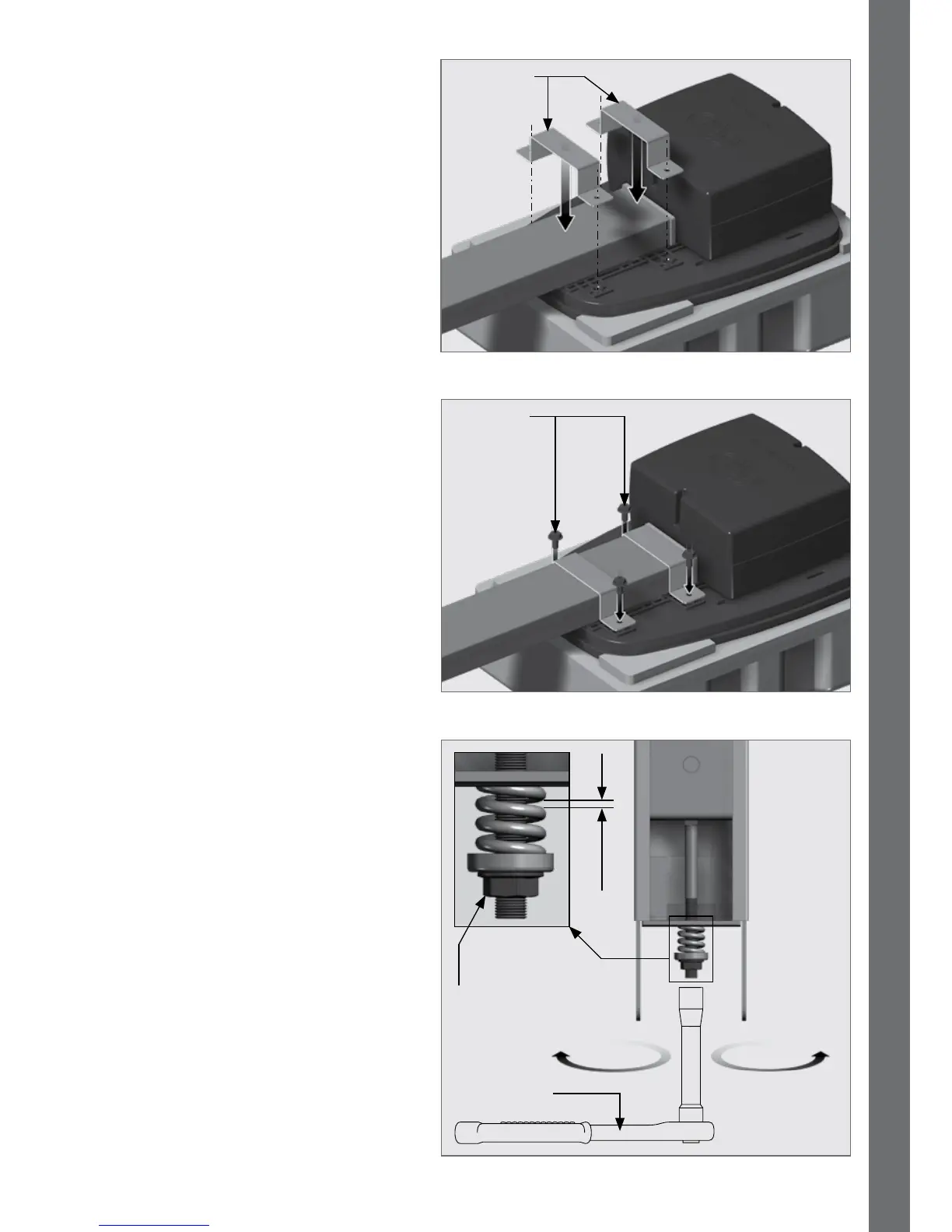

FIGURE 10
FIGURE 11
FIGURE 9
U-Brackets
M6x12mm
Screws
4. PlacethetwoU-Bracketsinto
position over the four holes found
on the head unit (Figure 9).
5. SecuretheU-Bracketsinto
position using 4x black M6x12mm
screws supplied (Figure 10).
The chain comes pre-tensioned
from the factory; however, ensure
that the spaces between the spring
windingsare0.5-1mm.Usea13mm
socket wrench to tighten the drive
should there, for whatever reason,
be a deviation from these values.
6.1.3. Tensioning the chain
End B
To relax the
drive chain
To tension the
drive chain
13mm Socket
wrench
Drive chain
tensioning
bolt
0.5-1mm
OPERATOR INSTALLATION SECTION 6
