SECTION 6
OPERATOR INSTALLATION

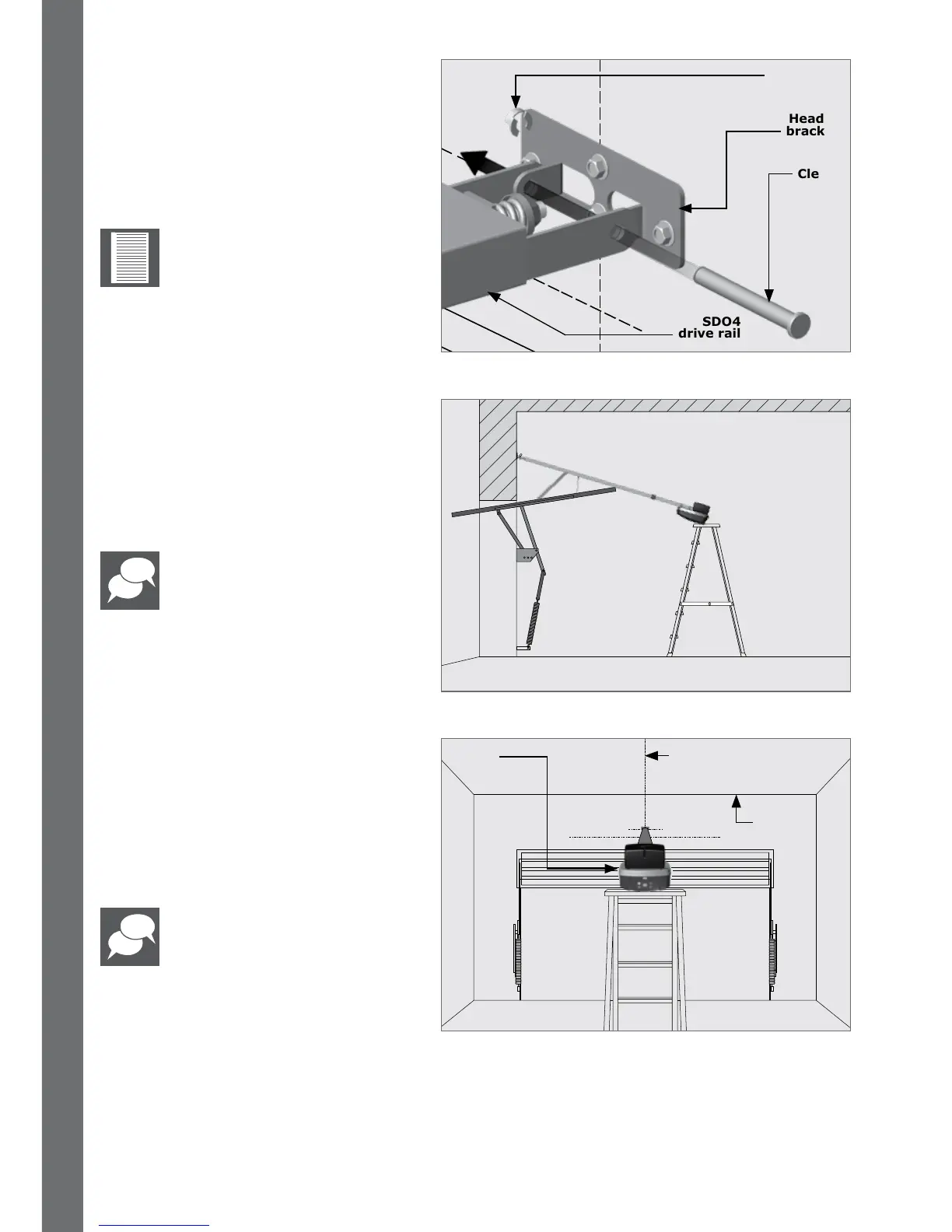

FIGURE 54
FIGURE 55
FIGURE 56
Header
bracket
Circle Clip
Clevis
pin
SDO4
drive rail
Open the garage door, and gently
rest the SDO4 on top of the open
door.
If your ladder is high
enough, we recommend
resting it on top of the
ladder.
Find the center line of the garage
door, and mark it on the ceiling
above the location of the drive rail
hanger.
YoucanusetheSDO4 drive
rail as a gauge to assist you
if necessary.
Garage door center lineSDO4
Ceiling
6.2.2.3. Mounting the SDO4
drive rail to the ceiling
Locate the long clevis pin through
the holes and secure it into position
with a supplied Circle Clip on the
other end of the clevis pin.
Dowel split pins have also
been supplied should they
be preferred over the use of
the circle pin clips.
