OPERATOR INSTALLATION SECTION 6

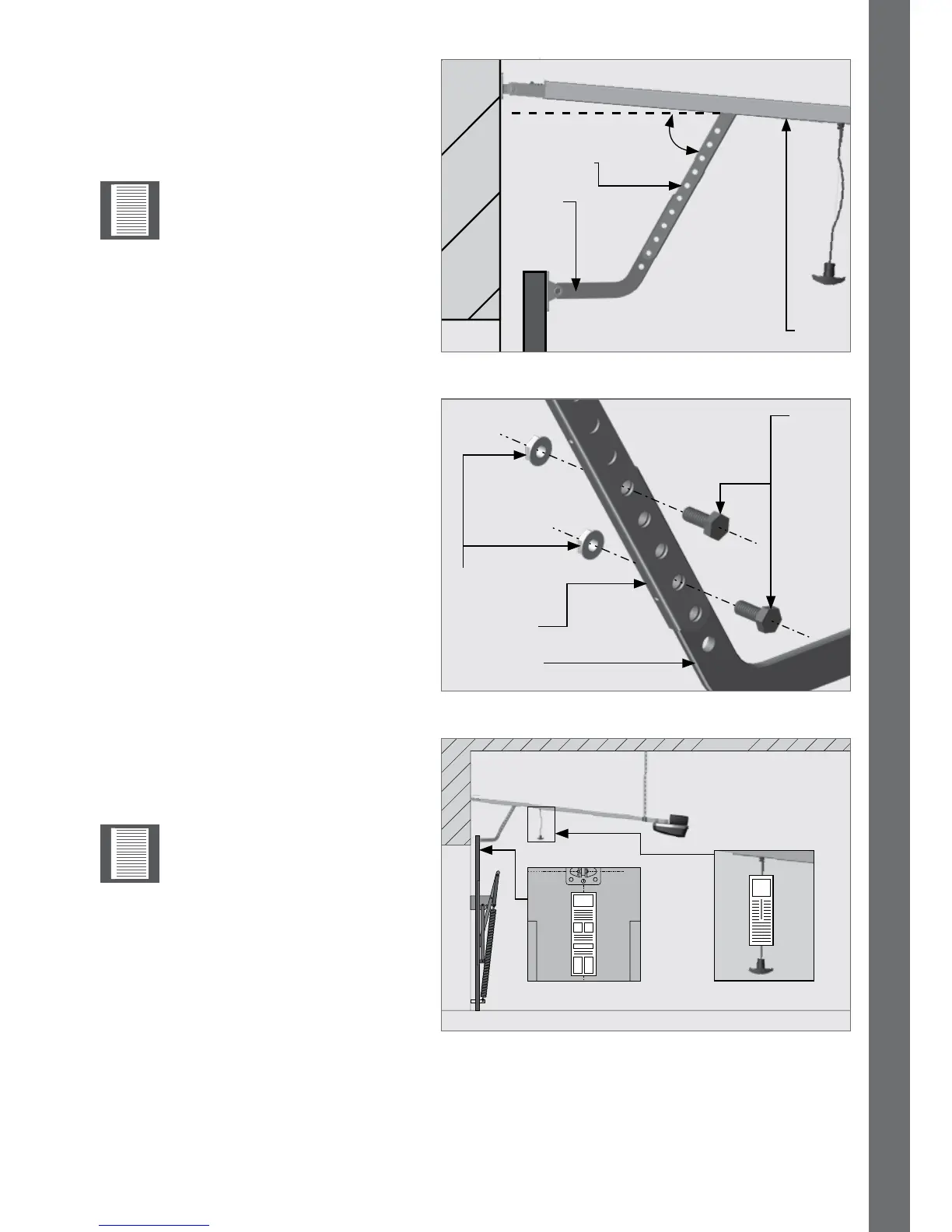

FIGURE 73
FIGURE 74
FIGURE 75
Once aligned, secure them into
position using two supplied
hexagonalheadangenutsand
bolts: one set through the bottom
hole of the straight towing arm,
and the other through the top hole
of the bent towing arm.
The two towing arms must
bejoinedinsuchaway
thattheyarejustshortof
parallel to the garage door
and the ceiling.
Angle‘Z’shouldbe±80°
when the garage door
is in the closed position,
as shown in Figure 73.
This will put less strain
on the motor on start-up
and, furthermore, aid in
preventing the garage door
from being forced open by
hand.
The SDO4 is now installed
and ready for programming.
Pleasedonotforgettoax
the safety sticker and tag.
Warning Sticker Tag
Z
SDO4
Straight
towing arm
Bent
towing
arm
Straight
towing arm
Bent towing
arm
M8 Flange
nuts
M8x20
Flange
bolts
