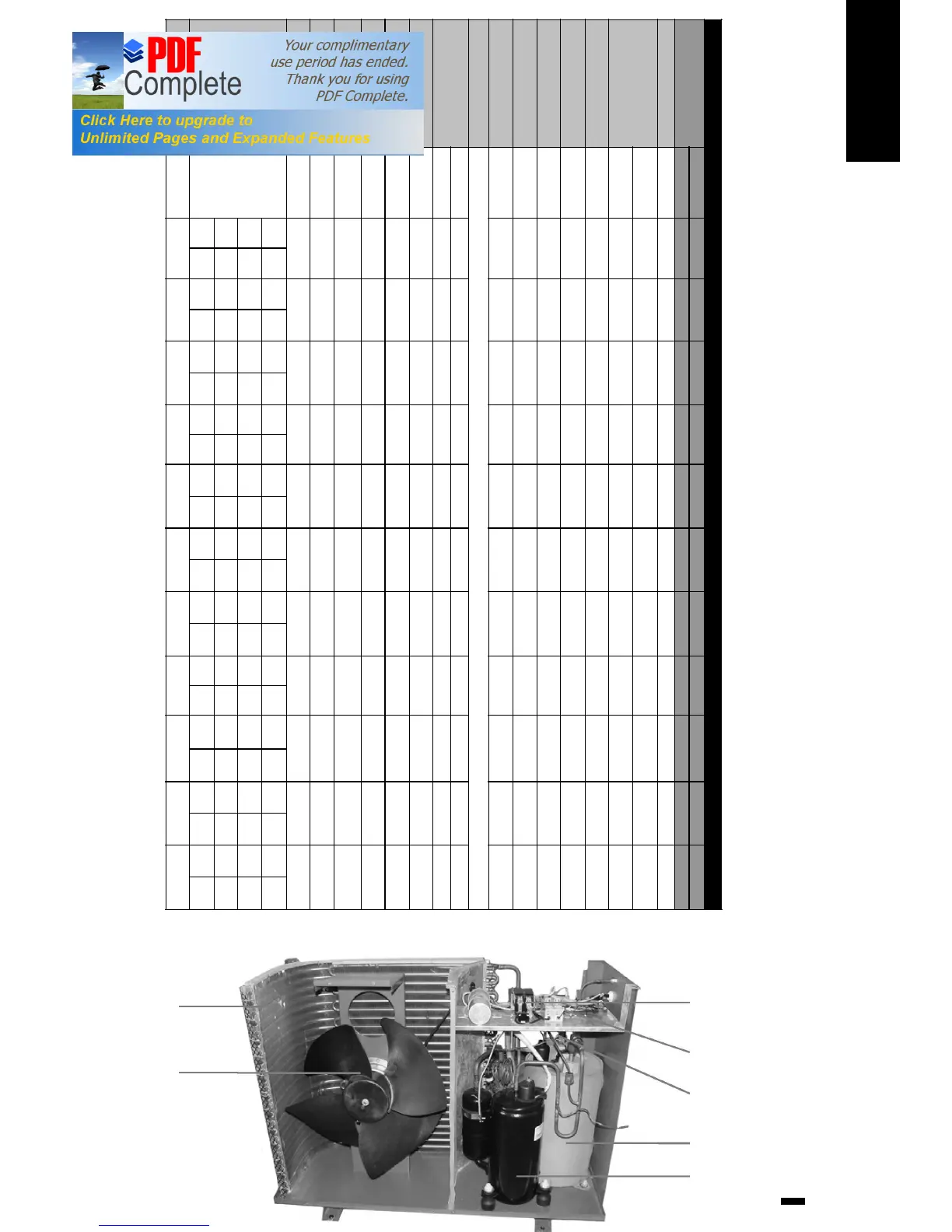

B. Description of its interior
Circuit board
Evaporator
Connection
terminals
Fan engine
Temperature
probe
Titanium
condenser
Compressor
13
BLP / BLY HEAT PUMP
MODEL
(1)
HPP040 HPP050 HPP090 HPP110 HPP140 HPP171 HPP173 HPP211 HPP213 HPP253 HPP313
(2)
HPHC004 HPHC005 HPHC009 HPHC011 HPHC013 HPHC017 HPHC017T HPHC021 HPHC021T HPHC025T HPHC031T
DATA
CV 1/2HP 1HP 2HP 2,5HP 3HP 4HP 4HP 5HP 5HP 6HP 6HP
POWER OUTPUT
BTU/H
10200 14000
29000
34000 45000
58000 58000 72000 72000 85000 105000
W 3000
4200
8500
11500 13500
17000 17000 21000 21000 25000 31000
POWER INPUT
W 600
850
1700
2300 2300
3500 3500 4500 4500 5500 6500
EFFICIENCY
COP 5,0 5,0 5,0 5,0 5,0 4,9 4,9 4,7 4,7 4,55 4,75
NOMINAL CURRENT
A 2,8 4,1 8,3 9,2 12,0 16,0 6,0 21 7,8 9,6 10,2
VOLTAGE / FREQUENCY
V/Ph/Hz 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 380/3/50 230/1/50 380/3/50 380/3/50 380/3/50
COMPRESSOR TYPE
1 unit ROTARY ROTARY ROTARY ROTARY ROTARY SCROLL SCROLL SCROLL SCROLL SCROLL SCROLL
HEAT EXCHANGER
TITANIUM
REFRIGERANT (kg)
(1) R410A 0,45 0,70 1,25
1,4 1,55
2,2 2,2 2,75 2,75 3,25 3,45
(2) R407C 0,5 0,75 1,3
1,45 1,6
2,25 2,25 2,8 2,8 3,3 3,5
FAN POWER INPUT
W 1x15 1x20 1x45 1X95 1x95 1x120 1x120 1x200 1x200 1x200 1x200
FAN ROTATE SPEED
RPM 850 850 850 850 850 850 850 850 850 850 850
NOISE LEVEL
dB ≤47 ≤47 ≤51 ≤55 ≤58 ≤58 ≤58 ≤58 ≤58 ≤58 ≤58
WATER CONNECTION
mm 50 50 50 50 50 50 50 50 50 50 50
WATER FLOW
m3/h ≥4,0 ≥4,0 ≥5,0 ≥6,0 ≥7,5 ≥7,5 ≥7,5 ≥9,0 ≥9,0 ≥9,0 ≥9,0
WATER PRESSURE LOSS
kPa 10 10 10 12 12 12 12 12 12 12 12
NET DIMENSION
MODEL
cm
(1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2) (1) (2)
LENGTH
91 73,5 91 73,5 91 91 91 91 91 91 110 110 110 110 110 110 110 110 110 110 110 110
WIDTH
36 34,5 36 34,5 36 38 36 38 36 38 46 48 46 48 46 48 46 48 46 48 46 48
HEIGHT
65 50 65 50 65 65 65 65 65 65 95 95 95 95 95 95 95 95 95 95 95 95
WEIGHT NET
Kg 34 38 70 75 75 97 97 110 110 115 118
