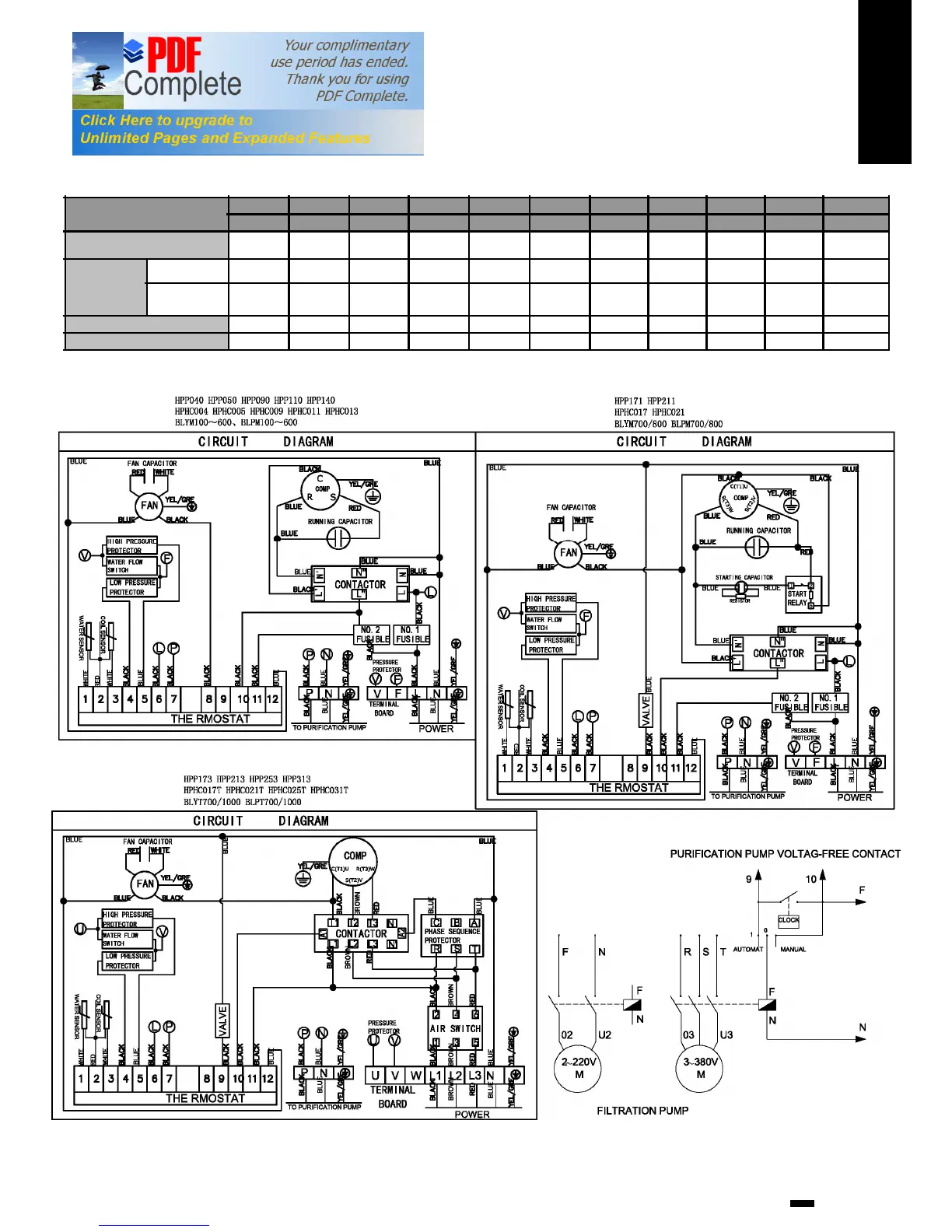

Certikin HPP040 - Wiring Diagram and Controller Operation

BLP / BLY HEAT PUMP
english
conditions.
· The acceptable tolerance to voltage fluctuation is +/- 10% during operation.
15
MODEL
HPP040 HPP050 HPP090 HPP110 HPP140 HPP171 HPP173 HPP211 HPP213 HPP253 HPP313
HPHC004 HPHC005 HPHC009 HPHC011 HPHC013 HPHC017 HPHC017T HPHC021 HPHC021T HPHC025T HPHC031T
VOLTAGE / FREQUENCY
(V/Ph/Hz)
230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 230/1/50 380/3/50 230/1/50 380/3/50 380/3/50 380/3/50
SHORT CIRCUIT
PROTECTION
DEVICE
NOMINAL
CURRENT
2,5 A 3,8 A 8,3 A 9,2 A 12,0 A 16,0 A 6,0 A 21 A 7,8 A 9,6 A 10,2 A
RESIDUAL
CURRENT
LIMIT
20mA 25mA 30mA 35mA 45 mA 60 mA 25 mA
100
mA
35 mA 40 mA 45 mA
FUSE GAUGE 16 A 16 A 20 A 32 A 32 A 40 A 20 A 60 A 20 A 20 A 25 A
SUPPLY GAUGE 3 x 1,0 3 x 1,0 3 x 2,5 3 x 2,5 3 x 2,5 3 x 4 5 x 2,5 3 x 4 5 x 2,5 5 x 2,5 5 x 2,5
