Cerwin-Vega CVE-10 User Manual

CERWIN-VEGA PROFESSIONAL
14
Application #3 – Connecting a CVE-18s to a CVE-10, CVE-12, or CVE-15 using Channel
Outputs

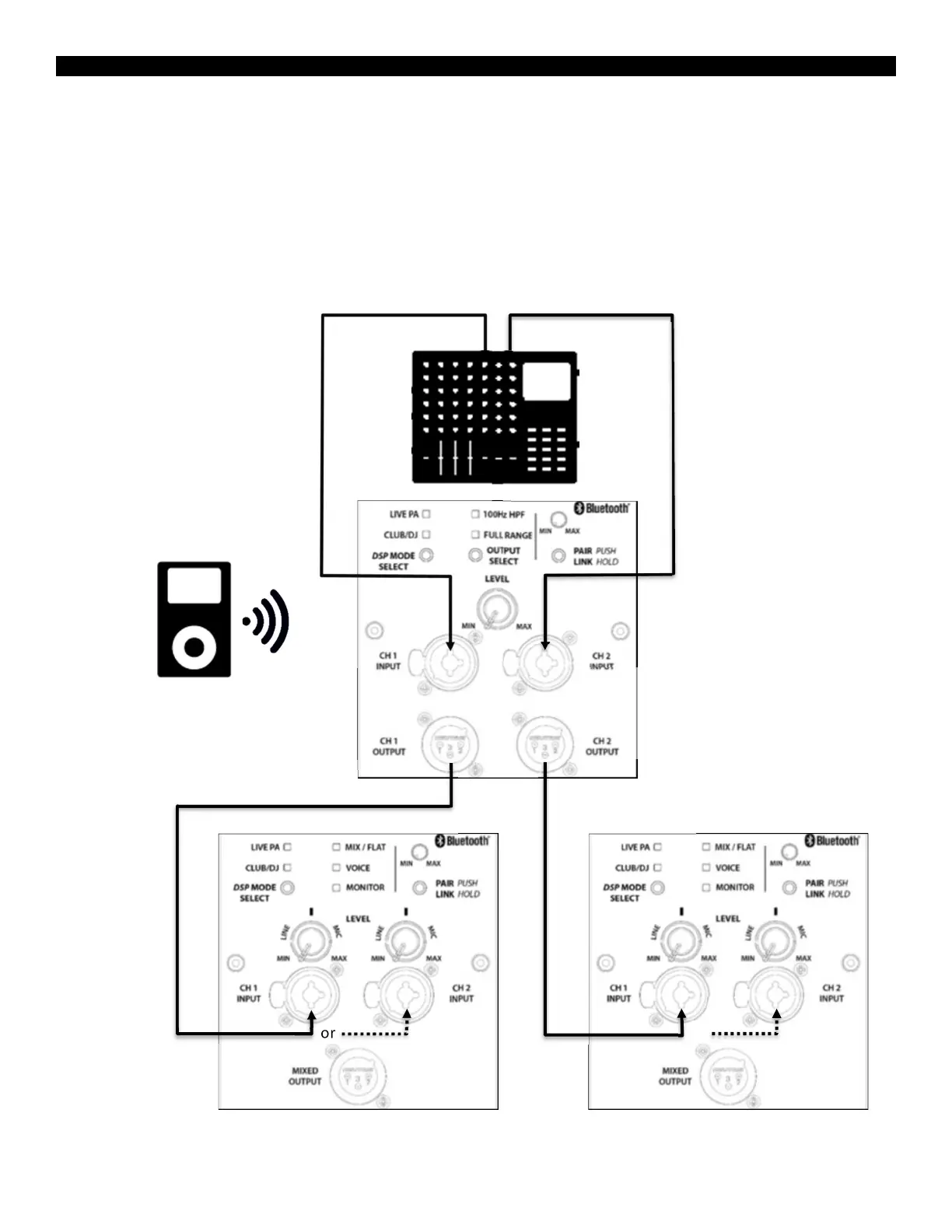

For demanding applications where even greater bass response is required, a CVE-18s subwoofer can be added to your
CVE-10, CVE-12, or CVE-15 pair. In the diagram below, a line mixer is connected to CH 1 INPUT and CH 2 INPUT of the
CVE-18s while a Bluetooth™ device is streaming audio. The signal is then sent through the CVE-18s CH 1 OUTPUT and CH
2 OUTPUT into CH 1 INPUT (or CH 2 INPUT) of each of the CVE tops. The CVE-18s is equipped with the option of sending
these signals FULL RANGE or through a 100Hz High Pass Filter.
or
or

Cerwin-Vega CVE-10 Specifications

General

Speaker type	-
Speaker position	Front
Speaker placement	Floor
Audio output channels	- channels
Number of woofer drivers	1
Woofer diameter (imperial)	10 \
Amplifier class	D
Product color	Black
Frequency range	50 - 23000 Hz
RMS rated power	1000 W
XLR in	Yes
Connectivity technology	Wired & Wireless
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	286 mm
Width	330 mm
Height	559 mm
Weight	13150 g
