CERWIN-VEGA PROFESSIONAL
8

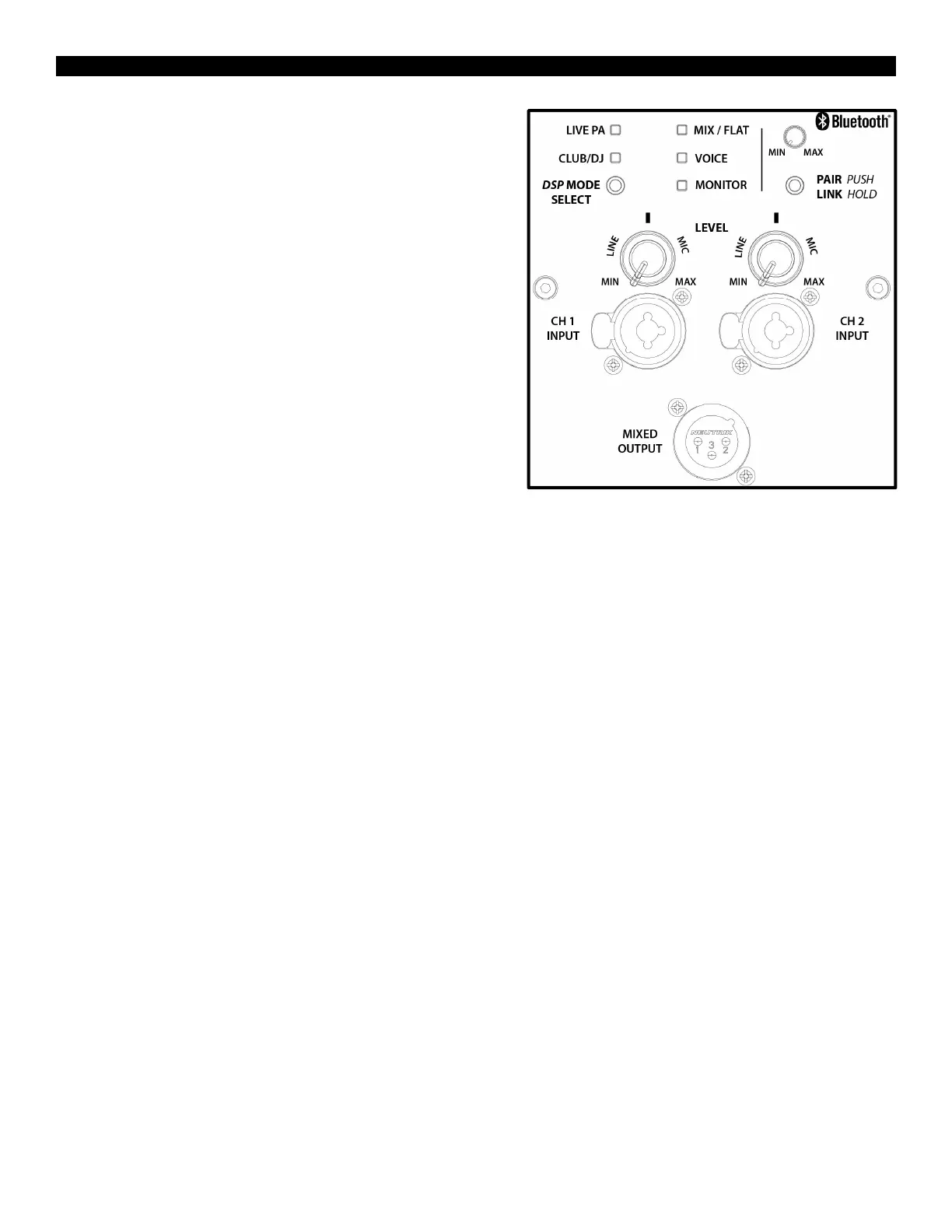

Rear Panel – Mixer – CVE-10, CVE-12, CVE-15
DSP MODE SELECT
This mode selection button allows one of five EQ presets
to be chosen:
LIVE PA – This mode is best used for live music sound. It
has a deeper, more-balanced low-end response.
CLUB/DJ – This mode adds definition and punch to sub
frequencies. It is primarily used for playback of music
styles such as EDM, pop, and hip hop.
MIX/FLAT – This provides a well-balanced overall speaker
response with deeper low-end extension. This mode is a
great starting point for mixing live events.
VOICE – This mode enhances vocal clarity and is best used
when using a common dynamic microphone connected
directly into one of the CH inputs.
MONITOR – Use this mode when using the system as a
stage monitor with a microphone. It balances and softens
frequencies that are prone to feedback in a monitor mix.
BLUETOOTH
The CVE series has True Wireless Stereo (TWS) Bluetooth connectivity. To pair a CVE speaker with a streaming
device, push the PAIR/LINK button once. When the PAIR/LINK button begins flashing blue, the speaker will beep
twice and appear in the available Bluetooth devices list on the streaming device. After the speaker is selected and
successfully paired, it will beep once, and the PAIR/LINK button will be lit blue.
To link two CVE speakers together, push and hold the PAIR/LINK button on the first speaker (that has already
been paired with the streaming device). When its PAIR/LINK button begins flashing orange, the first speaker will
beep twice. Then, push and hold the PAIR/LINK button on the second speaker. The PAIR/LINK buttons on both
speakers will blink orange for approximately five seconds before turning solid orange; this indicates that both
speakers are successfully paired and linked to your streaming device. Once linked, the speakers can be toggled
between mono and stereo by double-tapping the PAIR/LINK button on either speaker while audio is playing.
Note: The Bluetooth level knob adjusts the level of the Bluetooth audio input. Beeps will be heard only if the
Bluetooth level is turned up. CVE speakers cannot be paired, unpaired, or linked while audio is playing.
CH1 INPUT and CH2 INPUT
These are balanced combo inputs for balanced XLR/TRS cables. They accept line-level and mic-level inputs.
LEVEL
The LEVEL knobs for CH1 INPUT and CH2 INPUT adjust the gain levels for their respective input signals. They can
be used for LINE-level or MIC-level inputs. LINE levels are adjusted from MIN (fully counterclockwise) to the center
detent (straight up). MIC levels are adjusted from the center detent (straight up) to MAX (fully clockwise).
MIXED OUTPUT
This output combines CH1 INPUT, CH2 INPUT, and Bluetooth signals for connecting to another powered speaker
or a recording device. This output is affected by changes to each channel’s LEVEL knob.
