Repair manual: Hydraulic system 6000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D

Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-

15.4 Hydraulic connections 6230

15.4.1 Quick change connectors

Connecting the quick change connector

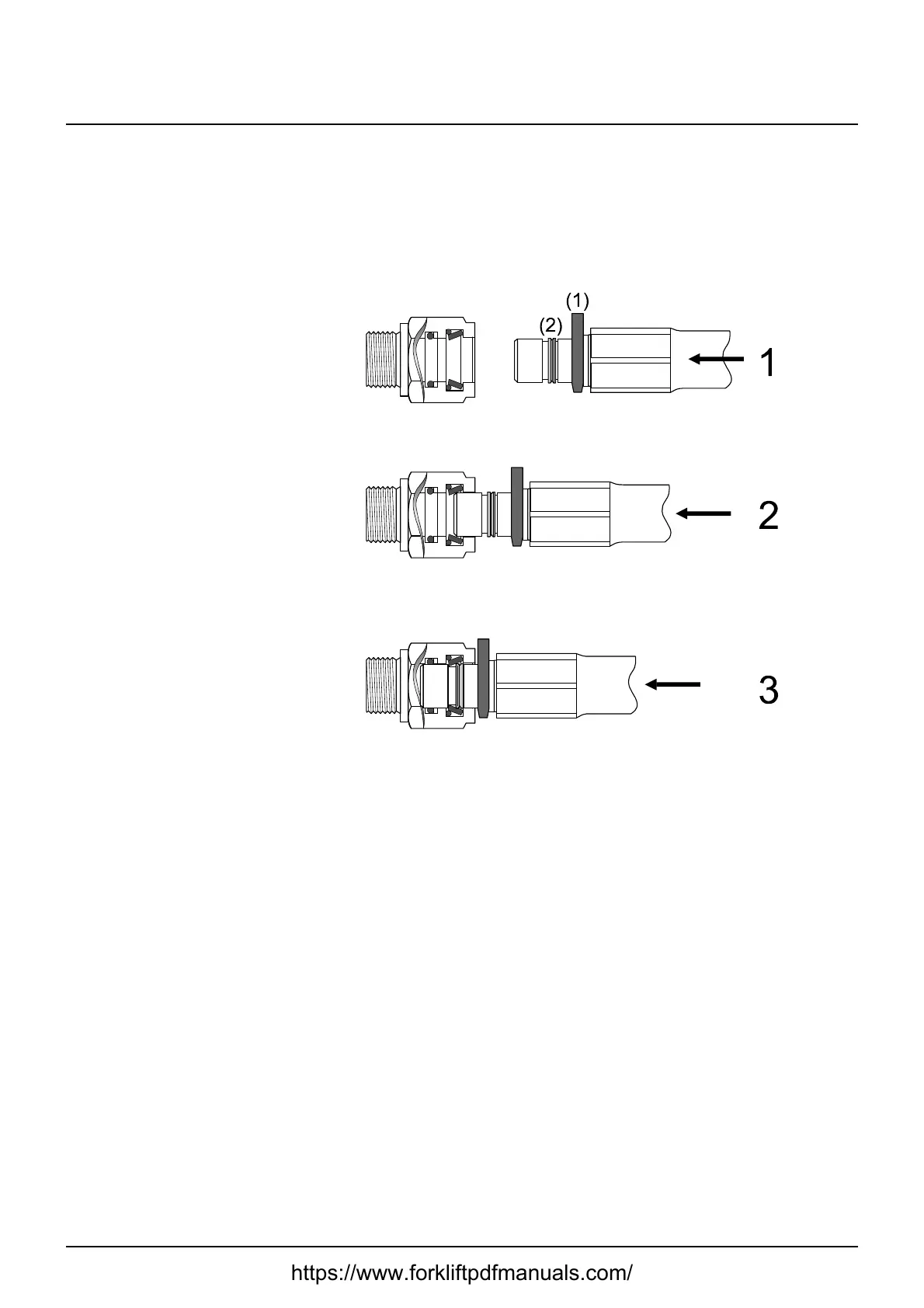

1. Place the assembly stop (1) on the male fitting and make sure that

the dismantling ring (2) runs freely in the groove.

2. Push the male fitting into the female fitting until the assembly stop

makes contact with the female fitting.

3. The coupling is now made and locked.
