CESAB S212 - 16.3 Main lift chain system 7120; 16.3.1 General

© Cesab 16 – 4 T Code(s): 841, 842, 843
Repair manual: Mast C7000 Model(s): S210, S212, S212S, S212L, S214, S214L, S220D
Publication Number: 7588857-040 Date: 2018-05-01 Applies from serial number: 6384351-
16.3 Main lift chain system 7120
16.3.1 General
Note: Replacing the chain bolt
• When replacing the chain, be sure to also replace the chain bolt
• When the chain assembly with chain bolt is replaced, the counter nuts and
the cotter pin/safety cotter must be replaced at the same time.

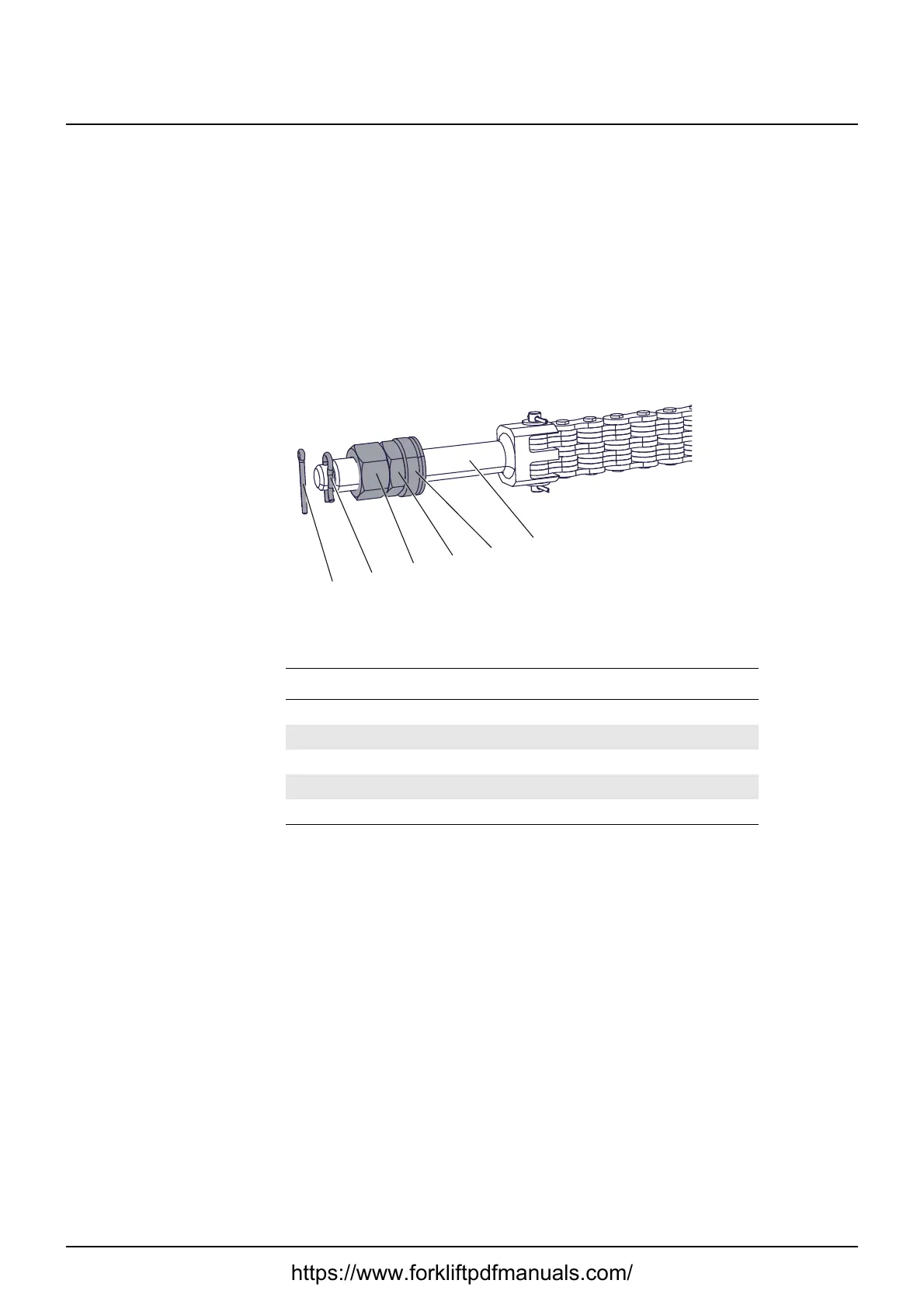

Pos. Description
a Cotter pin/safety cotter
b Wide locking nut
c Narrow locking nut
d Spherical washer
e Complete chain including anchor bolt
e
d
c
b
a
a
