Cessna 150K - Control Y Installation

2
1~
6
2
11
.
/
12
~ 13
18
NOTE
"2~ 15 "
2
When dual controls are installed, spacer (4)
is replaced with a universal joint to which
the right control wheel is attached.
Chains are to have minimum amount of tension
which will remove slack from chains.
• Use as required for maximum. 005 inch end
play per side.
* Left and right bolts are to be parallel.
17 16

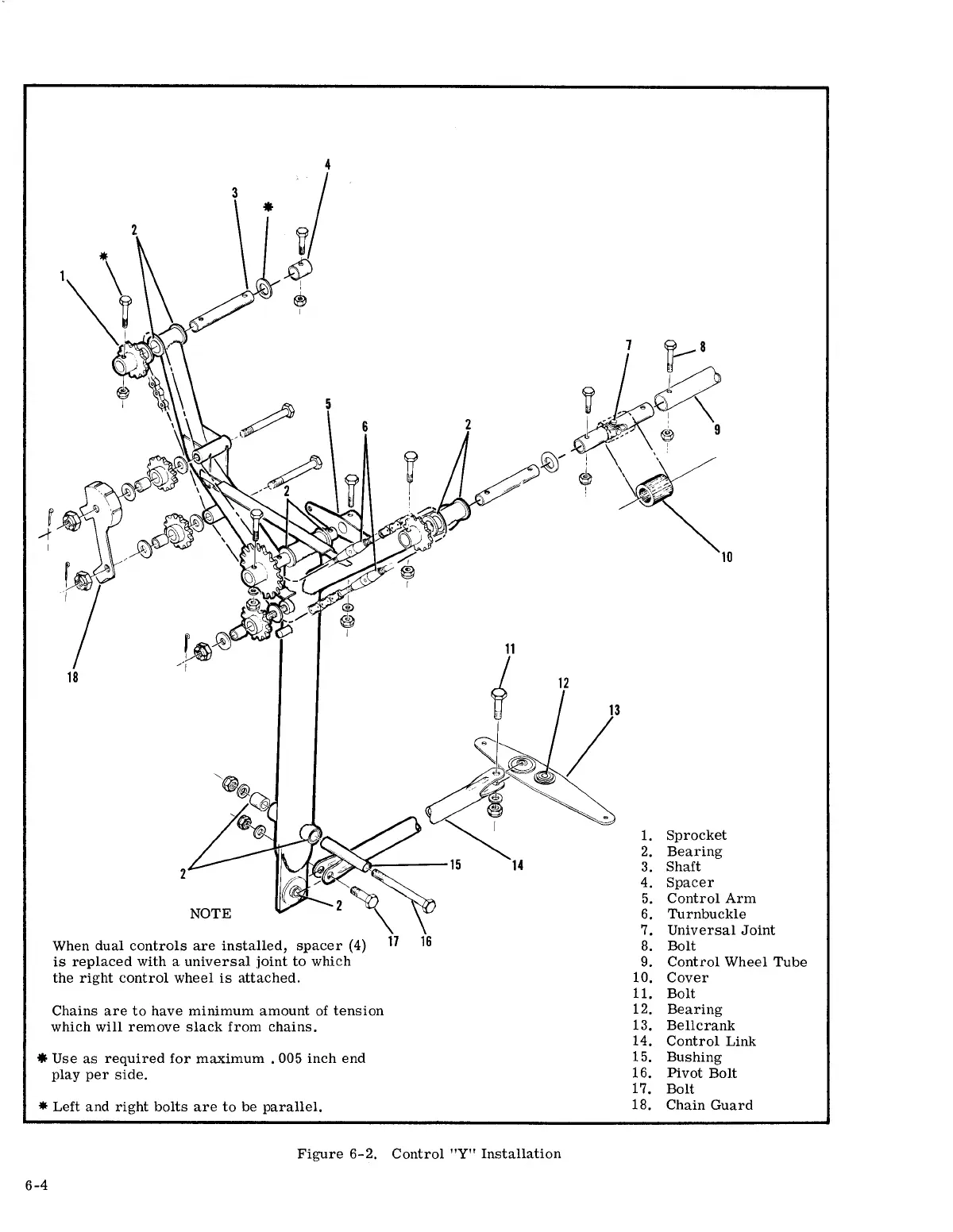

Figure 6-2. Control "Y" Installation
6-4
7
I.
2.
3.
4.
5.
6.
7.
8.
9.
10.
II.
12.
13.
14.
15.
16.
17.
18.
10
Sprocket
Bearing
Shaft
Spacer
Control Arm
Turnbuckle
Universal Joint
Bolt
Control Wheel Tube
Cover
Bolt
Bearing
Bellcrank
Control Link
Bushing
Pivot Bolt
Bolt
Chain Guard
