Cessna 150K - Propeller and Spinner Installation

6
1
9
\
NOTE
Use spacers (11) as required to obtain a
mismatch of one half hole between spinner
AIRCRAFT SERIALS 15069309 THRU 15072003
AND F15000390 THRU F15000658
~
TORQUE PROPELLER MOUNTING BOLTS TO
300-320 LB-IN THRU AIRCRAFT SERIALS
15071128 AND F15000529
TORQUE
PROPELLER MOUNTING BOLTS TO
300-360 LB-IN BEGINNING WITH AIRCRAFT
SERIALS 15071129, F15000530, A15000001
AND FA15000001
7
NOTE
This installation obsolete and no longer
available. Replaced by the installation
shown below. Refer to Cessna Service
Letters SE70-1 and SE71-28.
• AIRCRAFT SERIALS 15069309 THRU 15071710,
,F A15000001 THRU A15000149, F15000390 THRU
\ F15000595 AND FA15000001 THRU FA15000026
INSTALL PROPELLER TO TRAIL TOP DEAD
CENTER 30 DEGREES.
7
CRANKSHAFT (REF)
•
AIRCRAFT SERIALS 15071711 THRU 15072003,
A15000150 THRU A15000226,
F15000596 THRU
F15000658 AND FA15000027 THRU FA15000081
1. Screw 7.
2. Spinner (Standard) 8;
3. Bracket 9.
4. Propeller 10.
5. Washer 11.
Spinner Bulkhead (Rear)
Spinner Bulkhead (Forward)
Spinner (Early Type)
Spinner (Later Type)
Shim
and rear bulkhead before installing screws (1).
6. Bolt

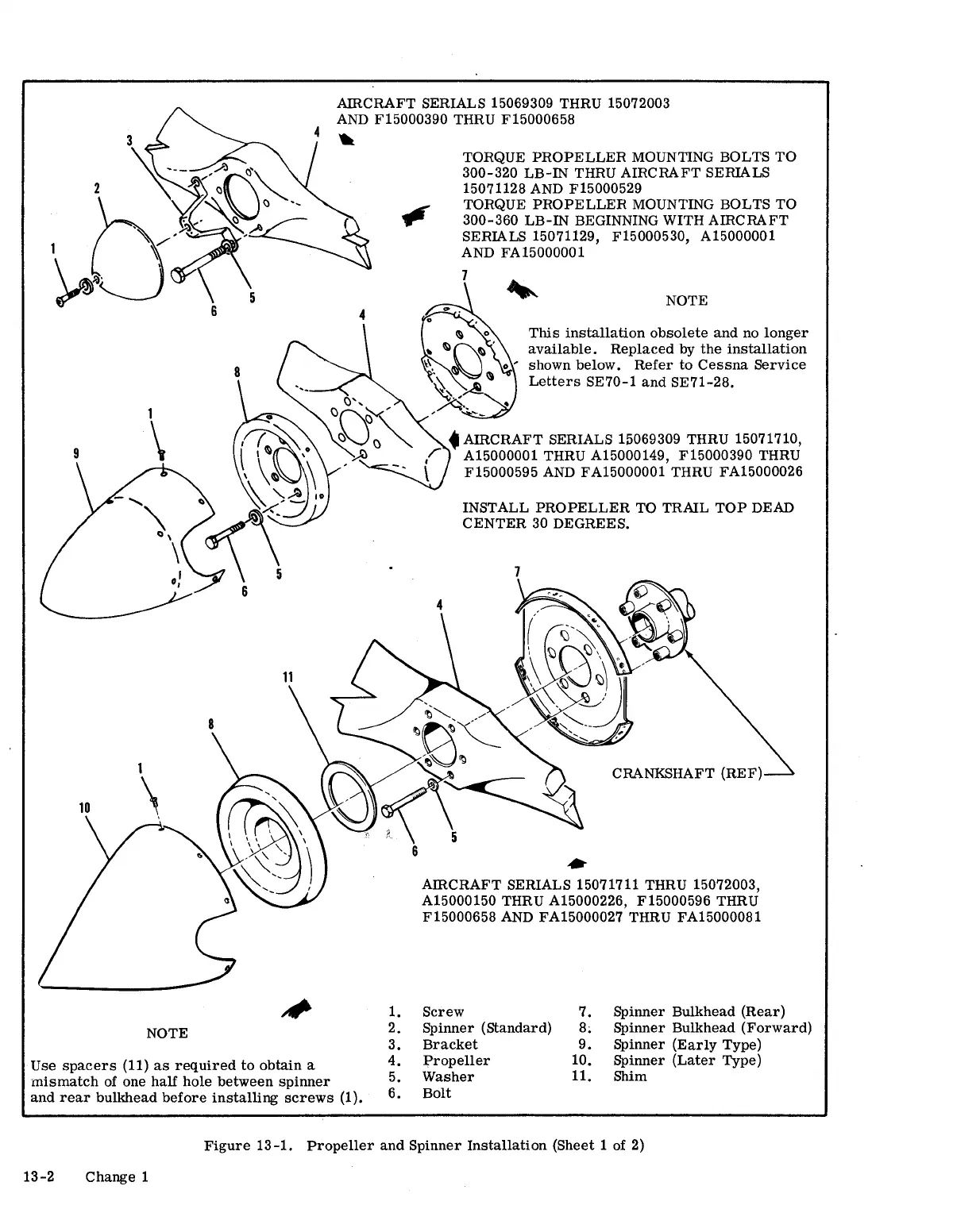

Figure 13-1. Propeller and Spinner Installation (Sheet 1 of 2)
13-2 Change 1
