NOTE
Do not
grease vacuum pump
spline upon installation.
/
~\
2
* AIRCRAFT SERIALS THRU
15072628 AND A15000276
AND EARLY F150 AND FA150
MODELS
Detail B
Detail A *
BEGINNING WITH
AIRCRAFT SERIAL
~ 15075549 A1500481
F15001l90 AND FA15000272
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
llA.
12.
13.
14.
'-'
*BEGINNING WITH 15077001,
A1500615 AND SOME LATER
FRENCH AIRCRAFT
Vacuum Pump
Overboard Line
Hose
Suction Gage
Gyro Horizon
Directional Gyro
Relief Valve
Adjustment Screw
Firewall "- ~
Wing Nut .. ~
Filter Element 3\:, ~!0 L
Filter Element (Throwaway) ~~ i, 9
Filter Bracket '!I
Sta-Strap
Tube
7
8
Detail A.

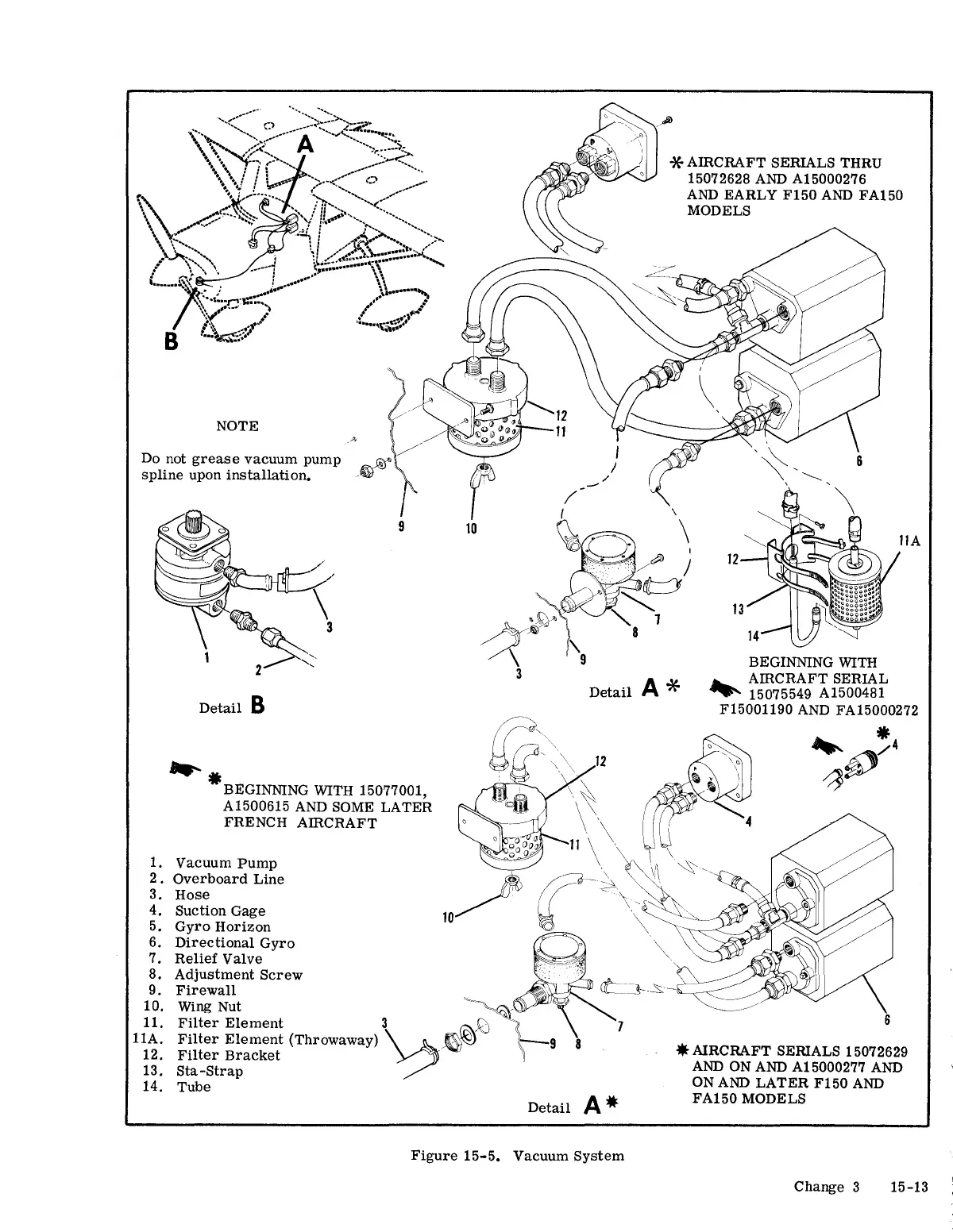

Figure 15-5. Vacuum System
...... -4
~~/
~
6
• AIRCRAFT SERIALS 15072629
AND
ON AND A15000277 AND
ON AND LATER F150 AND
FA150 MODELS
Change 3 15-13
